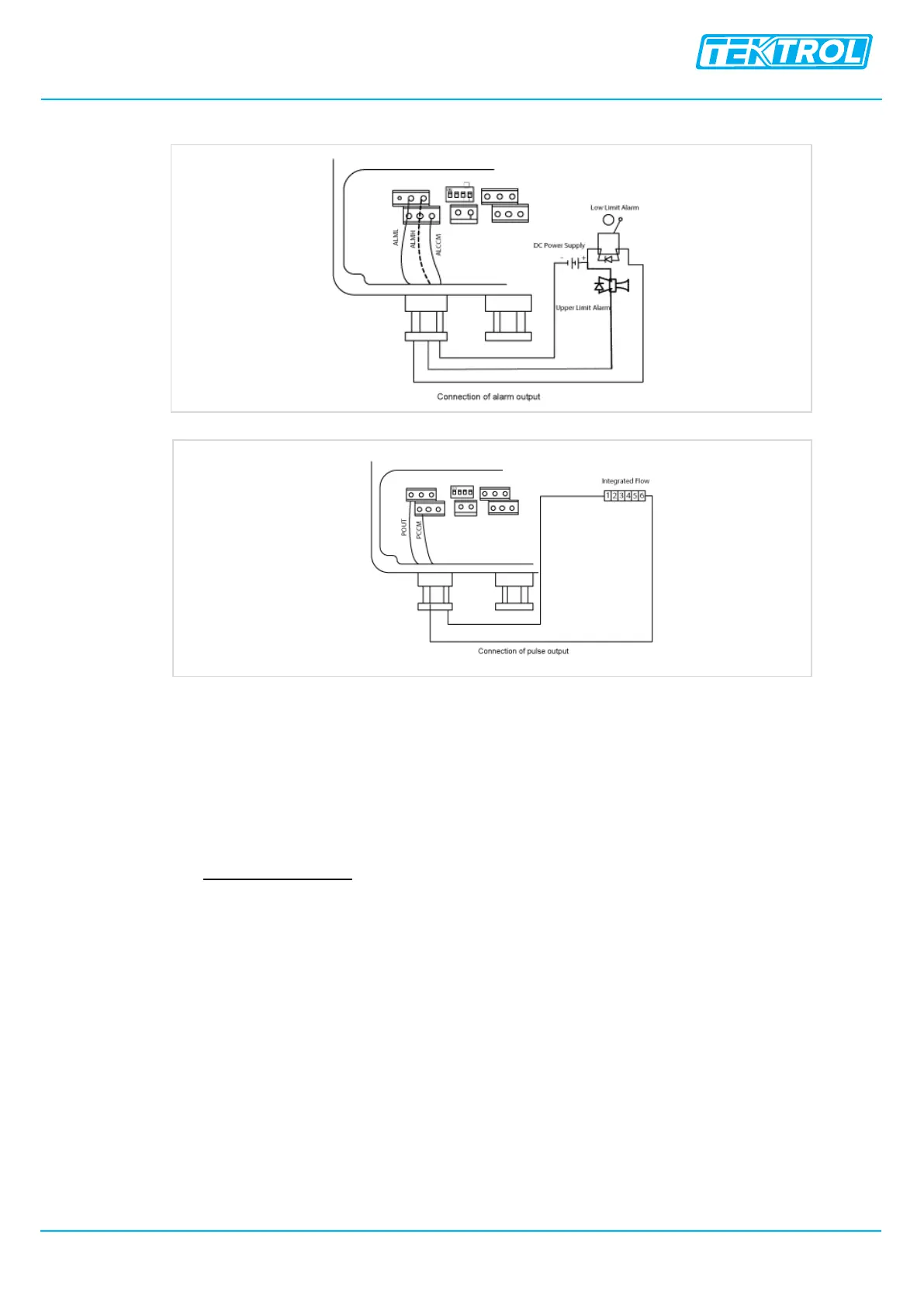

4.5 Digital Output
The transmitter has two output signals: frequency and pulse output. The user can
choose only one type of output.
4.5.1 Frequency Output
Frequency output range is 0 to 5000Hz, and corresponding the percent of flux.
=
×
The upper limit of the frequency output can be adjusted from 0 to 5000 Hz; the lower
frequency can be adjusted from 0 to 1000 Hz or 0 to 5000 Hz. The frequency output
mode can be used in the control application, because it corresponds to the percent of
flux. Users can choose pulse output when the equipment is applied to count mode.
