Appendix D: Application Note

1502C MTDR User Manual

D–9

Time vs. Long Distances, in Meters or Feet (any dielectric)

Distances to or between discontinuities farther apart than about three meters

(10 feet) can be found on the METERS and FEET scale. Use the sliding

ROUND TRIP TIME scale just below it and follow the same procedure as

above.

METERS FEET

ONE–WAY DISTANCE

TO OR BETWEEN FAULT, SPLICE,

CONNECTOR, LOAD, END, OR OTHER

IMPEDANCE DISCONTINUITY

20 30 40 50 60 70 80

DIELECTRIC

CONSTANT

ROUND

TRIP

TIME

VELOCITY

FACTOR

1.0 1.5 2.0 3 4 5 6

1.0 .8 .7 .6 .5 .4

00ns 150ns 200ns 300ns 500ns 700n

Dieletric is Solid

Time = 300 ns

Velocity Factor = .66

Distance is

30 m or 99 ft

Polyethylene

100 15

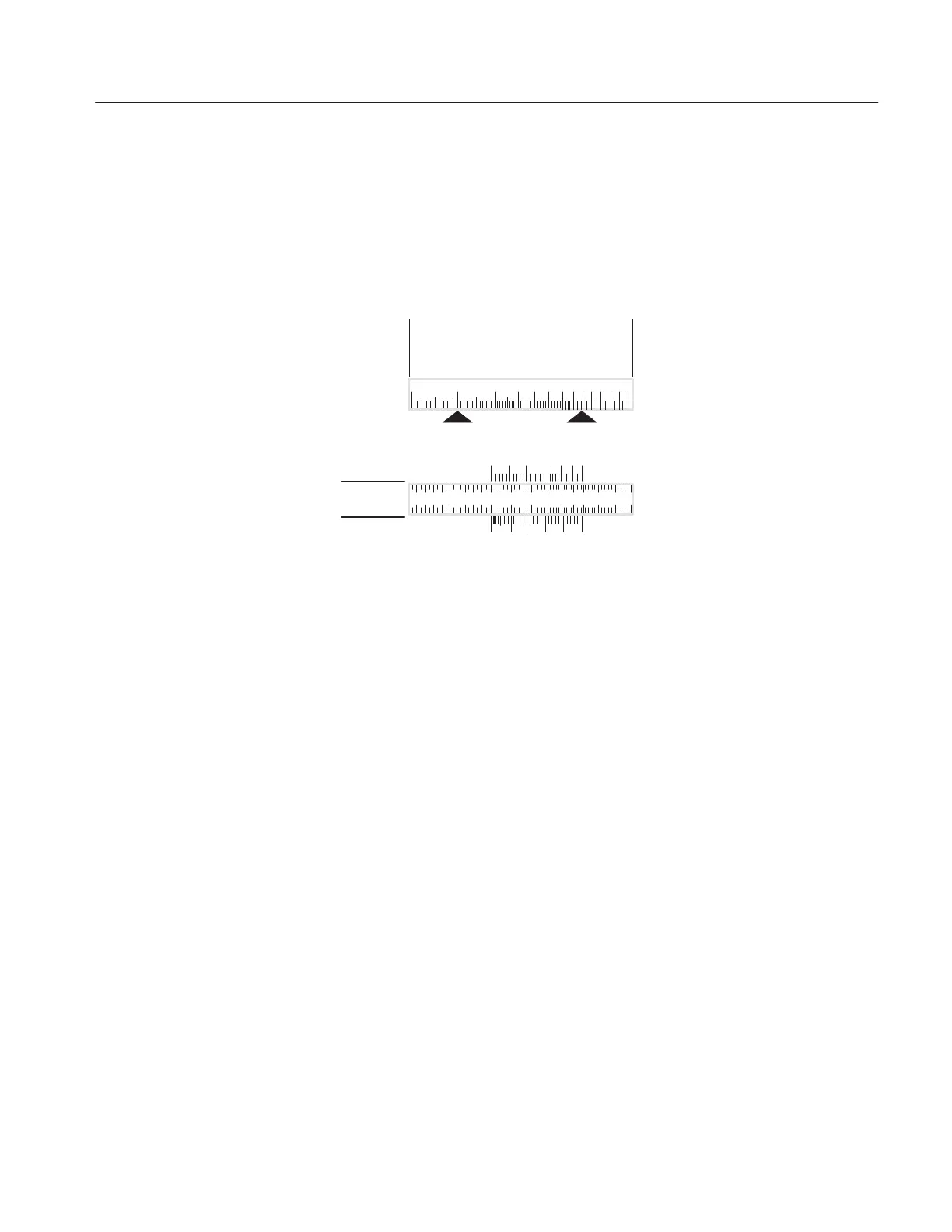

Figure D–8: Dielectric Constant and Velocity Factor, Long Distance
