VIEW INPUT
This push button allows you to view what is coming in the CABLE connector, or
to eliminate it from the display.
1. Set the 1502C front-panel controls to:
CABLE Attach 3-ft cable
NOISE FILTER 1 avg
VERT SCALE 500 mr
DIST/DIV 1 ft/div (0.25 m)
2. Press VIEW INPUT. The indicator block on the LCD should read OFF and
the waveform should disappear from the display.
O
F
F
O
F
F
O
F
F
ac 0.000 ft
O
F
F

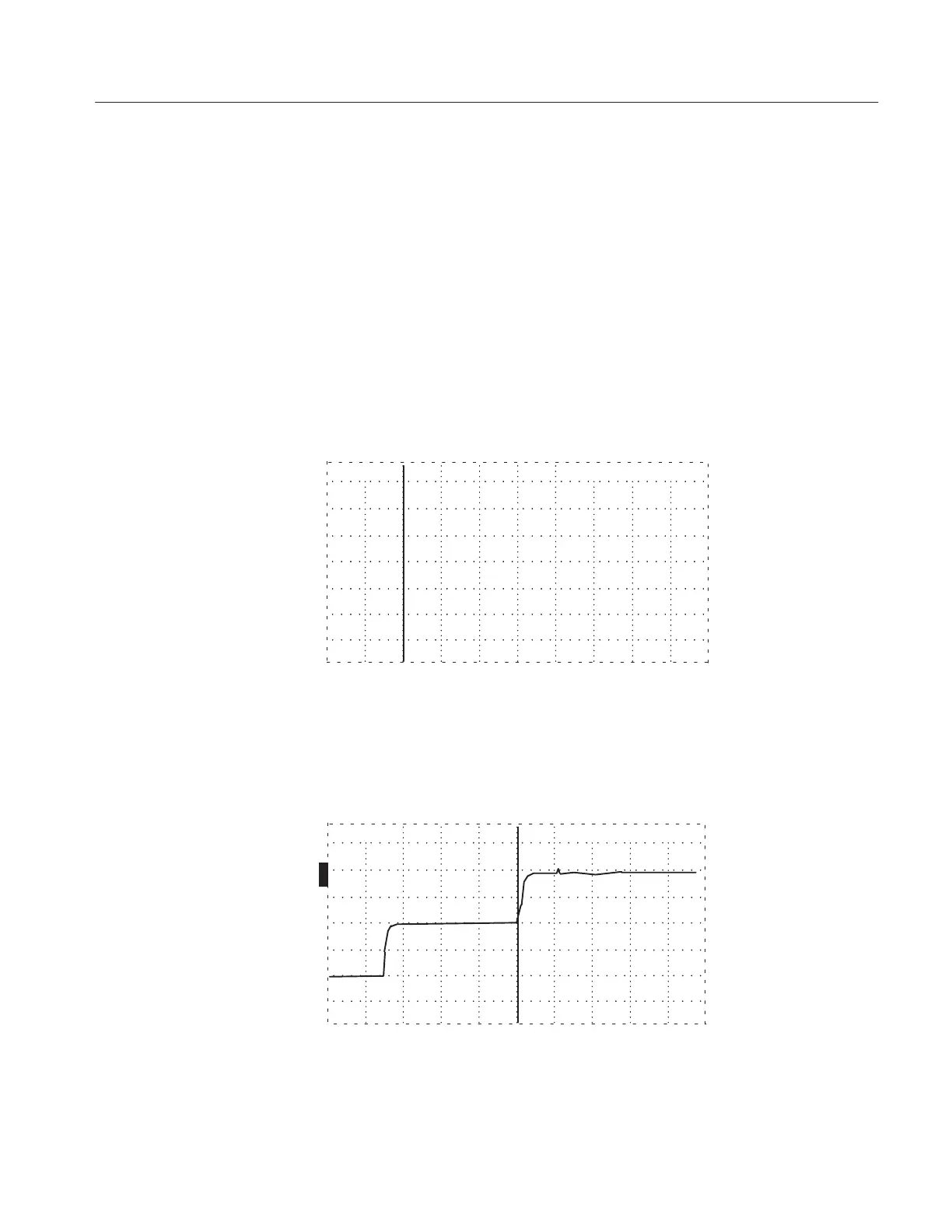

Figure 2–22: Display with VIEW INPUT Turned Off
3. Press VIEW INPUT again. The indicator block will reappear and the
waveform should be displayed again.
O
F
F
O
F
F
O
F
F
O
N
ac 0.000 ft
Figure 2–23: Display with VIEW INPUT Turned On
