Tektronix 1502C User Manual

Operator Tutorial
1502C MTDR User Manual
2–19
O
F
F
O
N
ac 0.000 ft
O
N
O
F
F

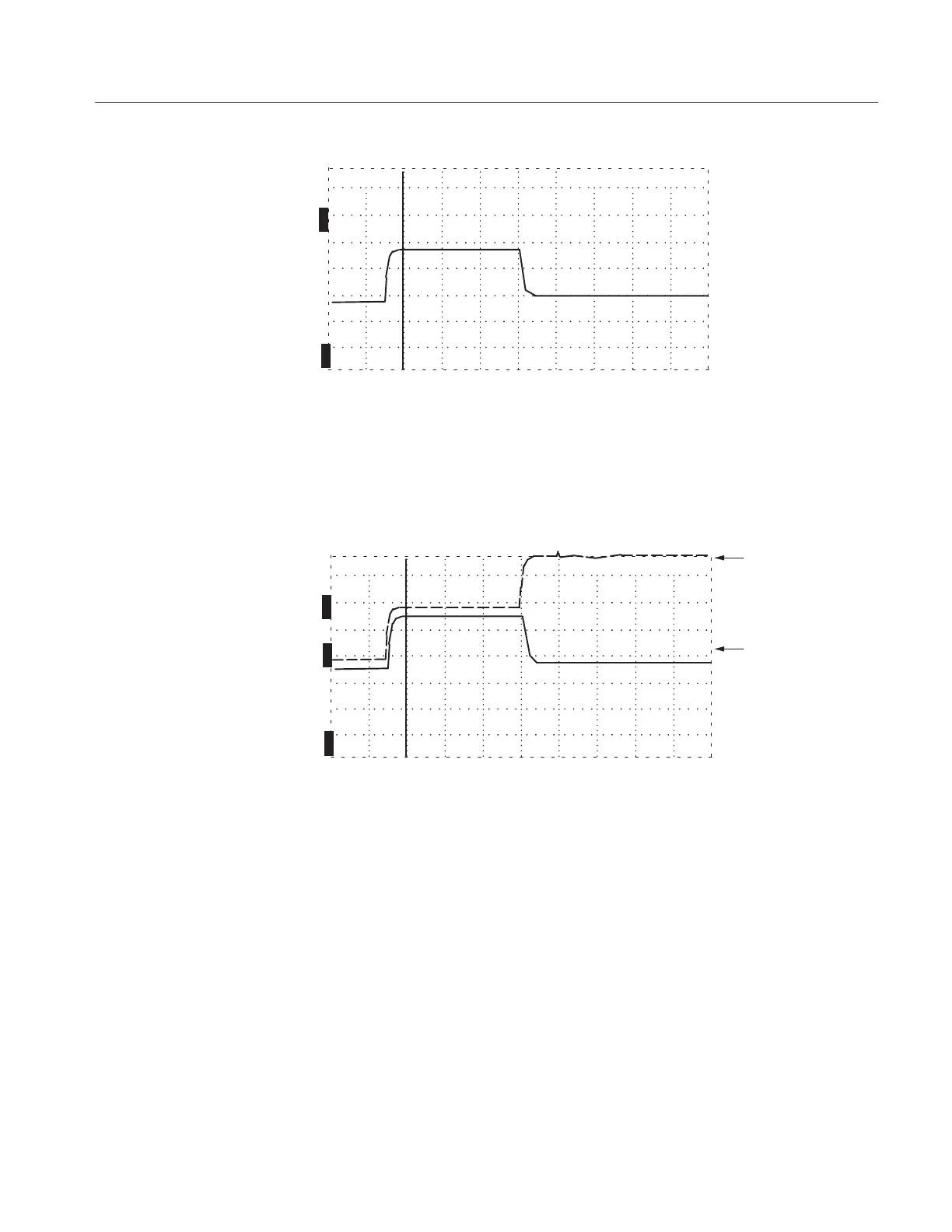

Figure 2–25: Waveform with Cable Shorted
7. Press VIEW STORE to view the stored waveform. What you see on the
display is the waveform you stored previously with the open cable and the
current waveform with the shorted cable.
O
N
ac 0.000 ft
O
N
O
N
O
FF
O
F
F
Stored Waveform
VIEW STORE
Current Waveform
VIEW INPUT
Figure 2–26: Waveform with Both Current and Stored Waveforms
Comparing new cables with old cables, or repaired cables with damaged cables
is easy using these two pushbuttons.
Leave the instrument in this condition for the next lesson.
