Tektronix 2235 Operator's Manual

General I n fo r mation-2235 ΑΝΙ U5 Μ -488 O p e r ato r s
10
KH
z

50
KH z Ιθθ KH z

500 ΚΗ z Ι MH z

100 M Hz
FRE
Q UEN CY
C42 θ 7-28

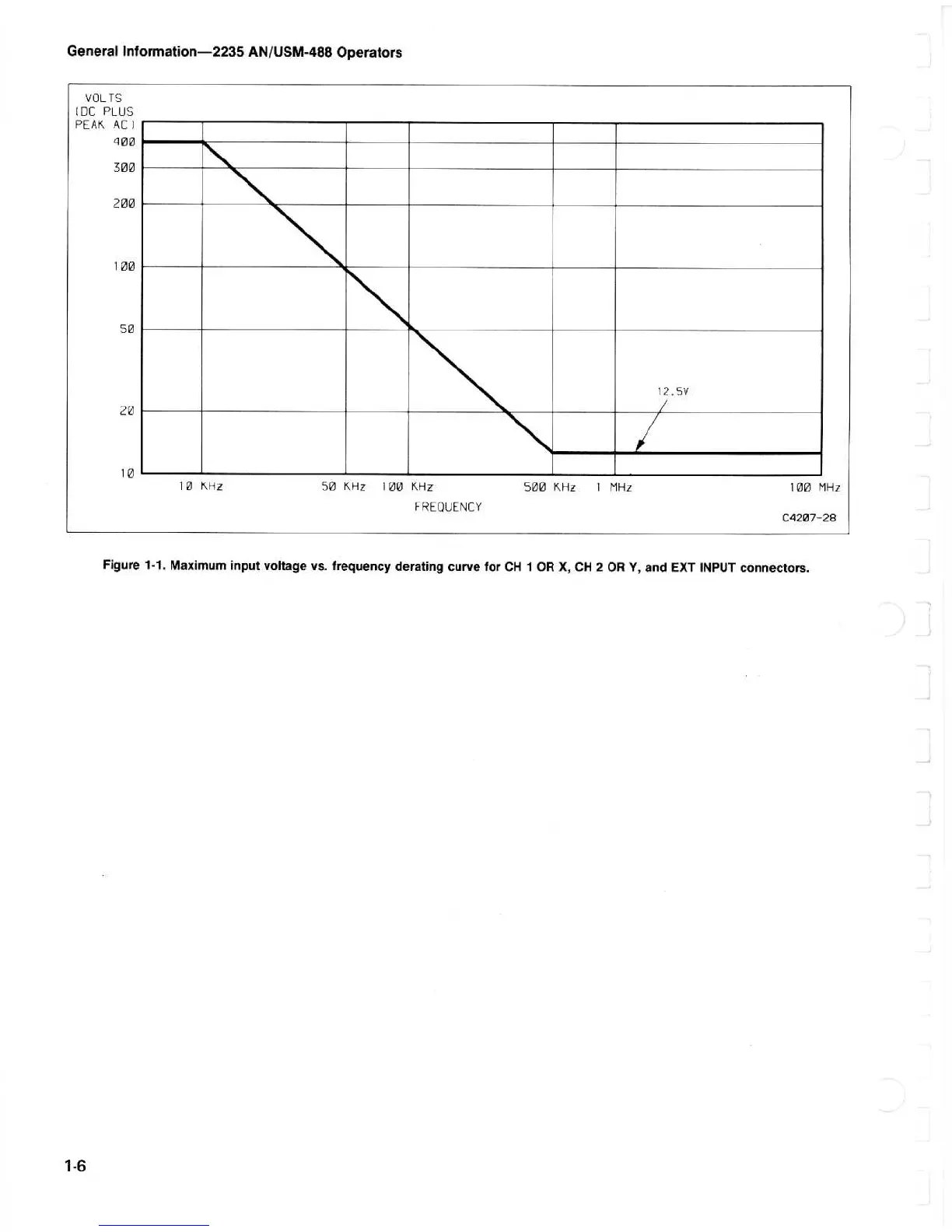

F ig ure 1-1 . M axim um i npu
t voltage υ5 . freq ue n cy d erating cu rve for C H 1 O RΧ , C H 2 OR Υ ,
and ΕΧΤ INPUT con n ecto r s .

Tektronix 2235 Specifications

General

Bandwidth	100 MHz
Channels	2
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + AC peak)
Rise Time	3.5 ns
Vertical Resolution	8 bit
Input Impedance	1 MΩ || 20 pF
Power Requirements	90 to 250 V AC, 48 to 440 Hz
Trigger Modes	Auto, Normal, Single
Display	CRT
Weight	17 lb (7.7 kg)
