Tektronix 2235 Operator's Manual

IN TEN SI F I E D
ZONE ON THE
REFEREN C E
COMP AR ISO N
SIG N A L SIGNA L
Operating P roce du res-2235 ΑΝ / US M -488
O p e
r
ato r s
I N T EN SI F I E D
ZONEON THE
REFEREN C E COMP A R ISON
SIG NA L SIG NA L
0-71
A TRACE
' ®
B
TRACE
10
®®ΜΕ ®®®®

S EENΜ®®®
o fai
inm
""""
W
REFERENCE

COMPARISON
SIGNAL
VETICAL

VERTICAL
REFERENCE

SIGNAL
REFERENCE
LINE
PARTA

PARTB

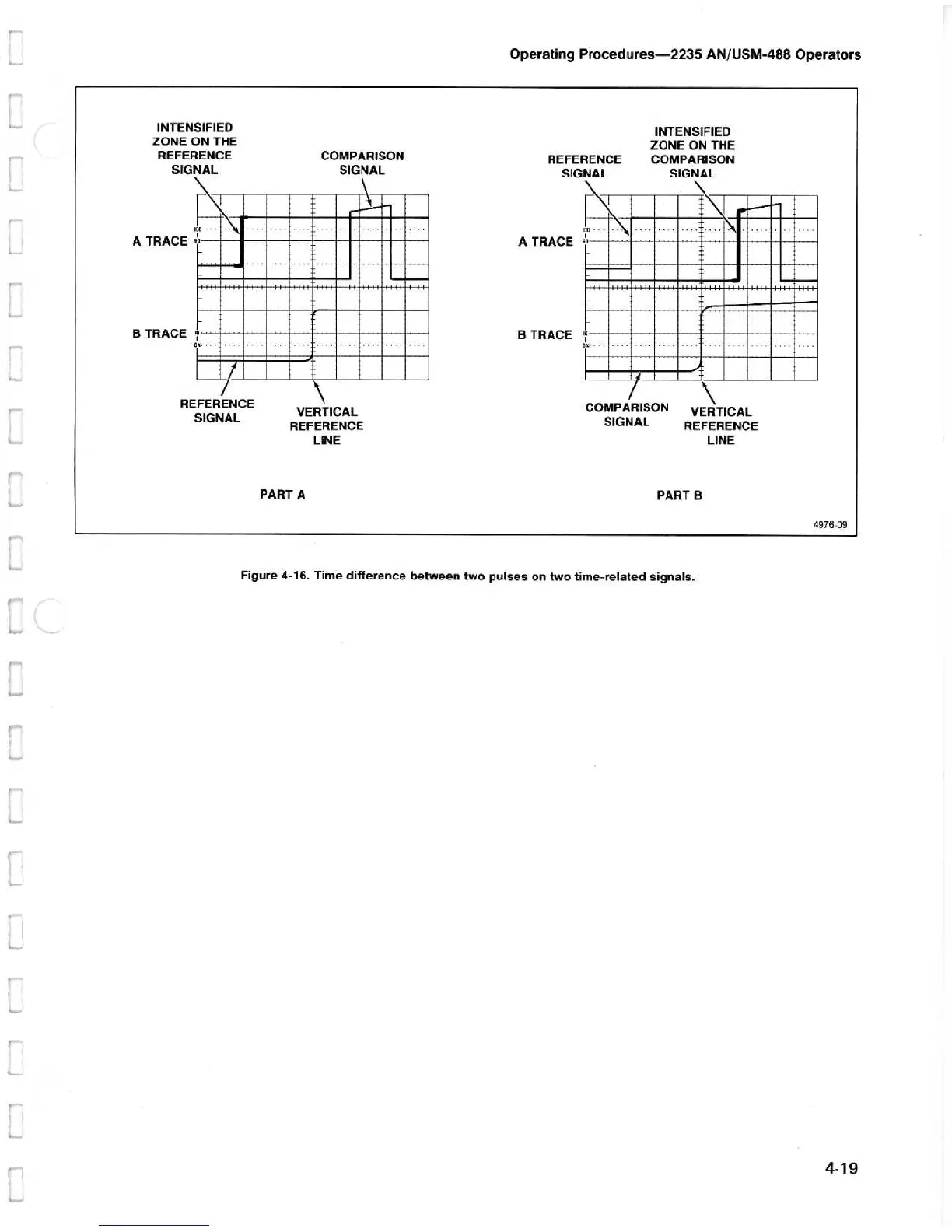

F igu r
e
4-
1 6 . Ti m e d iffe r ence b etween
two
p
ulses on t w o ti m e- r elate d sig n als .
4976-09

Tektronix 2235 Specifications

General

Bandwidth	100 MHz
Channels	2
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + AC peak)
Rise Time	3.5 ns
Vertical Resolution	8 bit
Input Impedance	1 MΩ || 20 pF
Power Requirements	90 to 250 V AC, 48 to 440 Hz
Trigger Modes	Auto, Normal, Single
Display	CRT
Weight	17 lb (7.7 kg)
