Tektronix 2235 Operator's Manual

General
Information-2235 ΑΝ
/USM-488 Operators
Characteristics
Weight
With
Accessories
Without
Accessories
Dom est i
c S
hipp
in g W e igh t
H eight
With
Pouch (Empty)
Without
Pouch
Width
With Handle
W ithout
Handle
Depth
With Front
Cover
Without
Front Cover
With
Handle Extende d

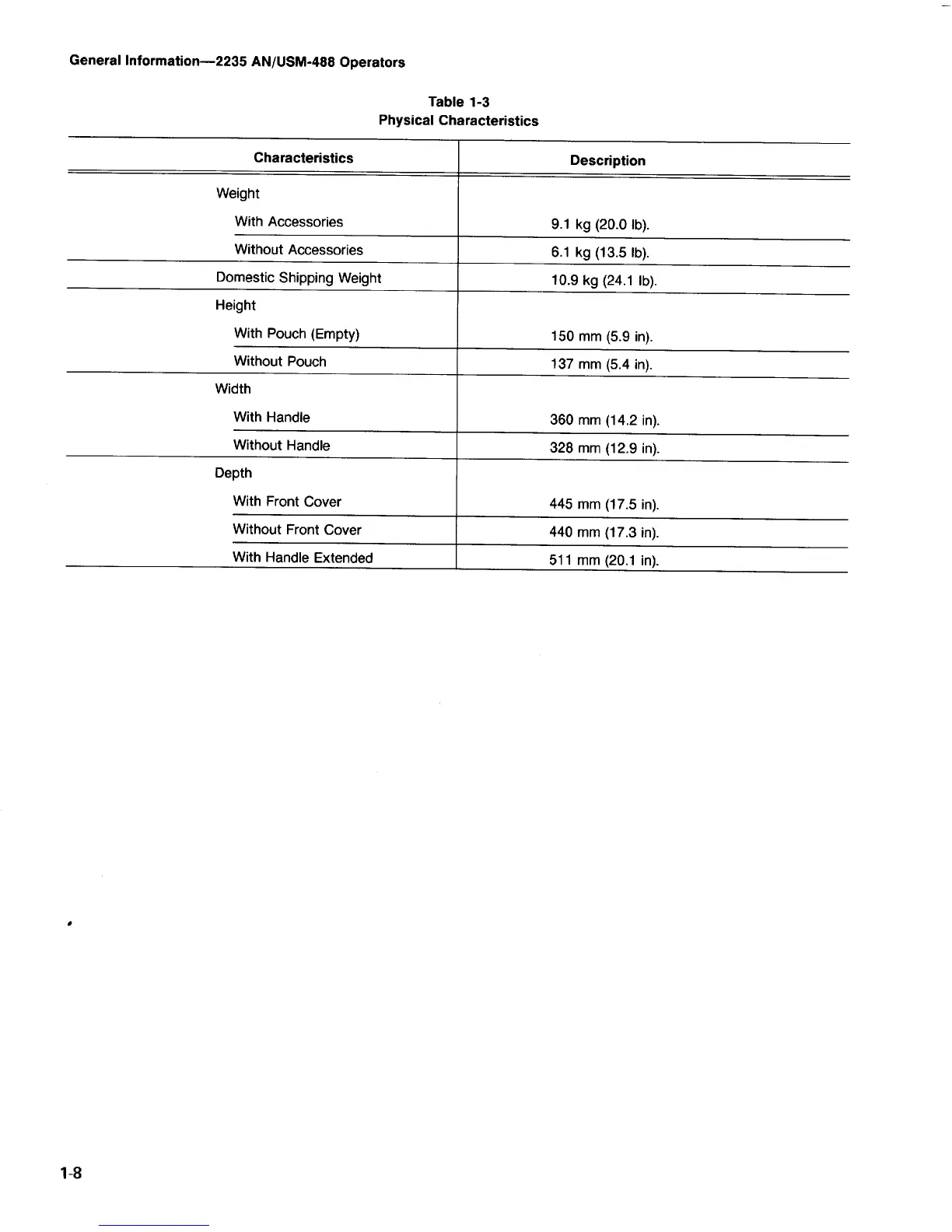

Table 1-3
Physical
Characteristics
Description
9 .1 k g (20 .0 lb) .
6 .1 k g (13 .5 lb) .
10 .9 k g (24 .1 lb) .
150 mm (5 .9 in) .
137 mm (5 .4 in) .
360 mm (14 .2 in) .
328 mm (12 .9 in) .
445 m m (17 .5 in) .
440 mm (17 .3 in) .
511 mm (20 . 1 in) .

Tektronix 2235 Specifications

General

Bandwidth	100 MHz
Channels	2
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + AC peak)
Rise Time	3.5 ns
Vertical Resolution	8 bit
Input Impedance	1 MΩ || 20 pF
Power Requirements	90 to 250 V AC, 48 to 440 Hz
Trigger Modes	Auto, Normal, Single
Display	CRT
Weight	17 lb (7.7 kg)
