Tektronix 2235 Operator's Manual

9 .12
[2321
Gene r al I n fo r matio n -2235 ANI US M -488 Operators
14 .25

11 .20
12
.88
[362]

ΙΙΙ

Ι Ι

[284]

[327]
D i m ensions are i n i n c h es [ m m]
20 .10
[510]
11 .21
[2851
15 .91
[404]
17.3
[440]
14-73
[374]

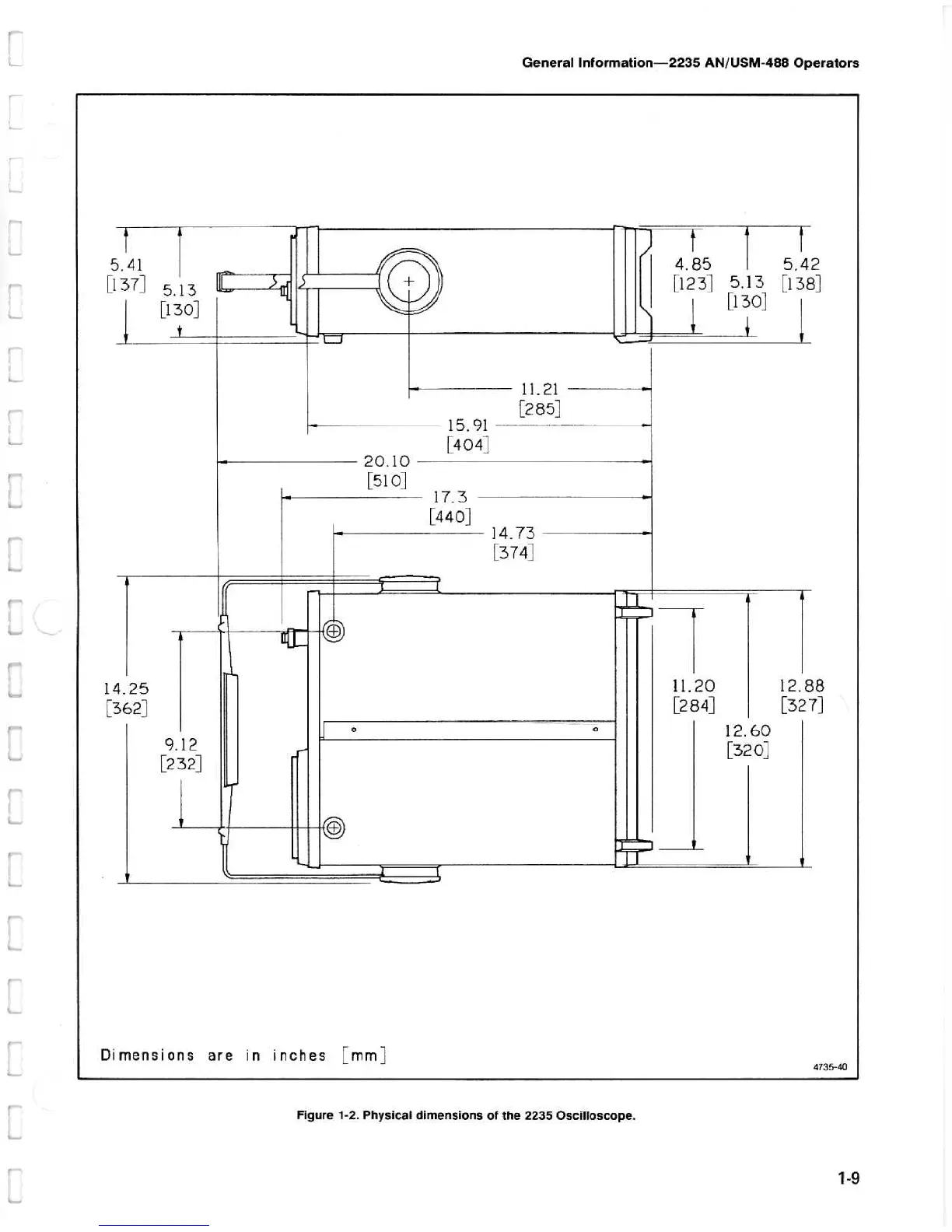

F i g u re 1- 2 . Ph
ysical
d imensions
of t h e 2235 Oscillosco p e .
12 .60
[3201
4735-40

Tektronix 2235 Specifications

General

Bandwidth	100 MHz
Channels	2
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + AC peak)
Rise Time	3.5 ns
Vertical Resolution	8 bit
Input Impedance	1 MΩ || 20 pF
Power Requirements	90 to 250 V AC, 48 to 440 Hz
Trigger Modes	Auto, Normal, Single
Display	CRT
Weight	17 lb (7.7 kg)
