Tektronix 2235 Operator's Manual

Pre pa r atio n fo r U se-2235 ΑΝ / U S M -488 O p e r ato r s
CAUTION
CA U TIO N
C

,
TO AVOID ELECTRIC
FOR CO N TI NUE D F IR E P ROT ECTIO N
' SHOCK,ΤΗΕ PO WER
REPL AC E ONL Y WIT H SPE CI F I ED

CORD PROTECTIVE
TYPE AND RAT E D FUS E . DISCO NNE CT

GROUNDING CO N DU CTO R
P OWE R I NPU T BEF
OR E REPL ACIN G F US E .

'
MUST BE CO NNE CT ED
LI NE
VO L TAG E R A N GE FUSE 25 ΟΥ

_
R ηι .
Νπ
90-250 V AC

1 Α S L O W

t ιί 7'2
AXIS
I NPU T
-

' -

+

10 ΝΩ . POSITIVE GOI N G
®

ΙΝΡυ 7 DE CREAS E S
[~1 ΝΟΤ REMOVE

I N T EN SITY .
I VE R . REFER

' 5 VO L T Ρ - Ρ CA US ES
:BVICI N G TO

' N OTICE ABLE M ODUL A-
, . .
ιι r . ΡΕΑ $ ΟΓ .
ΗΙΕΙΟΝΑΤ
NORMAL
-

-

I NT ENSITY .
570
Υ
PEAK

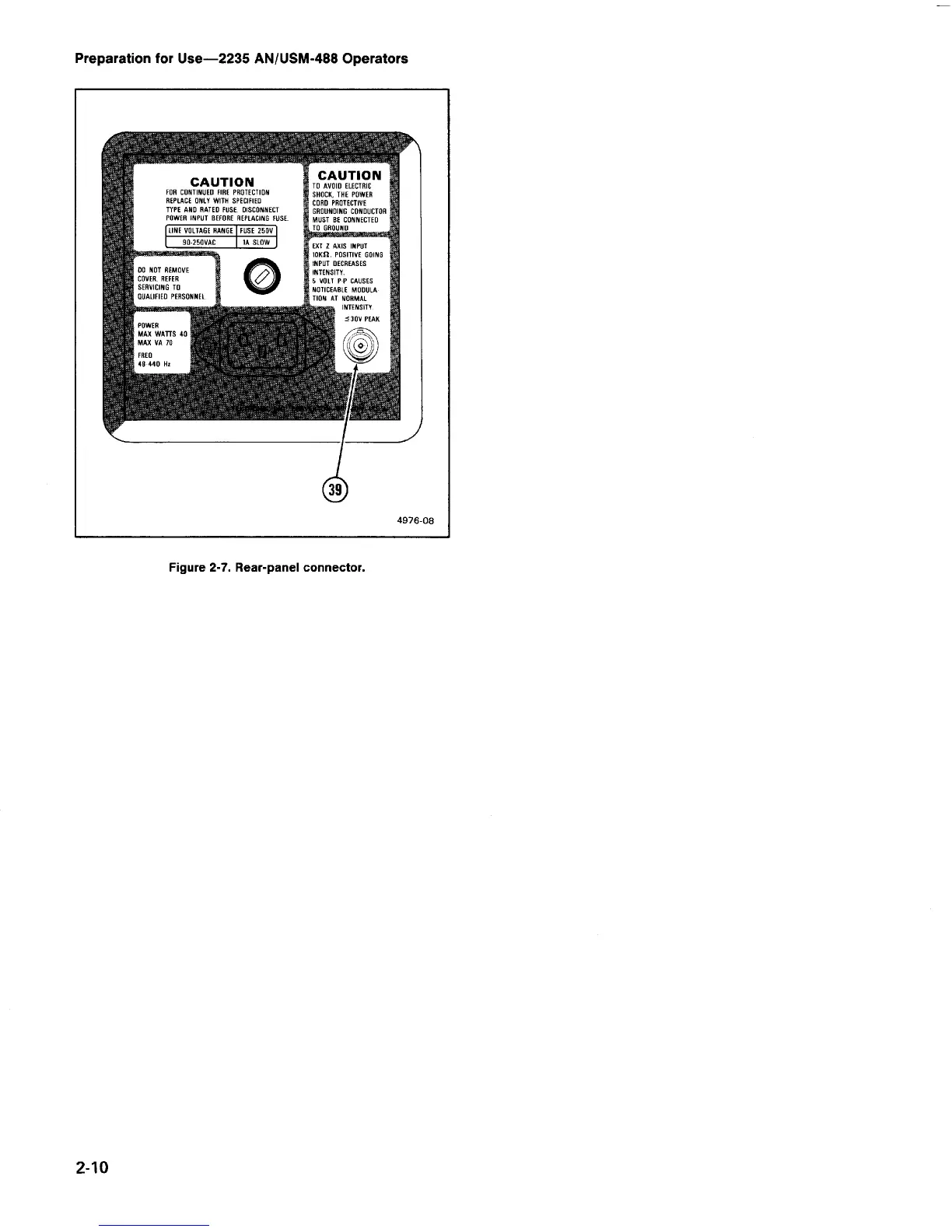

F ig ur e 2- 7 . R ea r - pan el con necto r .
-0ό

Tektronix 2235 Specifications

General

Bandwidth	100 MHz
Channels	2
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + AC peak)
Rise Time	3.5 ns
Vertical Resolution	8 bit
Input Impedance	1 MΩ || 20 pF
Power Requirements	90 to 250 V AC, 48 to 440 Hz
Trigger Modes	Auto, Normal, Single
Display	CRT
Weight	17 lb (7.7 kg)
