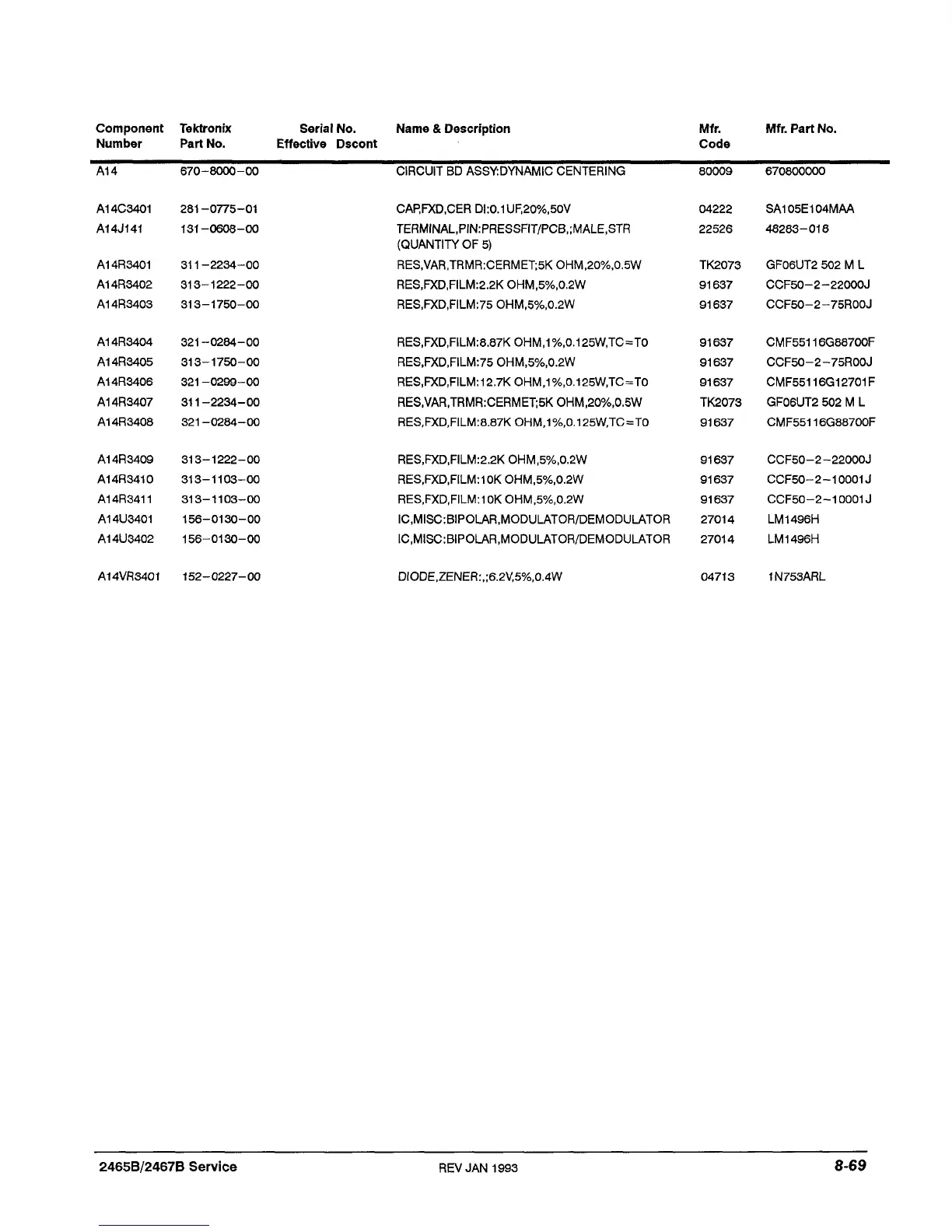

Tektronix 2465B Service Manual

Component Tektronix
Number Part No.
Serial No. Name & Description
Effective Dscont
Mfr.
Code
80009
04222
22526
Mfr. Part No.
670800000
SA105E104MAA
48283-018
A14
A14C3401
A14J141
A14R3401
A14R3402
A14R3403
670-8000-00
281 -0775-01
131-0608-00
311-2234-00
313-1222-00
313-1750-00
CIRCUIT BD ASSYDYNAMIC CENTERING
CARFXD.CER DI:0.1UF,20%,50V
TERMINAL,PIN:PRESSFIT/PCB,;MALE,STR
(QUANTITY OF 5)
RES,VAR,TRMR:CERMET;5KOHM,20%,0.5W
RES,FXD,FILM:2.2K OHM,5%,0.2W
RES,FXD,FILM:75 OHM,5%,0.2W
TK2073 GF06UT2 502 M L
91637 CCF50-2-22000J
91637 CCF50-2-75R00J
A14R3404
A14R3405
A14R3406
A14R3407
A14R3408
321-0284-00
313-1750-00
321 -0299-00
311 -2234-00
321 -0284-00
RES,FXD,FILM:8.87KOHM,1%,0.125W,TC=T0
RES,FXD,FILM:75 OHM,5%,0.2W
RES,FXD,FILM:12.7KOHM,1%,0.125W,TC=T0
RES,VAR,TRMR:CERMET;5KOHM,20%,0.5W
RES,FXD,FILM:8.87KOHM,1%,0.125W,TC=T0
91637 CMF55116G88700F
91637 CCF50-2-75R00J
91637 CMF55116G12701F
TK2073 GF06UT2 502 M L
91637 CMF55116G88700F
A14R3409
A14R3410
A14R3411
A14U3401
A14U3402
A14VR3401
313-1222-00
313-1103-00
313-1103-00
156-0130-00
156-0130-00
152-0227-00
RES,FXD,FILM:2.2K OHM,5%,0.2W
RES,FXD,FILM:10K OHM,5%,0.2W
RES,FXD,FILM:10KOHM,5%,0.2W
IC,MISC:BIPOLAR,MODULATOR/DEMODULATOR
IC,MISC:BIPOLAR,MODULATOR/DEMODULATOR
DIODE,ZENER:,;6.2V,5%,0.4W
91637
91637
91637
27014
27014
04713
CCF50-2-22000J
CCF50-2-10001J
CCF50-2-10001J
LM1496H
LM1496H
1N753ARL
2465B/2467B Service
REV JAN 1993
8-69

Tektronix 2465B Specifications

General

Bandwidth	400 MHz
Channels	4
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + peak AC)
Display	CRT
Trigger Modes	Auto, Normal, Single
Time Base Range	500 ps/div to 0.5 s/div
Rise Time	875 ps
Power Supply	48 to 440 Hz
Dimensions	495 mm
