Tektronix 2465B Service Manual

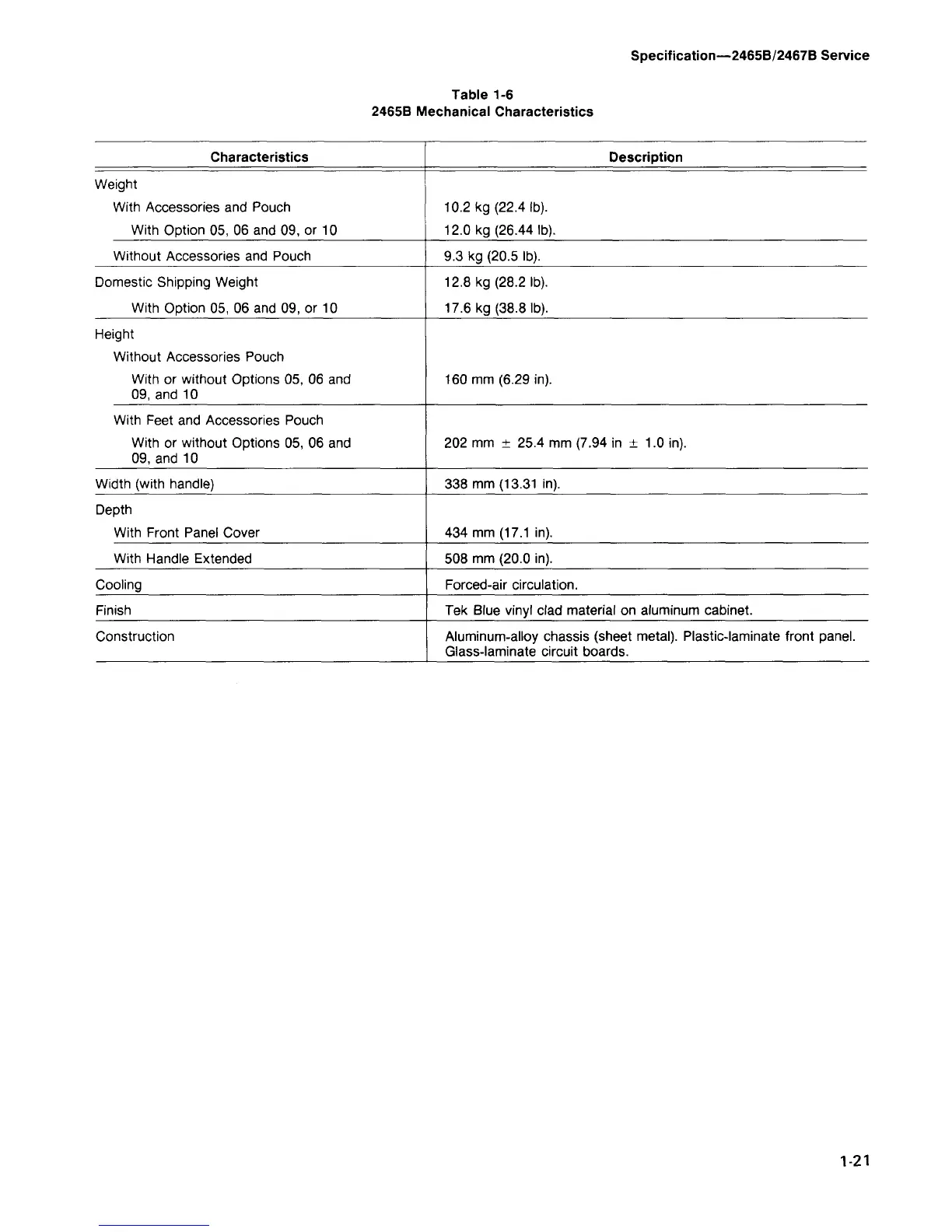

Specification—2465B/2467B Service
Table 1-6
2465B Mechanical Characteristics
Characteristics
Weight
With Accessories and Pouch
With Option 05, 06 and 09, or 10
Without Accessories and Pouch
Domestic Shipping Weight
With Option 05, 06 and 09, or 10
Height
Without Accessories Pouch
With or without Options 05, 06 and
09, and 10
With Feet and Accessories Pouch
With or without Options 05, 06 and
09, and 10
Width (with handle)
Depth
With Front Panel Cover
With Handle Extended
Cooling
Finish
Construction
Description
10.2 kg (22.4 lb).
12.0 kg (26.44 lb).
9.3 kg (20.5 lb).
12.8 kg (28.2 lb).
17.6 kg (38.8 lb).
160 mm (6.29 in).
202 mm ± 25.4 mm (7.94 in ± 1.0 in).
338 mm (13.31 in).
434 mm (17.1 in).
508 mm (20.0 in).
Forced-air circulation.
Tek Blue vinyl clad material on aluminum cabinet.
Aluminum-alloy chassis (sheet metal). Plastic-laminate front panel.
Glass-laminate circuit boards.
1-21

Tektronix 2465B Specifications

General

Bandwidth	400 MHz
Channels	4
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + peak AC)
Display	CRT
Trigger Modes	Auto, Normal, Single
Time Base Range	500 ps/div to 0.5 s/div
Rise Time	875 ps
Power Supply	48 to 440 Hz
Dimensions	495 mm
