Tektronix 2465B Service Manual

Specification-2465B/2467B Service

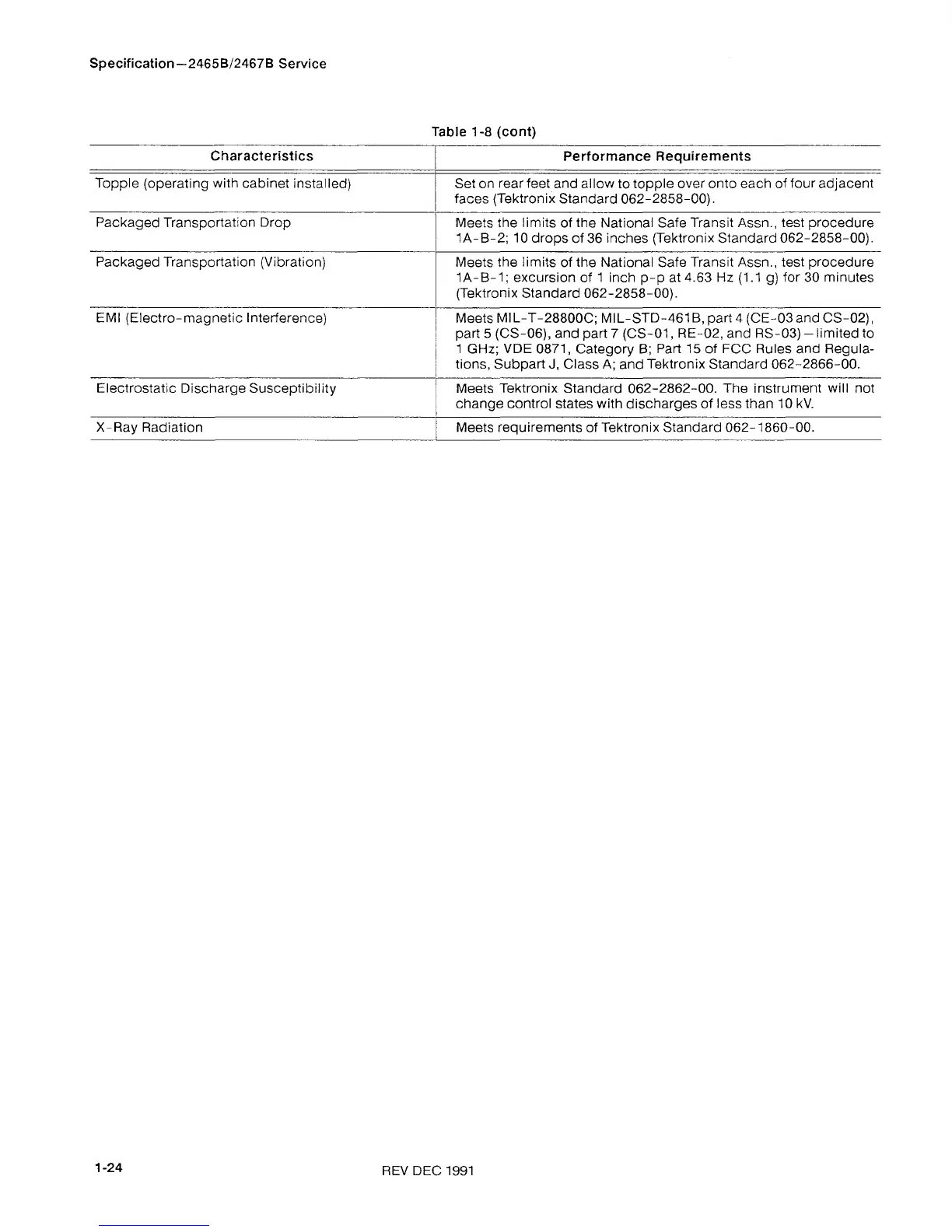

Table 1-8 (cont)
Characteristics
Topple (operating with cabinet installed)
Packaged Transportation Drop
Packaged Transportation (Vibration)
EMI (Electro-magnetic Interference)
Electrostatic Discharge Susceptibility
X-Ray Radiation
Performance Requirements
Set on rear feet and al low to topple over onto each of four adjacent
faces (Tektronix Standard 062-2858-00).
Meets the limits of the National Safe Transit Assn., test procedure
1A-B-2; 10 drops of 36 inches (Tektronix Standard 062-2858-00).
Meets the limits of the National Safe Transit Assn., test procedure
1A-B-1; excursion of 1 inch p-p at 4.63 Hz (1.1 g) for 30 minutes
(Tektronix Standard 062-2858-00).
Meets MIL-T-28800C;MIL-STD-461B, part 4 (CE-03 and CS-02),
part 5 (CS-06), and part 7 (CS-01, RE-02, and RS-03) - limited to
1 GHz; VDE 0871, Category B; Part 15 of FCC Rules and Regula-
tions, Subpart J, Class A; and Tektronix Standard 062-2866-00.
Meets Tektronix Standard 062-2862-00. The instrument will not
change control states with discharges of less than 10 kV.
Meets requirements of Tektronix Standard 062-1860-00.
1-24
REV DEC 1991

Tektronix 2465B Specifications

General

Bandwidth	400 MHz
Channels	4
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + peak AC)
Display	CRT
Trigger Modes	Auto, Normal, Single
Time Base Range	500 ps/div to 0.5 s/div
Rise Time	875 ps
Power Supply	48 to 440 Hz
Dimensions	495 mm
