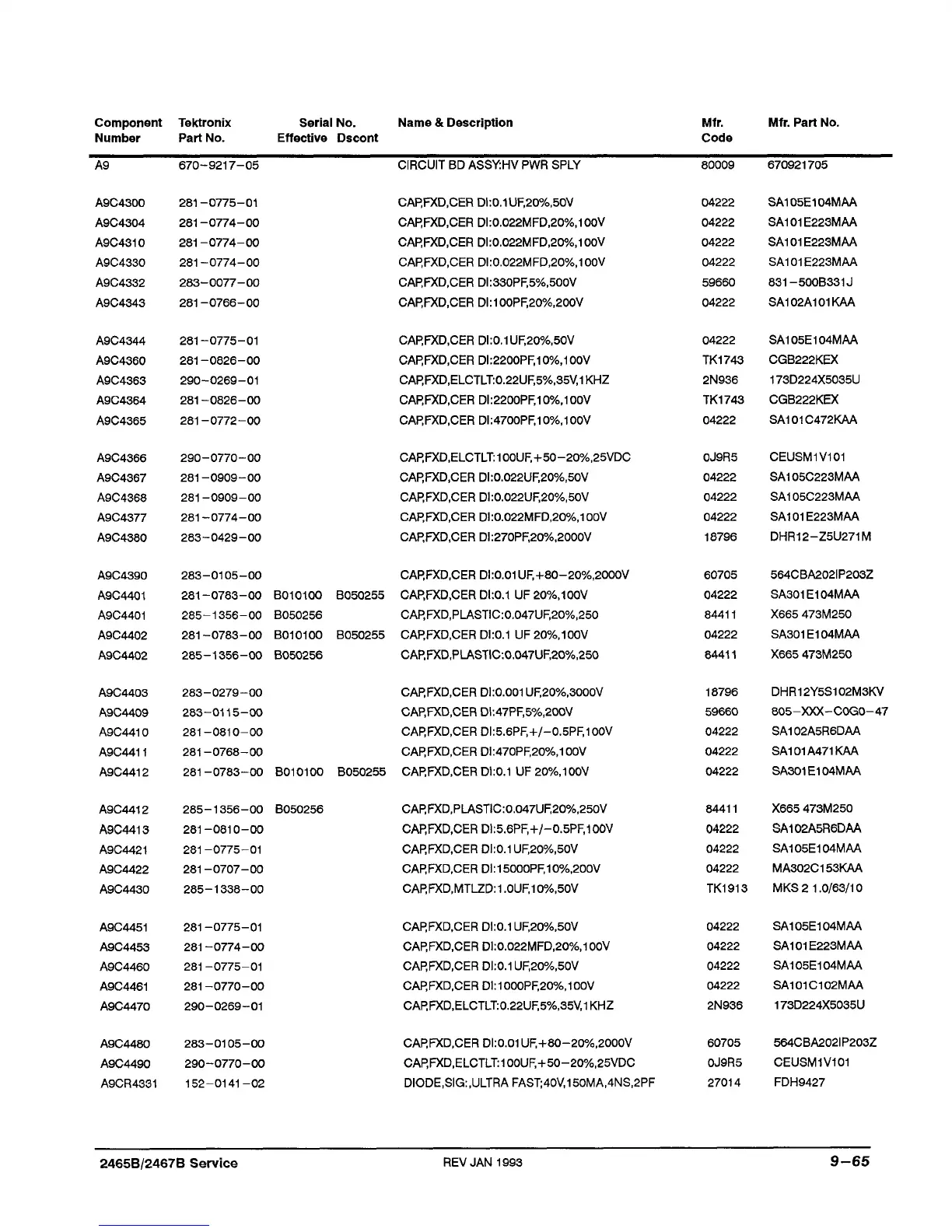

Tektronix 2465B Service Manual

Component Tektronix Serial No. Name & Description
Number Part No. Effective Dscont
Mfr. Mfr. Part No.
Code
A9
A9C4300
A9C4304
A9C4310
A9C4330
A9C4332
A9C4343
670-9217-05
281 -0775-01
281 -0774-00
281 -0774-00
281 -0774-00
283-0077-00
281 -0766-00
CIRCUIT BD ASSYHV PWR SPLY
CARFXD.CER DI:0.1UF,20%,50V
CARFXD.CER DI:0.022MFD,20%,100V
CARFXD.CER DI:0.022MFD,20%,100V
CARFXD.CER DI:0.022MFD,20%,100V
CARFXD.CER DI:330PF,5%,500V
CARFXD.CER DI:100PF,20%,200V
80009
04222
04222
04222
04222
59660
04222
670921705
SA105E104MAA
SA101E223MAA
SA101E223MAA
SA101E223MAA
831-500B331J
SA102A101KAA
A9C4344
A9C4360
A9C4363
A9C4364
A9C4365
281 -0775-01
281 -0826-00
290-0269-01
281 -0826-00
281-0772-00
CARFXD.CER DI:0.1UF,20%,50V
CARFXD.CER DI:2200PF,10%,100V
CARFXD,ELCTLT:0.22UF,5%,35V,1KHZ
CARFXD.CER DI:2200PF,10%,100V
CARFXD.CER DI:4700PF,10%,100V
04222 SA105E104M AA
TK1743 CGB222KEX
2N936 173D224X5035U
TK1743 CGB222KEX
04222 SA101C472KAA
A9C4366
A9C4367
A9C4368
A9C4377
A9C4380
A9C4390
A9C4401
A9C4401
A9C4402
A9C4402
A9C4403
A9C4409
A9C4410
A9C4411
A9C4412
A9C4412
A9C4413
A9C4421
A9C4422
A9C4430
A9C4451
A9C4453
A9C4460
A9C4461
A9C4470
A9C4480
A9C4490
A9CR4331
290-0770-00
281 -0909-00
281 -0909-00
281 -0774-00
283-0429-00
283-0105-00
281-0783-00 B010100 B050255
285-1356-00 B050256
281-0783-00 B010100 B050255
285-1356-00 B050256
283-0279-00
283-0115-00
281-0810-00
281 -0768-00
281-0783-00 B010100 B050255
285-1356-00 B050256
281-0810-00
281 -0775-01
281 -0707-00
285-1338-00
281 -0775-01
281 -0774-00
281 -0775-01
281 -0770-00
290-0269-01
283-0105-00
290-0770-00
152-0141-02
CARFXD,ELCTLT:100UF,+50-20%,25VDC
CARFXD.CER DI:0.022UF,20%,50V
CARFXD.CER DI:0.022UF,20%,50V
CARFXD.CER DI:0.022MFD,20%,100V
CARFXD.CER DI:270PF,20%,2000V
CARFXD.CER Dl:0.01 UF,+80-20%,2000V
CARFXD.CER Dl:0.1 UF20%,100V
CARFXD,PLASTIC:0.047UF,20%,250
CARFXD.CER Dl:0.1 UF20%,100V
CARFXD,PLASTIC:0.047UF,20%,250
CARFXD.CER DI:0.001UF,20%,3000V
CARFXD.CER DI:47PF,5%,200V
CARFXD.CER DI:5.6PF,+/-0.5PF,100V
CARFXD.CER DI:470PF,20%,100V
CARFXD.CER Dl:0.1 UF20%,100V
CARFXD,PLASTIC:0.047UF,20%,250V
CARFXD.CER DI:5.6PF,+/-0.5PF,100V
CARFXD.CER DI:0.1UF,20%,50V
CARFXD.CER DI:15000PF,10%,200V
CARFXD,MTLZD:1.0UF,10%,50V
CARFXD.CER DI:0.1UF,20%,50V
CARFXD.CER DI:0.022MFD,20%,100V
CARFXD.CER DI:0.1UF,20%,50V
CARFXD.CER DI:1000PF,20%,100V
CARFXD,ELCTLT:0.22UF,5%,35V,1KHZ
CARFXD.CER Dl:0.01 UF,+80-20%,2000V
CARFXD,ELCTLT:100UF,+50-20%,25VDC
DIODE,SIG:,ULTRAFAST;40V,150MA,4NS,2PF
0J9R5
04222
04222
04222
18796
60705
04222
84411
04222
84411
18796
59660
04222
04222
04222
84411
04222
04222
04222
TK1913
04222
04222
04222
04222
2N936
60705
0J9R5
27014
CEUSM1V101
SA105C223MAA
SA105C223MAA
SA101E223MAA
DHR12-Z5U271M
564CBA202IP203Z
SA301E104MAA
X665 473M250
SA301E104MAA
X665 473M250
DHR12Y5S102M3KV
805-XXX-C0G0-47
SA102A5R6DAA
SA101A471KAA
SA301E104MAA
X665 473M250
SA102A5R6DAA
SA105E104MAA
MA302C153KAA
MKS 2 1.0/63/10
SA105E104MAA
SA101E223MAA
SA105E104MAA
SA101C102MAA
173D224X5035U
564CBA202IP203Z
CEUSM1V101
FDH9427
2465B/2467B Service
REV JAN 1993
9-65

Tektronix 2465B Specifications

General

Bandwidth	400 MHz
Channels	4
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + peak AC)
Display	CRT
Trigger Modes	Auto, Normal, Single
Time Base Range	500 ps/div to 0.5 s/div
Rise Time	875 ps
Power Supply	48 to 440 Hz
Dimensions	495 mm
