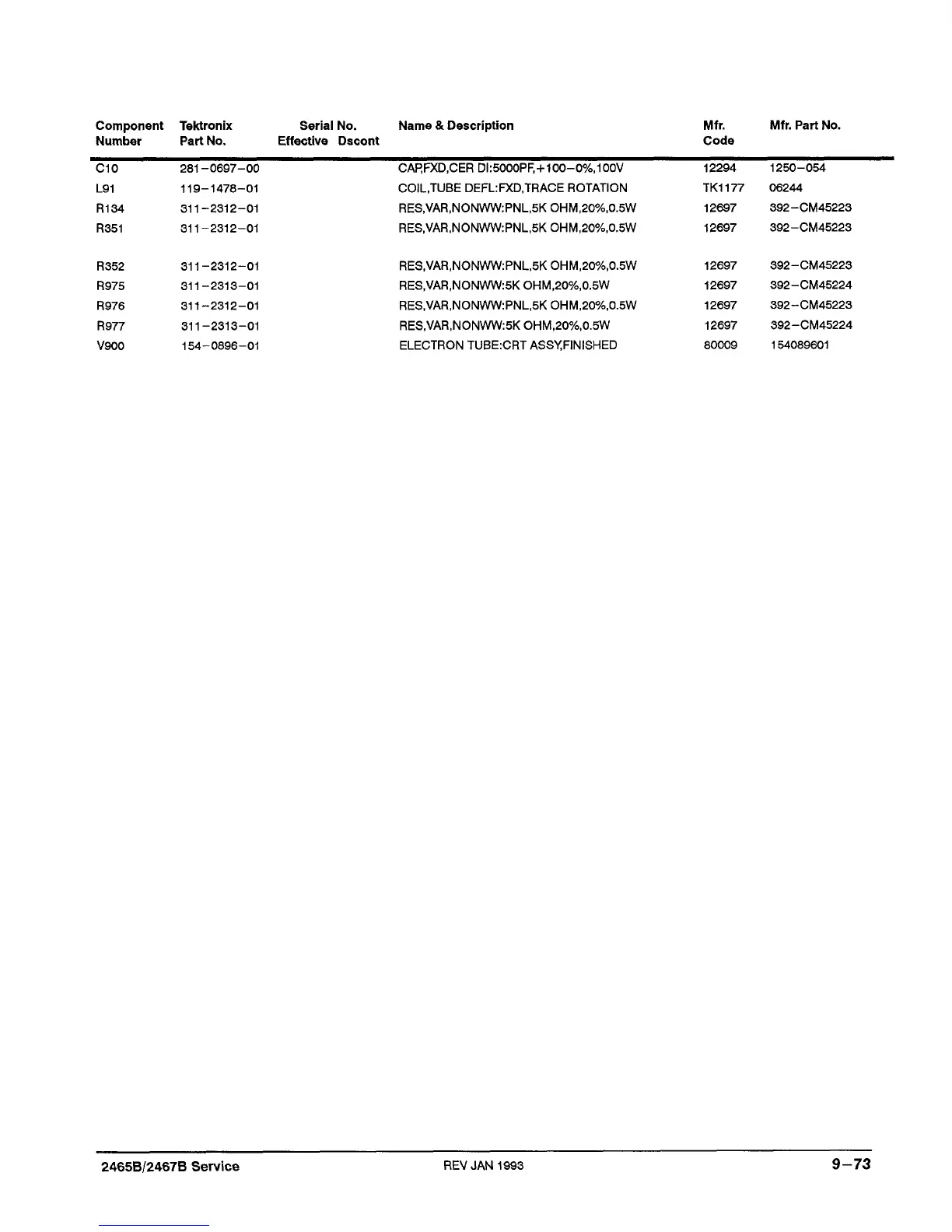

Component Tektronix
Number Part
No.
Serial
No.
Effective Dscont
Name
&
Description
Mfr.
Code
12294
TK1177
12697
12697
12697
12697
12697
12697
80009
Mfr.
Part
No.
1250-054
06244
392-CM45223
392-CM45223
392-CM45223
392-CM45224
392-CM45223
392-CM45224
154089601
C10
L91
R134
R351
R352
R975
R976
R977
V900
281 -0697-00
119-1478-01
311-2312-01
311-2312-01
311-2312-01
311-2313-01
311-2312-01
311-2313-01
154-0896-01
CAP,FXD,CERDI:5000PF,+100-0%,100V
COIL.TUBE DEFLFXDJRACE ROTATION
RES,VAR,NONWW:PNL,5KOHM,20%,0.5W
RES,VAR,NONWW:PNL,5KOHM,20%,0.5W
RES,VAR,NONWW:PNL,5KOHM,20%,0.5W
RES,VAR,NONWW:5K OHM,20%,0.5W
RES,VAR,NONWW:PNL,5KOHM,20%,0.5W
RES,VAR,NONWW:5K OHM,20%,0.5W
ELECTRON TUBE:CRT ASSYFINISHED
2465B/2467B Service
REV JAN 1993
9-73
