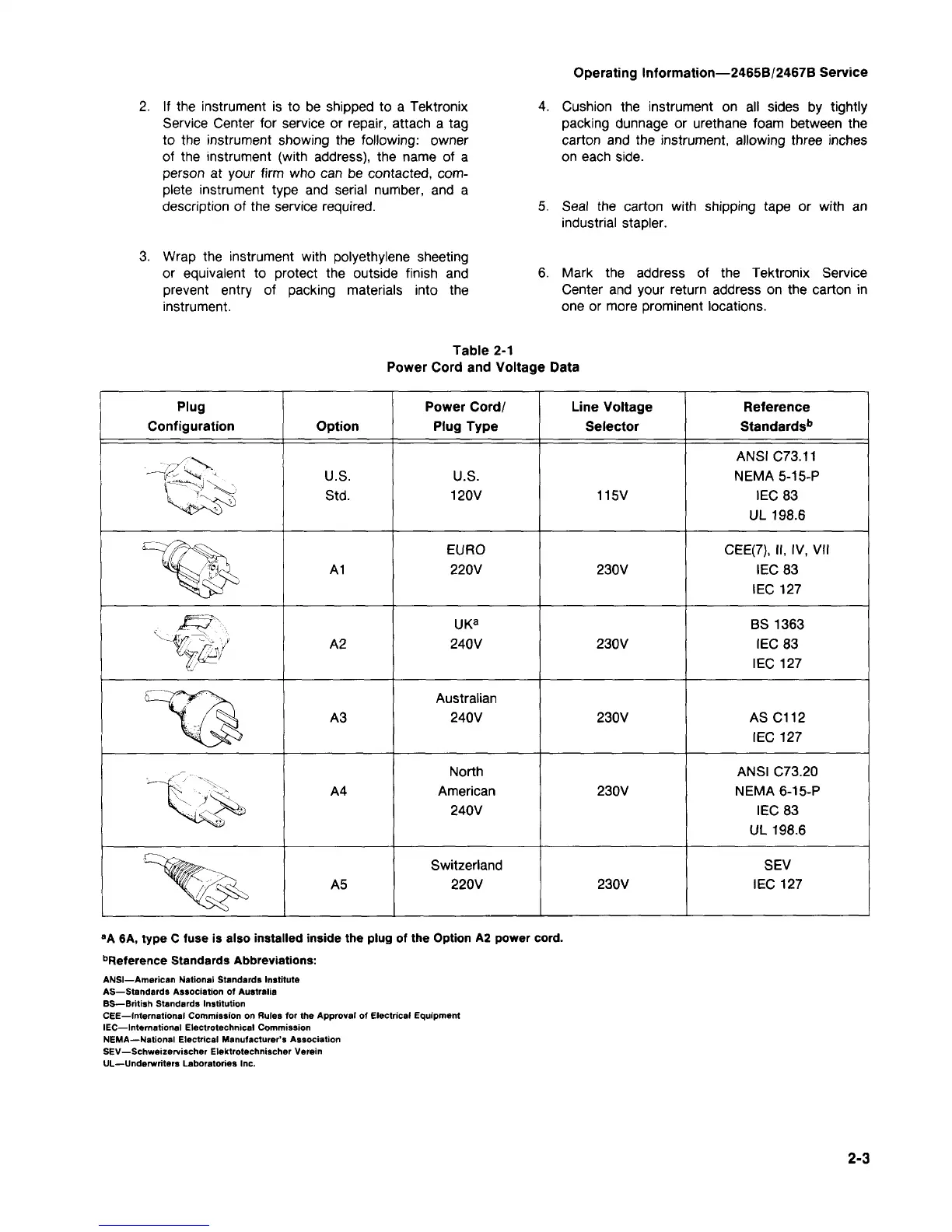

Operating Information—2465B/2467B Service
If the instrument is to be shipped to a Tektronix
Service Center for service or
repair,
attach a tag
to the instrument showing the following: owner
of the instrument (with address), the name of a
person at your firm who can be contacted, com-
plete instrument type and serial number, and a
description of the service required.
4.
Cushion the instrument on all sides by tightly
packing dunnage or urethane foam between the
carton and the instrument, allowing three inches
on each side.
Seal the carton with shipping tape or with an
industrial stapler.
Wrap the instrument with polyethylene sheeting
or equivalent to protect the outside finish and
prevent entry of packing materials into the
instrument.
Mark the address of the Tektronix Service
Center and your return address on the carton in
one or more prominent locations.
Table 2-1
Power Cord and Voltage Data
Plug
Configuration Option
Power Cord/
Plug Type
Line Voltage
Selector
Reference
Standards
6
U.S.
Std.
U.S.
120V
115V
ANSI C73.11
NEMA5-15-P
IEC83
UL 198.6
A1
EURO
220V
230V
CEE(7), II, IV, VII
IEC83
lEC 127
A2
UK
a
240V 230V
BS 1363
IEC83
lEC 127
A3
Australian
240V 230V ASC112
lEC 127
A4
North
American
240V
230V
ANSI C73.20
NEMA6-15-P
IEC83
UL 198.6
A5
Switzerland
220V 230V
SEV
lEC 127
"A 6A, type C fuse is also installed inside the plug of the Option A2 power cord.
b
Reference Standards Abbreviations:
ANSI—American National Standards Institute
AS—Standards Association of Australia
BS—British Standards Institution
CEE—International Commission on Rules for the Approval of Electrical Equipment
lEC—International Electrotechnical Commission
NEMA—National Electrical Manufacturer's Association
SEV—Schweizervischer Elektrotechnischer Verein
UL—Underwriters Laboratories Inc.
2-3
