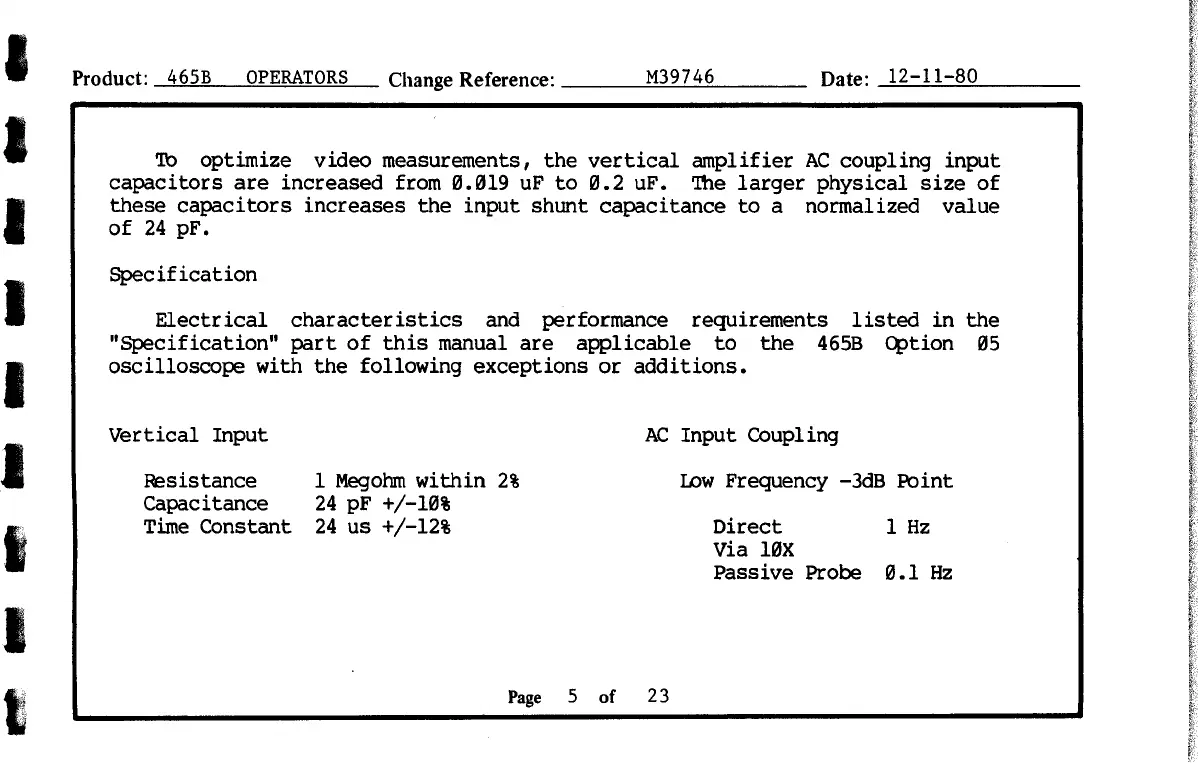

Product: 465B OPERATORS
Change Reference: ----=M=3:....::9....:.7-'4..;:;.6 ___ _
Date:
12-11-80
Tb optimize video measurements, the vertical amplifier AC coupling input
capacitors are increased from 0.019 uF to 0.2 uF. The larger physical size of
these capacitors increases the input shunt capacitance to a normalized value
of 24 pF.
Specification
Electrical characteristics and performance requirements listed in the
"Specification" part of this manual are applicable to the 465B cption 05
oscilloscope with the following exceptions or additions.
Vertical Input AC Input Coupling
Iesistance 1 Megohm within 2% Low Frequency -3dB Point
Capacitance
24 pF +/-10%
Time Constant 24 us +/-12% Direct 1 Hz
Via 10X
Passive Probe 0.1 Hz
Page 5 of 23
