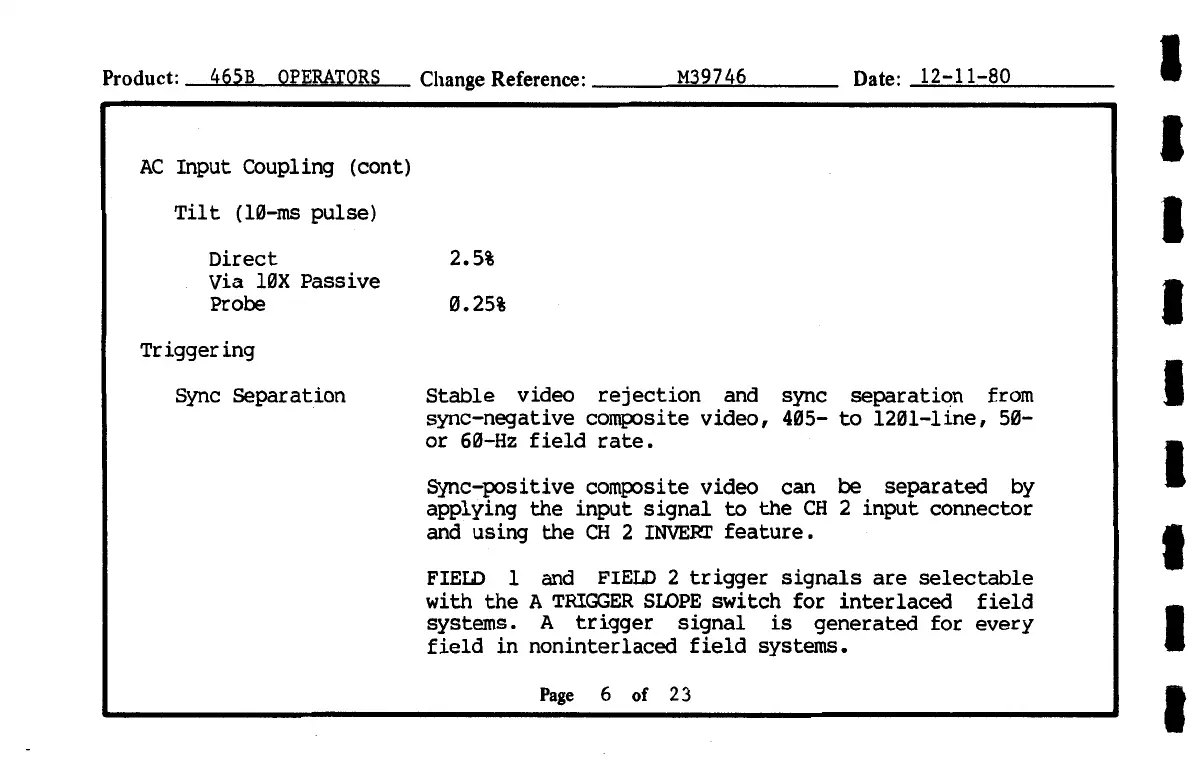

AC Input Coupling (cont)
Tilt (10-ms pulse)
Direct
Via 10X Passive
Probe
Triggering
Sync Separation
2.5%
0.25%
Stable video rejection and sync separation from
sync-negative composite video, 405- to 1201-line, 50-
or 60-Hz field rate.
Sync-positive composite video can be separated by
applying the input signal to the CH 2 input connector
and using the CH 2 INVERT feature.
FIELD 1 and FIELD 2 trigger signals are selectable
with the A TRIGGER SLOPE switch for interlaced field
systems. A trigger signal is generated for every
field in noninterlaced field systems.
