M39746
12-11-80
Product
·. 465B OPERATORS Cl R &
--------- 1ange e1erence: ----------
Date: --------

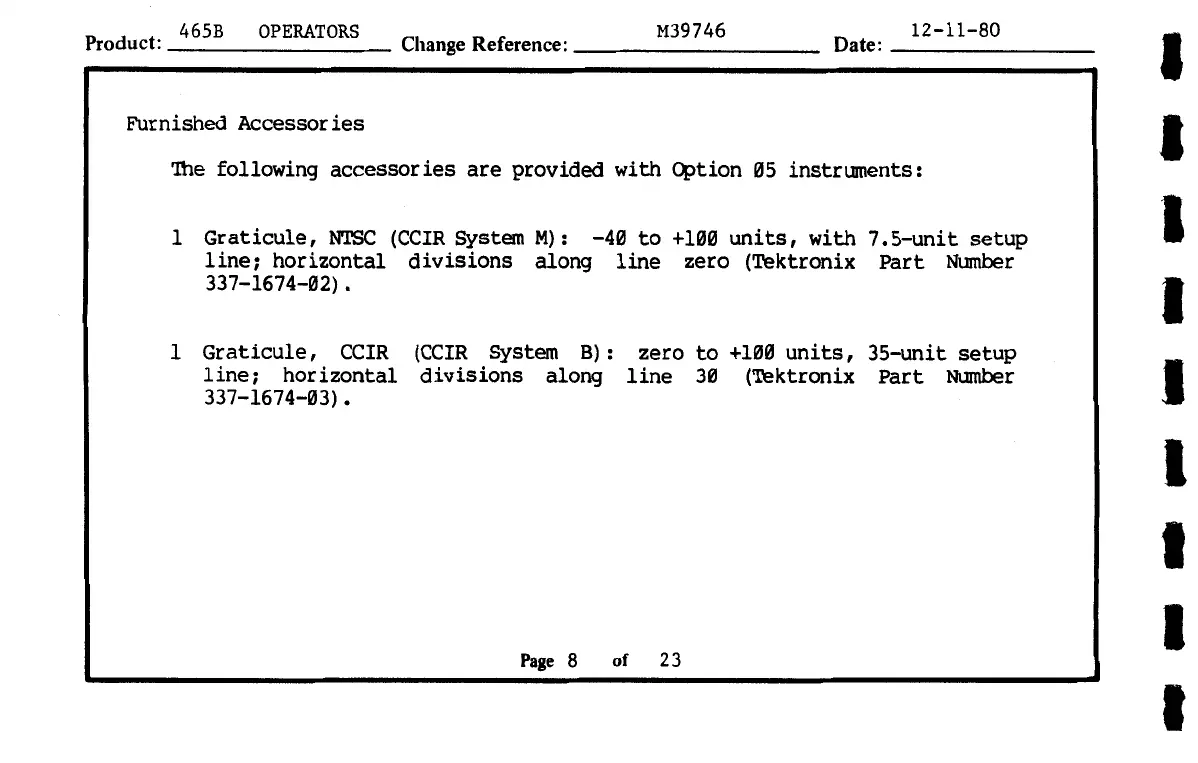

Furnished Accessories
The following accessories are provided with Option ~5 instruments:
1
Graticule, NTSC (CCIR System M): -4~ to +1~~ units, with 7.5-unit setup
line; horizontal divisions along line zero (Tektronix Part Number
337-1674-~2).
1 Graticule, CCIR
line; horizontal
337-1674-~3).
(CCIR System B) :
divisions along
zero
to +1~~ units, 35-unit setup
line 3~ (Tektronix Part Number
Page 8 of 23
