Product: 465B
OPERATORS
Change Reference:
___
__.!M:.=-:3~9:...!7....::!4~6
___
_
Date:
12-11-80

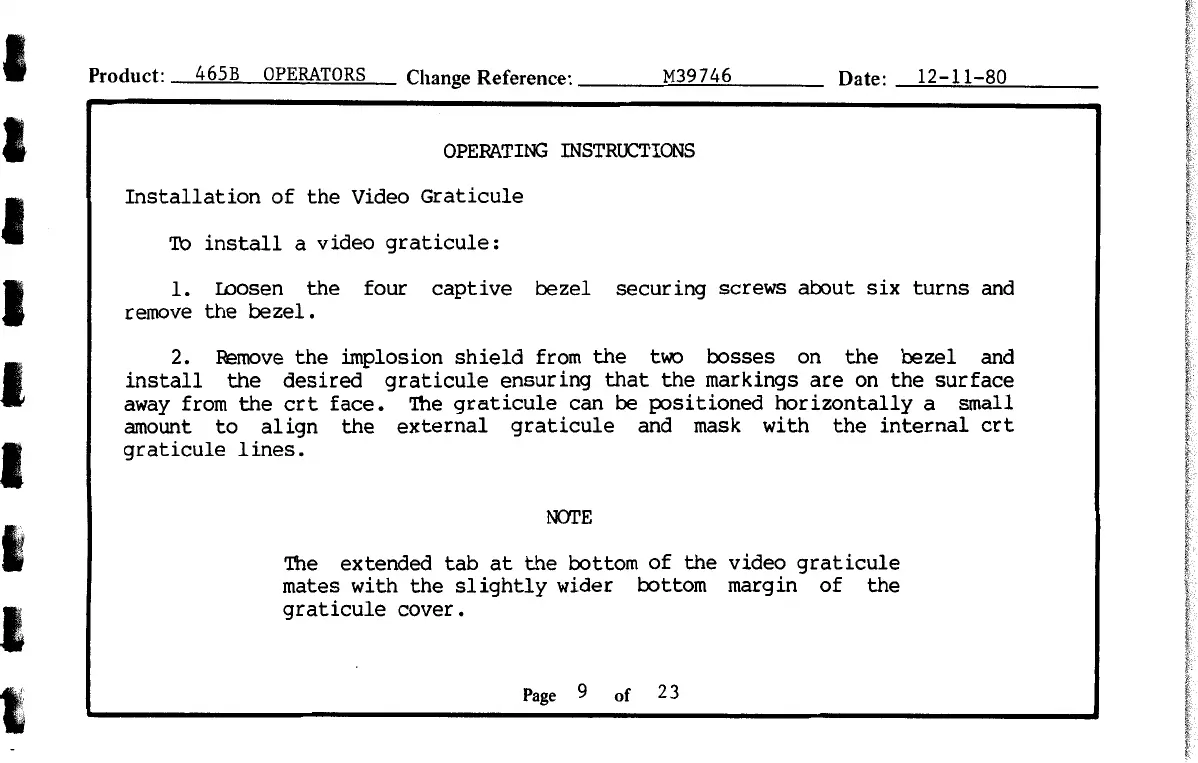

OPERATING
INSTRUCTIONS
Installation
of
the
Video
Graticule
Tb
install
a video
graticule:
1.
Loosen
the
four
captive
bezel
securing
screws about
six
turns
and
remove
the
bezel.
2.
Remove
the
implosion
shield
from
the
two
bosses on
the
bezel
and
install
the
desired
graticule
ensuring
that
the
markings
are
on
the
surface
away
from
the
crt
face.
The
graticule
can
be
positioned
horizontally
a
small
amount
to
align
the
external
graticule
and
mask
with
the
internal
crt
graticule
lines.
NOTE
The
extended
tab
at
the
bottom
of
the
video
graticule
mates
with
the
slightly
wider bottom margin
of
the
graticule
cover.
Page
9 of
23
