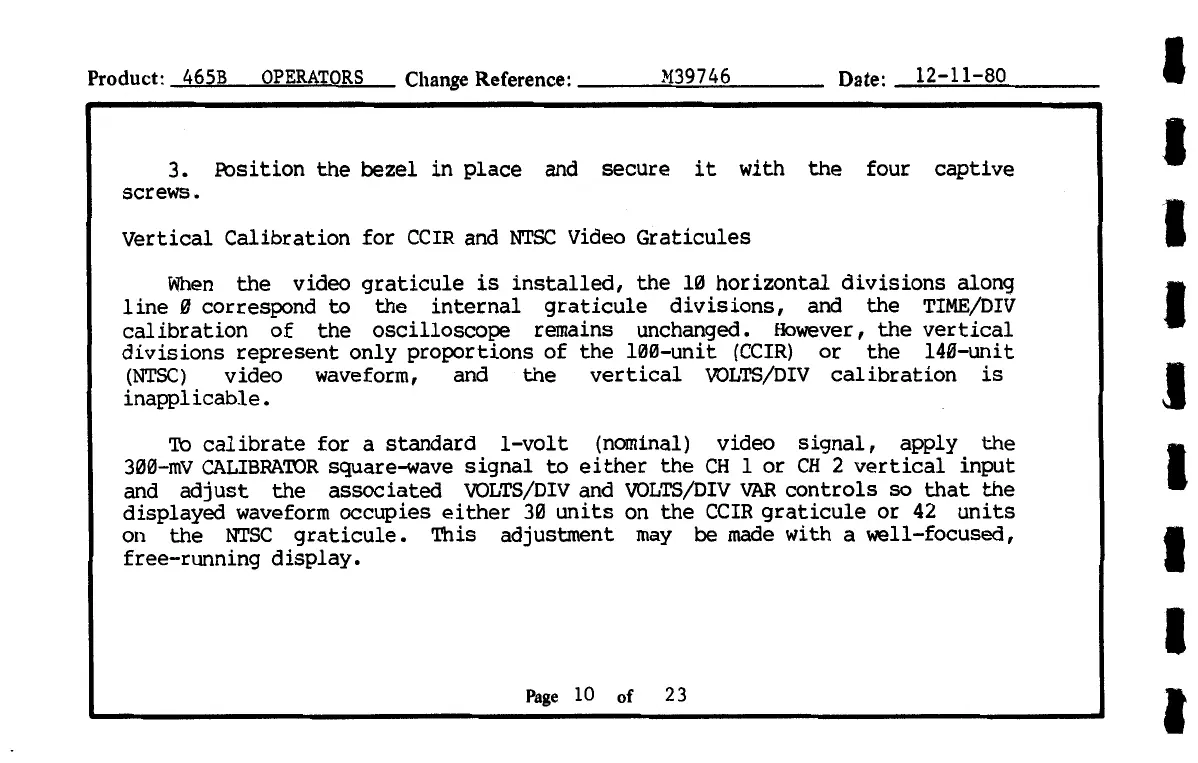

Product: 465B OPERATORS
Change Reference: ___ .....:M:..::3::..::9~7.....:4~6 ___ _
Date:
--..:1~2:....-.!:..1 !:....1-~8~0 __ _
3. POsition the bezel in place and secure it with the four
screws.
Vertical Calibration for CCIR and NTSC Video Graticules
captive
When the video graticule is installed, the 10 horizontal divisions along
line 0 correspond to the internal graticule divisions, and the TIME/DIV
calibration of the oscilloscope remains unchanged. However, the vertical
divisions represent only proportions of the 100-unit (CCIR) or the 140-unit
(NTSC) video waveform, and the vertical VOLTS/DIV calibration is
inapplicable.
Tb calibrate for a standard 1-volt (nominal) video signal, apply the
300-mV CALIBRATOR square-wave signal to either the CH 1 or CH 2 vertical input
and adjust the associated VOLTS/DIV and VOLTS/DIV VAR controls so that the
displayed waveform occupies either 30 units on the CCIR graticule or 42 units
on the NTSC graticule. This adjustment may be made with a well-focused,
free-running display.
Page 10 of 23
