Ζ
AXIS
I NPU T
Input
for Ζ -
Αχίτ
circuit p rovi d ing inten-
sity mo d ulation of t h e C R T .
VER T SIG Sam p le of vertical
signal as selected by Β T R IG-
G ER SO UR
C
E switc h .
+
SAW TOOTH Sam p le of Α
Sawtoot h or Β Sawtoot h as
selecte d by an internal switc h .
+ GAT E S q uare-wave signal as
selecte dby an internal switc h :
Α Gate ; Β Gate ; or Α Oely' d
Gate .
REM OT E RE SE T I NPU T P ro-
vides
remote
single-swee p reset
w h en Time base is in
Single
Sweep M o d e .

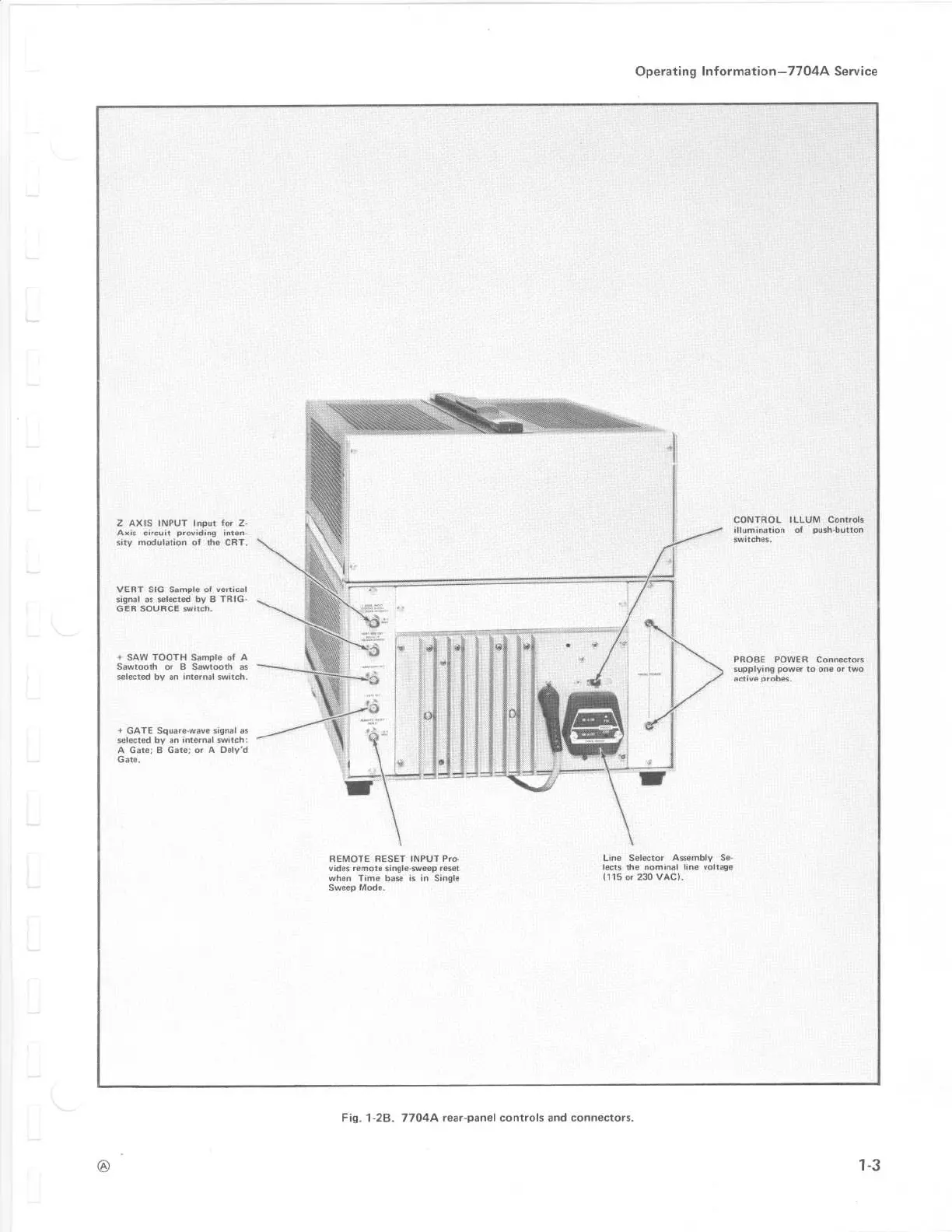

Fig . 1- 2Β . 7704 Α rear-pa n el co n trols an d connectors .
Operating Information-7704A Service
Line Selector
Assem b ly Se-
lects t h e nominal line voltage
(115 or 230 V AC) .
CO NT RO L I LLUM Controls
illumination of p us h - b utton
switc h es,
PR O BE PO WER Connectors
su pp lying p ower to one or two
active pro bes .
