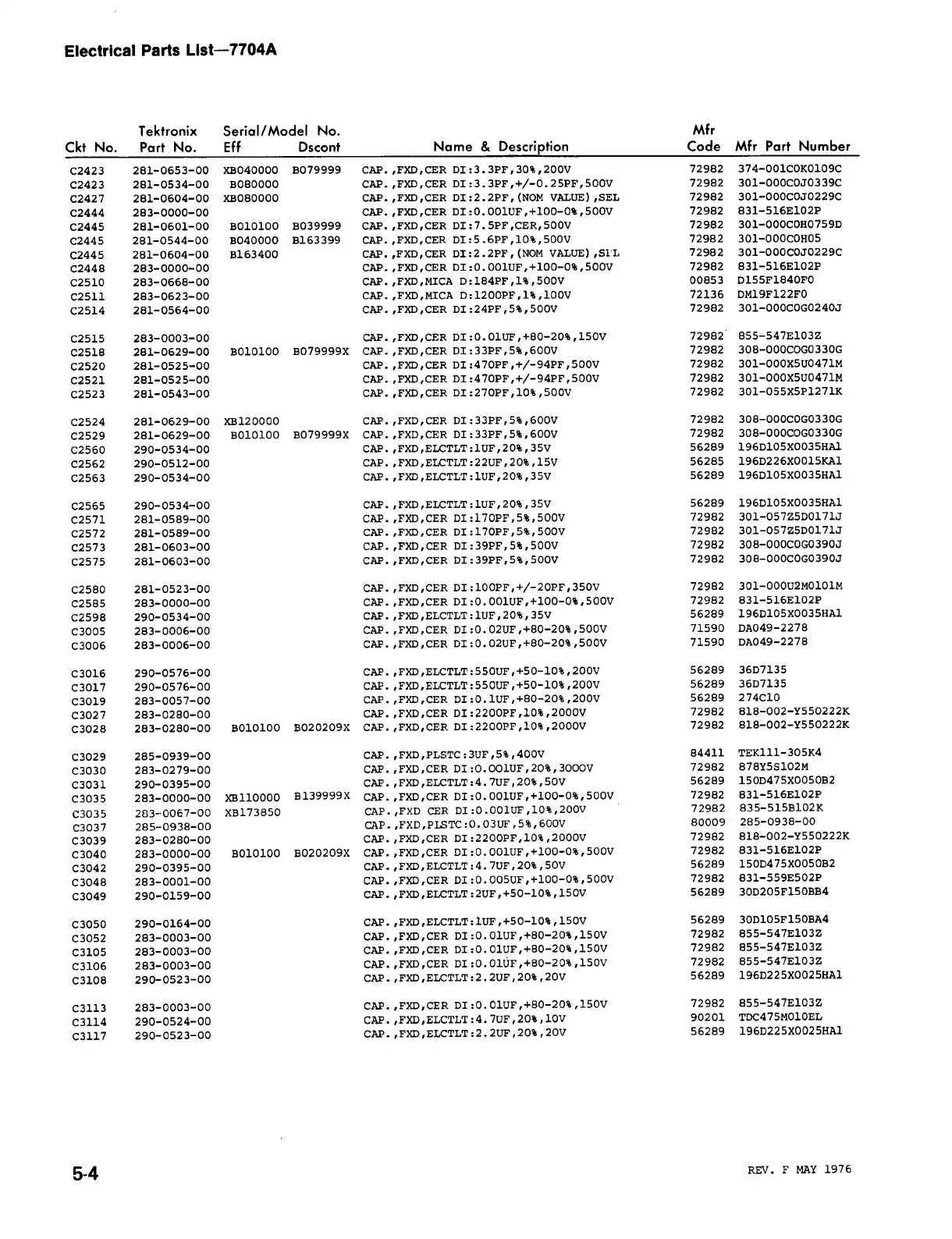

lectrical P arts List-7704A
5-
4
REV . Σ ΜΑΥ 1976
C k t No .
Te k t r onix
P a r t No .
Se r ial/ M o d el
E ff
No .
Dscont
N ame & Descri p tion
M f r
Code M f r P a r t Nu m b e r
C2423 281-0653-00 ΧΒ 040000 Β 079999
CAP .,FXD,CER DI :3 .3PF,30 % ,200V 72982 374 - 00 1COK0109C
C2423 281-0534-00 Β 080000
CAP .,FXD,CER DI :3 .3PF, +/-0 .25 ΡΣ ,500V 72982 301 -000COJ0339C
C2427 281-0604-00 ΧΒ 080000
CAP .,FXD,CER DI :2 .2PF,( ΝΟΜ V ALUE),SEL 72982 301
-000COJ0229C
C2444 283-0000-00
CAP .,FXD,CER DI : 0 . 001 UF, +100 - 0 Θ ,500V 72982 831 -516 Ε 102
Ρ
C2445 281-0601-00 Β 010100
Β 039999 CAP .,FXD,CER DI :7 . 5 PF,CER, 500 V 72982
301 -000COH0759D
C2445 281-0544-00 Β 040000
Β 163399 CAP .,FXD,CER DI :5 .6PF,10$, 500 V 72982 301 -000COH
05
C2445 281-0604-00 Β 163400
CAP .,FXD,CER DI :2 .2PF,( ΝΟΜ VALUE),51'L
72982 301 -000COJ0229C
C2448 283-0000-00
CAP .,FXD,CER D I : 0 . 001 UF, +100 -0 % ,500V
72982 831 -516 Ε 102 Ρ
C2510 283-0668-00
C AP .,FXD,MICA D :184PF,1 %
,
500
V 00853 D 155F1840F0
C2511
283-0623-00 CAP .,FXD,MICA D :1200PF,1 % ,100V
72136 DM19F122F0
C2514 281-0564-00
CAP .,FXD,CER DI :24PF,5$, 500
V 72982 301 -000COG0240J
C2515
283-0003-00 CAP .,FXD,CER DI
: 0 . 01 UF,+80 -20 % ,150V 72982 855 -547 Ε 103 Ζ
C2518 281-0629-00 Β 010100 Β 079999 Χ CAP .,FXD,CER DI
:33PF,
5
+ ά ,600V 72982 308 -000COG0330G
C2520 281-0525-00 CAP
.,FXD,CER DI :470PF, +/ -94PF, 500 V 72982 301 - 00 OX 5
U0471M
C2521 281-0525-00 CAP .,FXD,CER
DI :470PF, +/ -94PF, 500 V 72982 301 -000X 5 U0471M
C2523 281-0543-00
CAP .,FXD,CER DI :270PF,10 % ,500V 72982
301 -055 Χ 5Ρ 1271 Κ
C2524 281-0629-00 ΧΒ
120000 CAP .,FXD,CER DI :33PF, 5 + ά ,600V
72982 308 -000COG0330G
C2529 281-0629-00
Β
010100
Β 079999 Χ CAP .,FXD,CER D τ :33PF,58,600V
72982 308 -000COG0330G
C2560 290-0534-00
0AP .,FXD,ELCTLT : 1 UF,208,35V
56289 196D105X0035HA1
C2562 290-0512-00
0AP .,FXD,ELCTLT :22UF,20$,15V
56285 196D226XO 0 15KA1
C2563 290-0534-00
CAP .,FXD,ELCTLT : 1 UF,20 % ,35V
56289 196D105X0035HA1
C2565 290-0534-00
CAP .,FXD,ELCTLT : 1 UF,20 %
,35V 56289 196D105X0035HA1
C2571 281-0589-00
CAP .,FXD,CER DI :170PF,5$,500V
72982 301 -057Z5D0171J
C2572
281-0589-00 CAP
.,FXD,CER DI :170PF,5$, 500 V 72982 301
-057Z
5
D0171J
C2573 281-0603-00
0AP .,FXD,CER DI
:39PF,
5%
, 500 V 72982 308
-000COG0390J
C2575
281-0603-00 CAP .,FXD,CER
DI :39PF,58,500V 72982 308
-000COG0390J
C2580
281-0523-00
CAP .,FXD,CER DI : 1 00PF,
+/
-20PF,350V
72982 301 -000U2MO 101M
C2585
283-0000-00 0AP
.,FXD,CER DI :
0
. 001UF, +100-08,500V
72982 831 -516 Ε 102 Ρ
C2598 290-0534-00
C AP .,FXD,ELCTLT : 1 UF,208,35V
56289 196D105X0035HA1
C3005
283-0006-00
CAP .,FXD,CER DI :0 .02UF, +80-20 % , 500 V
71590 D A049 -2278
C3006
283-0006-00
CAP .,FXD,CER DI :0 .02UF, +80-20 % , 500
V 71590 D A049 -2278
C3016 290-0576-00
CAP . ι FXD,ELCTLT :550UF, +50
-10$,200V 56289 36D7135
C3017 290-0576-00
CAP .,FXD,ELCTLT : 550 UF, +50
-108,200V 56289 36D7135
C3019 283-0057-00
CAP .,FXD,CER DI :O
.lUF, +80-20 % ,200V 56289 274C10
C3027 283-0280-00
C AP .,FXD,CER D2 :2200PF,10 %
,2000V 72982
818 - 002 -Υ 550222 Κ
C3028
283-0280-00 Β 010100 Β 020209 Χ CAP
.,FXD,CER Dτ :2200 ΡΣ ,10+ ά ,2000 ν
72982 818 - 002 -Υ 550222 Κ
C3029
285-0939-00
0AP .,FXD,PLSTC :3UF,5%,400V
84411 ΤΕΚ 111-305 Κ 4
C3030
283-0279-00 CAP
.,FXD,CER DI :
0
. 00 1UF,20 % ,3000V
72982 878Y 5 S102M
C3031
290-0395-00
CAP .,FXD,ELCTLT :4 .7UF,20 % , 50
V 56289 150D475XO 0 50 B2
C3035
283-0000-00 ΧΒ 110000
Η 139999
Χ
ςΑΡ

F XD,CERDI :O .OOlUF, +100 -0 %
,500V 72982 831 -516 Ε 102
Ρ
C3035 2 ΙΙ 3- 0067-00
ΧΒ 173850
CAP .,FXD C ER D Ι :0 .001υΣ ,10+
ε ,200 ν 72982
835 -515 Β 102 Κ
C3037 285-0938-00
C AP .,FXD,PISTC :0 .03UF,5 %
,600V
80009 285-0938-00
C3039 283-0280-00
CAP .,FXD,CER DI :2200PF,10+
έ ,2000V 72982 818 - 002 -
Υ 550222 Κ
C3040 283-0000-00 Β 010100
Β 020209 Χ CAP .,FXD,CER DI : 0 . 001
UF, +100 -0 % ,500V 72982
831 -516 Ε 102 Ρ
C3042 290-0395-00
CAP .,FXD,ELCTLT :4 .7UF,20 %
, 50 V
56289 150D475XO 05 OB2
C3048 283-0001-00
CAP .,FXD,CER DI : 0
. 005 UF, +100 -0 % ,500V
72982 831 -559 Ε 502 Ρ
C3049 290-0159-00
CAP .,FXD,ELCTLT
:2UF, +50 -108,150V
56289 30D205F150BB4
C3050 290-0164-00
CAP .,FXD,ELCTLT
:lUF,+50-108,150V
56289 30D105F150BA4
C3052 283-0003-00
0AP .,F Χ D,CER
DI : 0 . 01 UF, +80 -20 % ,150V
72982 855 -547 Ε 103
Ζ
C3105
283-0003-00 0AP .,F Χ
D,CER DI : 0 . 01 UF,
+
80 -20$,150V
72982 855 -547 Ε 103
Ζ
C3106 283-0003-00
CAP
.,FXD,CER DI :O .OlUF, +80
-208,150V 72982 855 -547
Ε 103 Ζ
C3108
290-0523-00 CAP
.,FXD,ELCTLT :2 .2UF,20+k,20V
56289 196D225X0025HA1
C3113
283-0003-00
CAP .,FXD,CER DI : 0 . 01 UF, +80
-20%,150V 72982
855 -547 Ε 103 Ζ
C3114
290-0524-00
CAP .,FXD,ELCTLT :4 .7UF,20+
ά ,lOV
90201 T DC475MO10EL
C3117
290-0523-00
0AP .,FXD,ELCTLT :2 .2UF,20$,20V
56289
196D225X0025HA1
