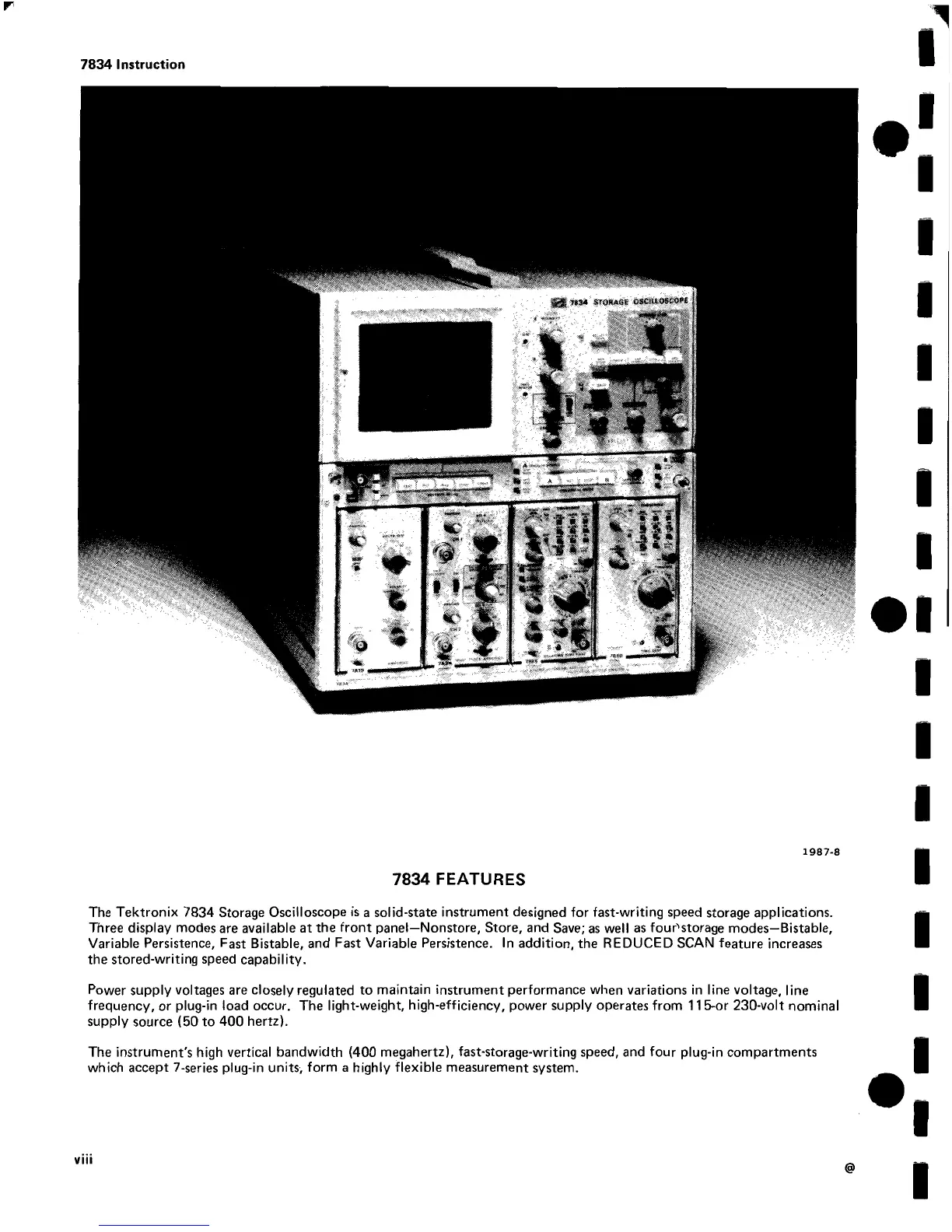

7834 Instruction
7834
FEATURES
1987-8
The Tektronix 7834 Storage
Oscilloscope is a solid-state instrument designed
for fast-writing speed storage applications .
Three display modes are
available at the front panel-Nonstore, Store, and Save ; as well
as fourlstorage modes-Bistable,
Variable Persistence, Fast
Bistable, and Fast Variable Persistence . In addition,
the REDUCED SCAN feature increases
the stored-writing speed
capability .
Power supply voltages are
closely regulated to maintain instrument
performance when variations in line voltage, line
frequency, or plug-in load
occur . The light-weight, high-efficiency,
power
supply
operates from 115-or 230-volt nominal
supply source (50 to 400 hertz)
.
The instrument's high
vertical bandwidth (400 megahertz), fast-storage-writing
speed, and four plug-in compartments
which accept 7-series
plug-in units, form a highly flexible measurement system
.
