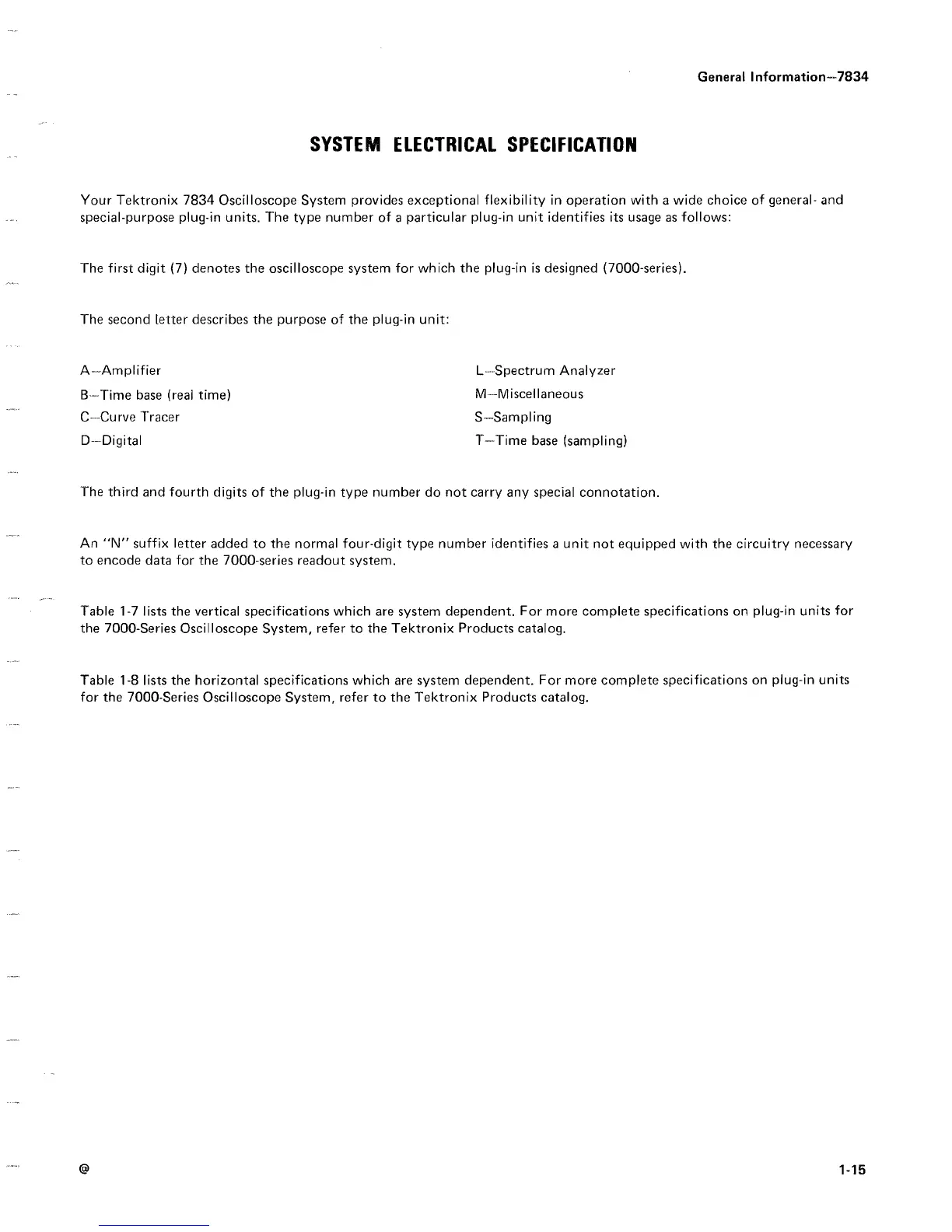

SYSTEM ELECTRICAL SPECIFICATION
General Information--7834
Your Tektronix 7834 Oscilloscope System provides exceptional flexibility in operation with a wide choice of general- and
special-purpose plug-in units . The
type
number of a particular plug-in unit identifies its usage as follows :
The first digit (7) denotes the oscilloscope system for which the plug-in is designed (7000-series)
.
The second letter describes the purpose of the plug-in unit :
A---Amplifier

L---Spectrum Analyzer
B---Time base (real time)

M--Miscellaneous
C---Curve
Tracer

S-Sampling
D--Digital

T-Time base (sampling)
The
third and fourth digits of the plug-in type number do not carry any special connotation .
An "N" suffix letter added to the normal four-digit type number identifies a unit not equipped with the circuitry necessary
to encode data for the 7000-series readout system .
Table 1-7 lists the vertical specifications which are system dependent . For more complete specifications on plug-in units for
the 7000-Series Oscilloscope System, refer to the Tektronix Products catalog .
Table 1-8 lists the horizontal specifications which are system dependent . For more complete
specifications on plug-in units
for the 7000-Series
Oscilloscope
System, refer
to
the Tektronix Products catalog .
