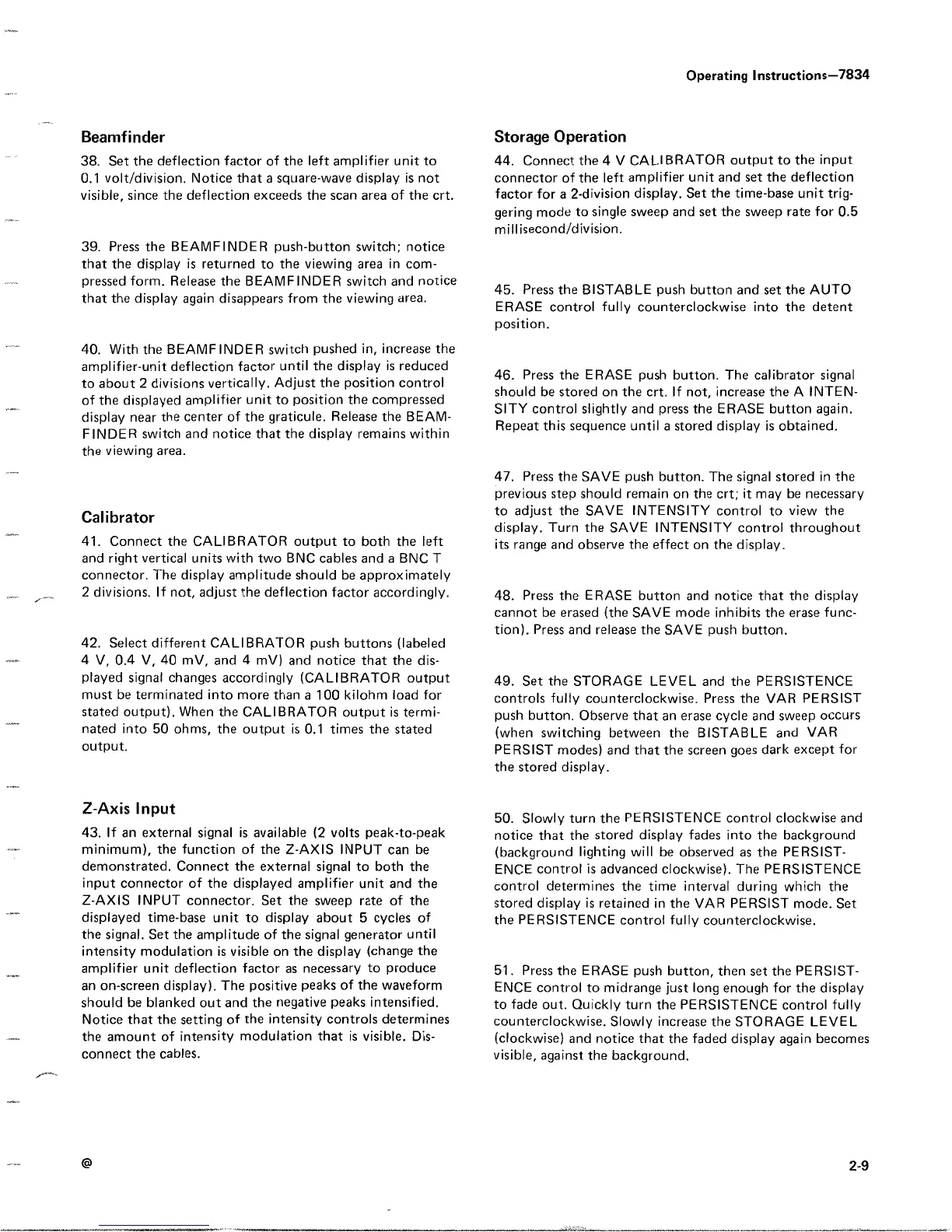

Bearrmfinder
38
.
Set the
deflection
factor
of the
left
amplifier
unit
to
0
.1
volt/division
.
Notice
that
a
square-wave
display
is
not
visible,
since
the
deflection
exceeds
the scan
area
of the
crt
.
39
.
Press
the
BEAMFINDER
push-button
switch
;
notice
that
the
display
is
returned
to the
viewing
area
in
com-
pressed
form
.
Release
the
BEAMFINDER
switch
and
notice
that
the
display
again
disappears
from
the
viewing
area
.
40
.
With
the
BEAMFINDER
switch
pushed
in,
increase
the
amplifier-unit
deflection factor
until
the display
is
reduced
to
about
2
divisions
vertically
.
Adjust
the
position
control
of the
displayed
amplifier
unit
to
position
the
compressed
display
near the center
of
the
graticule
.
Release the
BEAM-
FINDER
switch
and
notice
that
the
display
remains
within
the
viewing
area
.
Calibrator
41
.
Connect
the
CALIBRATOR
output
to
both
the
left
and
right
vertical
units
with
two
BNC
cables
and
a
BNC
T
connector
.
The
display
amplitude
should
be
approximately
2
divisions
.
If
not,
adjust the deflection
factor
accordingly
.
42
.
Select
different
CALIBRATOR
push
buttons
(labeled
4
V,
0
.4
V,
40
mV,
and
4
mV)
and
notice
that
the
dis-
played
signal
changes
accordingly
(CALIBRATOR
output
must
be
terminated
into
more
than
a
100
kilohm
load for
stated
output)
.
When
the
CALIBRATOR
output
is
termi-
nated
into
50
ohms,
the
output
is
0
.1
times the
stated
output
.
Z-Axis
Input
43
.
If
an
external
signal
is
available
(2
volts
peak-to-peak
minimum),
the
function
of the
Z-AXIS
INPUT
can
be
demonstrated
.
Connect
the external
signal
to
both
the
input
connector
of
the
displayed
amplifier unit
and
the
Z-AXIS
INPUT
connector
.
Set the
sweep
rate
of the
displayed time-base
unit to
display
about
5 cycles of
the
signal
.
Set the
amplitude
of the
signal
generator
until
intensity
modulation
is
visible
on
the
display
(change
the
amplifier
unit
deflection
factor
as
necessary to
produce
an
on-screen
display)
.
The
positive
peaks
of the
waveform
should
be
blanked
out
and
the
negative
peaks
intensified
.
Notice
that the
setting
of
the
intensity
controls
determines
the
amount
of
intensity
modulation
that
is
visible
.
Dis-
connect
the
cables
.
Storage
Operation
Operating
Instructions-7834
44
.
Connect
the 4
V CALIBRATOR
output
to
the input
connector
of
the
left
amplifier
unit
and
set
the
deflection
factor
for a
2-division
display
.
Set the
time-base
unit
trig-
gering
mode
to
single
sweep
and
set
the
sweep
rate
for
0
.5
millisecond/division
.
45
.
Press
the
BISTABLE
push
button
and
set
the
AUTO
ERASE
control
fully
counterclockwise
into
the
detent
position
.
46
.
Press
the
ERASE
push
button
.
The
calibrator
signal
should
be stored
on
the
crt
.
If
not,
increase
the
A
INTEN-
SITY
control
slightly
and
press
the
ERASE
button
again
.
Repeat
this
sequence
until
a
stored display
is
obtained
.
47
.
Press
the
SAVE
push
button
.
The
signal
stored
in
the
previous
step
should remain
on
the
crt
;
it
may
be
necessary
to adjust the
SAVE
INTENSITY
control to
view
the
display
.
Turn
the
SAVE
INTENSITY
control
throughout
its
range
and
observe
the
effect
on
the display
.
48
.
Press
the
ERASE
button
and
notice that the display
cannot
be
erased
(the
SAVE
mode
inhibits
the
erase
func-
tion)
.
Press
and
release
the
SAVE
push
button
.
49
.
Set
the
STORAGE
LEVEL
and
the
PERSISTENCE
controls
fully
counterclockwise
.
Press
the
VAR
PERSIST
push
button
.
Observe
that an
erase
cycle
and
sweep
occurs
(when
switching
between
the
BISTABLE
and
VAR
PERSIST
modes)
and
that
the screen goes
dark
except
for
the stored display
.
50
.
Slowly
turn the
PERSISTENCE
control
clockwise
and
notice that the stored display fades into the
background
(background
lighting
will
be
observed
as
the
PERSIST-
ENCE
control
is
advanced
clockwise)
.
The
PERSISTENCE
control
determines
the
time
interval
during
which
the
stored display
is
retained
in
the
VAR
PERSIST
mode
.
Set
the
PERSISTENCE
control
fully
counterclockwise
.
51
.
Press
the
ERASE
push
button,
then
set
the
PERSIST-
ENCE
control
to
midrange
just
long
enough
for
the display
to
fade
out
.
Quickly
turn the
PERSISTENCE
control
fully
counterclockwise
.
Slowly
increase
the
STORAGE
LEVEL
(clockwise)
and
notice that the
faded
display again
becomes
visible,
against
the
background
.
