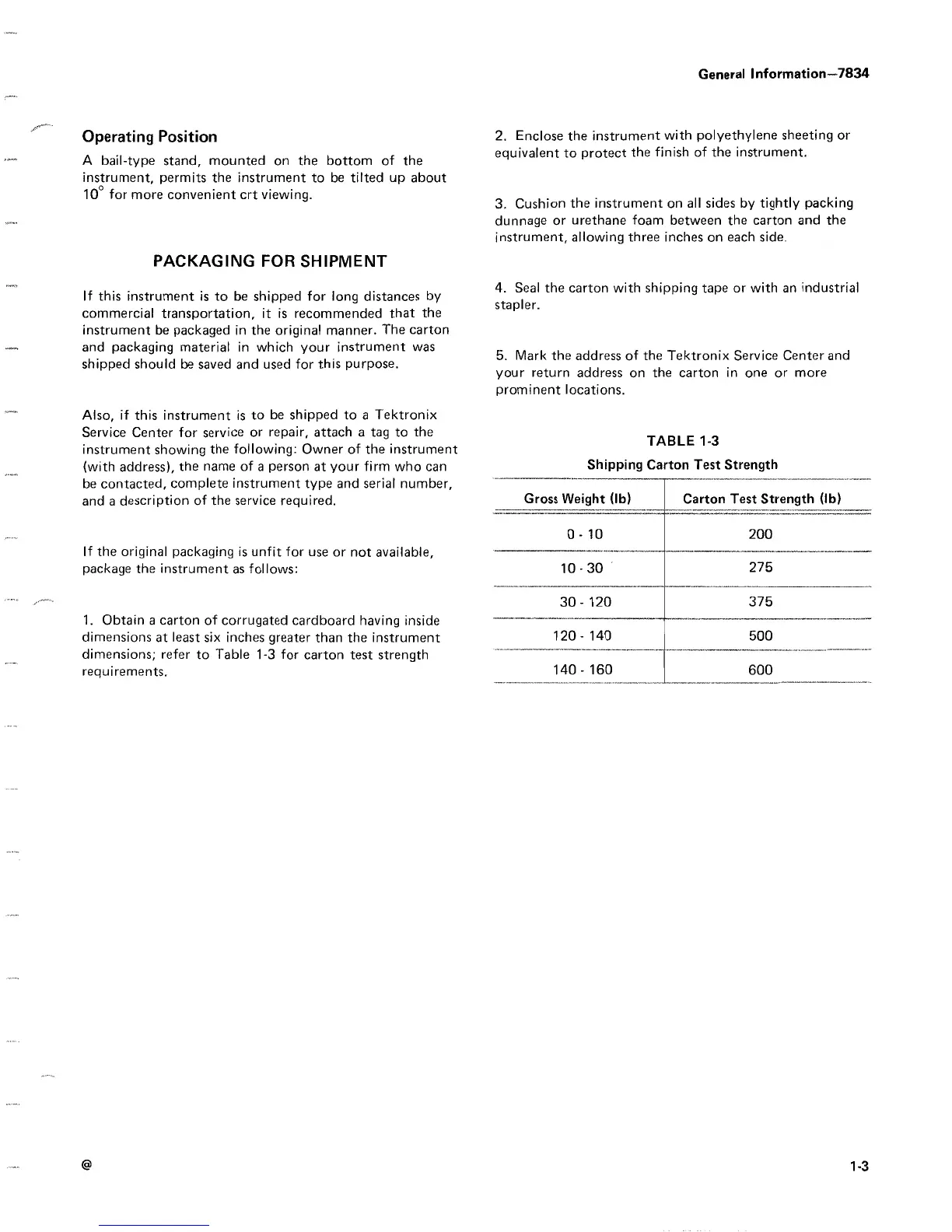

Tektronix 7834

Operating
Position

2 . Enclose the instrument
with
polyethylene sheeting or
equivalent to protect the finish of
the instrument
.
A bail-type
stand,
mounted
on the bottom of the
instrument, permits the instrument to be tilted up about
10 ° for more convenient crt viewing .
PACKAGING FOR SHIPMENT
If this instrument
is to be
shipped for long
distances by
commercial transportation, it is recommended
that
the
instrument be packaged in the original manner . The carton
and packaging material in which your instrument was
shipped should be saved and used for this purpose .
Also, if this instrument is to be shipped to a Tektronix
Service Center for service or repair, attach a tag to the
instrument showing the following : Owner of the instrument
(with address), the name of a person at your firm who can
be contacted, complete instrument type and serial number,
and a description of the service required .
If the original packaging is unfit for use or not available,
package the instrument as follows :
1 . Obtain a carton of corrugated cardboard having inside
dimensions at least six inches greater than the instrument
dimensions ; refer to Table 1-3 for carton test strength
requirements .
3 . Cushion the instrument on all sides by tightly packing
dunnage or urethane foam between the carton and the
instrument, allowing three inches on each side .
4 . Seal the carton with shipping tape or with an industrial
stapler .
5 . Mark the address of the Tektronix Service Center and
your return address on the carton in one or more
prominent locations .
Shipping Carton Test Strength
TABLE 1-3
General Information-7834
Gross Weight (Ib) I Carton Test Strength (Ib)
0-10 200
10-30
275
30- 120 375
120-
140 500
140- 160 600
