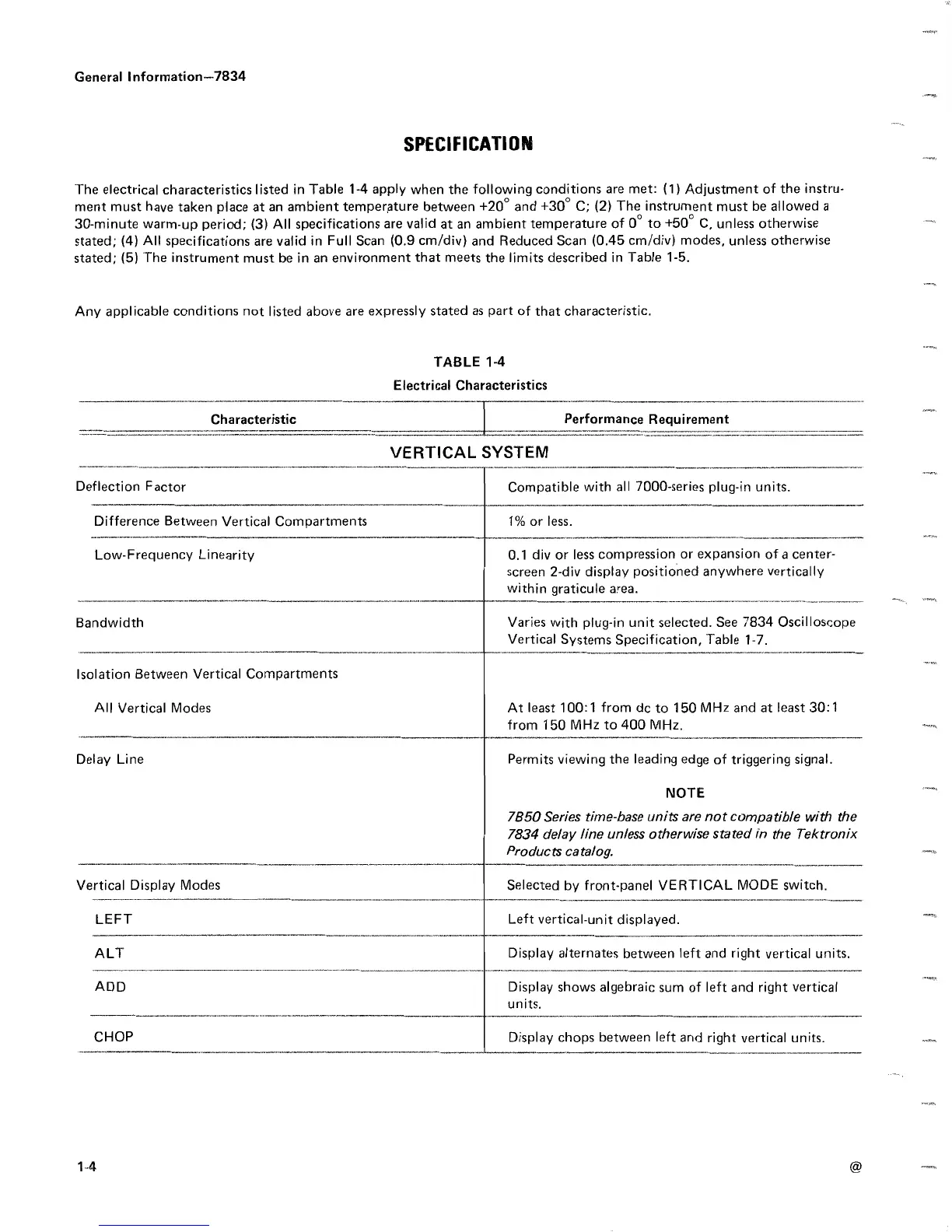

General Information--7834
The electrical characteristics listed in
Table 1-4 apply when the following conditions are met : (1)
Adjustment of the instru-
ment must have taken place at an ambient temperature
between +20 ° and +30 ° C ; (2) The instrument
must be allowed a
30-minute warm-up period ; (3) All specifications
are valid at an ambient temperature of 0 ° to +50 ° C,
unless otherwise
stated ; (4) All specifications are valid
in Full Scan (0 .9 cm/div) and Reduced Scan (0 .45 cm/div)
modes, unless otherwise
stated ; (5) The instrument must
be in an environment that meets the limits described in
Table 1-5 .
Any applicable conditions not listed above
are expressly stated as part of that characteristic .
Deflection Factor
C
har
ac
t eristic
Difference Between Vertical Compartments
Low-Frequency
Linearity
Bandwidth
Isolation Between Vertical Compartments
All Vertical Modes
Delay Line
Vertical Display Modes
LEFT
ALT
ADD
CHOP
SPECIFICATION
TABLE 1-4
Electrical Characteristics
Performance
Requirement
1 % or less .
Left vertical-unit displayed .
NOTE
VERTI CAL SYSTEM
._ . . . ._-____

t_---
Compatible with all 7000-series plug-in units .
0 .1 div or
less compression or expansion of a center-
screen 2-div display
positioned anywhere vertically
within
graticule area .
Varies with plug-in unit selected . See 7834
Oscilloscope
Vertical Systems Specification, Table 1-7 .
At least 100 :1 from do to 150 MHz and at least 30 :1
from 150 MHz to 400 MHz .
Permits viewing the leading edge of triggering signal .
7850 Series time-base units are not compatible with the
7834
delay line unless otherwise stated in the Tektronix
Products
catalog .
Selected by front-panel VERTICAL MODE switch .
Display alternates between left and right vertical units .
Display shows algebraic
sum
of
left and right vertical
units .
Display chops between left and right vertical units .
