Tektronix 7834 User Manual

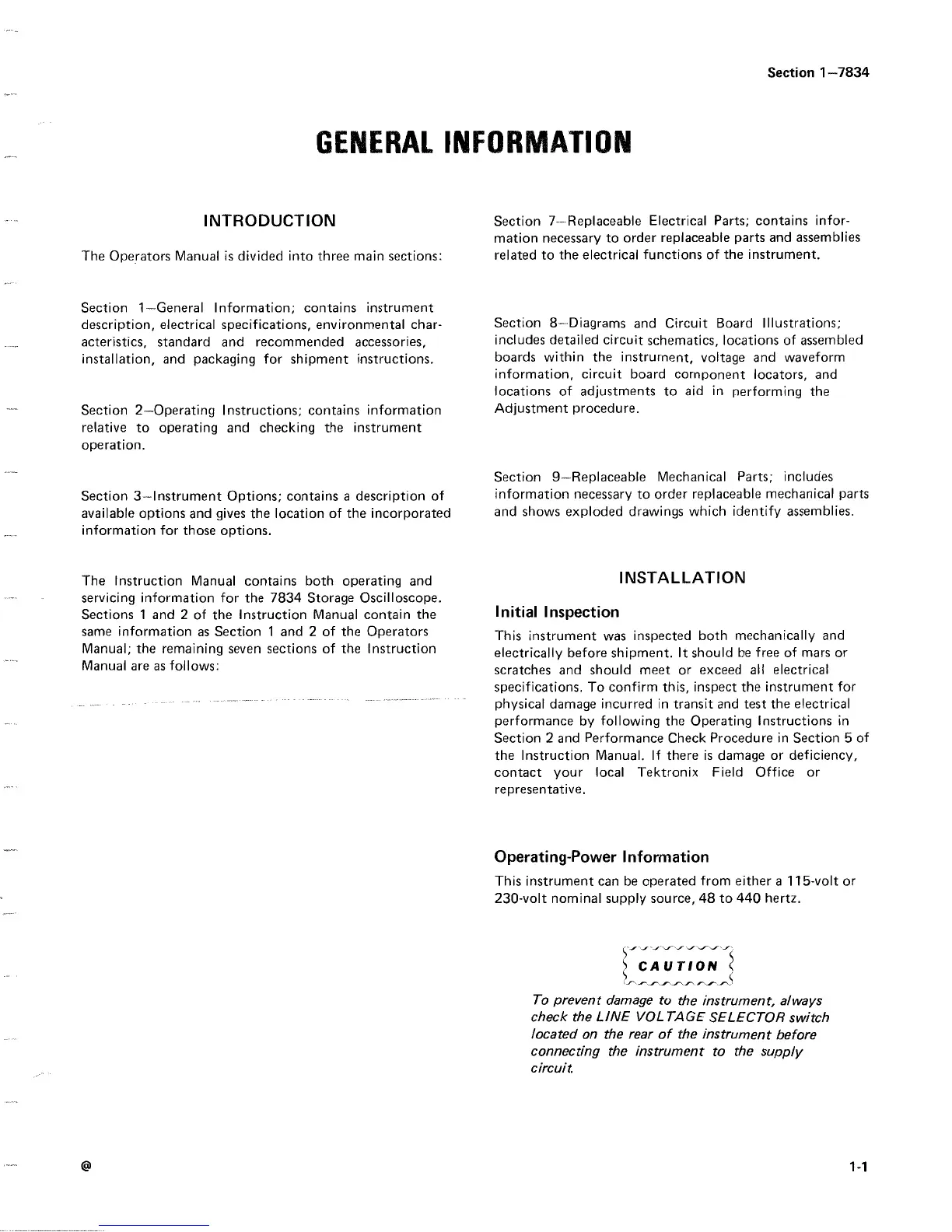

INTRODUCTION
G

AL INFOR
The Operators Manual is divided into three main sections :
Section 1-General Information ; contains instrument
description, electrical specifications, environmental char-
acteristics, standard and recommended accessories,
installation, and packaging for shipment instructions .
Section 2-Operating Instructions ; contains information
relative to operating and checking the instrument
operation .
Section 3--Instrument Options
;
contains a description of
available options and gives the location of the incorporated
information for those options .
The Instruction Manual contains both operating and
servicing information for the 7834 Storage Oscilloscope .
Sections 1 and 2
of
the Instruction Manual contain the
same information as Section 1 and 2 of the Operators
Manual ; the remaining seven sections of the Instruction
Manual are as follows
:
ATr
O
Section T-Replaceable Electrical Parts ; contains infor-
mation necessary to order replaceable parts and assemblies
related to the electrical functions of the instrument .
Section 8--Diagrams and Circuit Board Illustrations
;
includes detailed circuit schematics, locations of assembled
boards within the instrument, voltage and waveform
information, circuit board component locators, and
locations of adjustments to aid in performing the
Adjustment procedure .
Section 9-Replaceable Mechanical Parts ; includes
information necessary to order replaceable mechanical parts
and shows exploded drawings which identify assemblies .
Initial Inspection
INSTALLATION
Section 1-7834
This instrument was inspected both mechanically and
electrically before shipment . It should be free of mars or
scratches and should meet or exceed all electrical
specifications . To confirm this, inspect the instrument for
physical damage incurred in transit and test the electrical
performance by following the Operating Instructions in
Section 2 and Performance Check Procedure in Section 5 of
the Instruction Manual . If there is damage or deficiency,
contact your
local Tektronix Field Office or
representative .
Operating-Power Information
This
instrument can
be
operated from either a
115-volt
or
230-volt nominal supply source, 48 to 440 hertz
.
CAUTION
To
prevent
damage to the
instrument, always
check the LINE VOL TAGS SELECTOR switch
located on the rear of the instrument before
connecting the instrument to the supply
circuit .
