VERTICAL
SIGNAL
FROM
VERTICAL
INTERFACE
X-Y
INHIBIT
FROM
READOUT
SYSTEM
AUXILIARY
Y-AXIS
SIGNAL
FROM
MAIN
INTERFACE
Y-READOUT
SIGNAL
FROM
READOUT
SYSTEM
Delay
Line
High-Frequency
Amplifier
AUXILIARY
INPUT
AMPLIFIER
01634,
01700
01624,
01720
01694,
01710
Delay
Line
DL650
provides
approximately
65
nanoseconds
of delay
(for
the
vertical
signal)
to
allow
the
horizontal
circuits
time
to
initiate
a
sweep
before
the
vertical signal
reaches the
vertical
deflection
plates
of
the
crt
.
This
allows
the
instrument
to display
the
leading
edge
of the
signal
originating
the
trigger
pulse
when
using
internal
triggering
.
The
delay
line
used
in
this
instrument
has
a
characteristic
impedance
of
100
ohms
differentially
.
It is
of
the
coaxial
type
that
does
not
produce
preshoot
or
phase
distortion
in
the
crt
display
.
The
High-Frequency
Amplifier
stage,
consisting
primarily
of
integrated
circuit
U1685,
provides
a
50
ohm
input
impedance
(100
ohms
differentially) for
the
Vertical
Amp-
lifier
circuit
to
permit
accurate
delay-line
termination
.
The
components
connecting
the
input
signal
to
U
1685
provide
forward
termination
and
compensation
for
the
delay
line
.
Components
R1658
and
C1658
provide
adjustable
high-
frequency
compensation
.
Resistors
R
1688
and
R
1682
set
the
quiescent
operating
level
of
U1685
while
R1683
and
R
1687
are
selected
to
accurately
set
the
gain
of the
stage
.
Resistors
R1683
and
R1687
connected
to
pins
6
and
12
provide
a
signal
path
for
the
output
of the
Auxiliary
Y-Axis
Amplifier
stage
.
The
Vert Gain
adjustment
R1730
sets
the

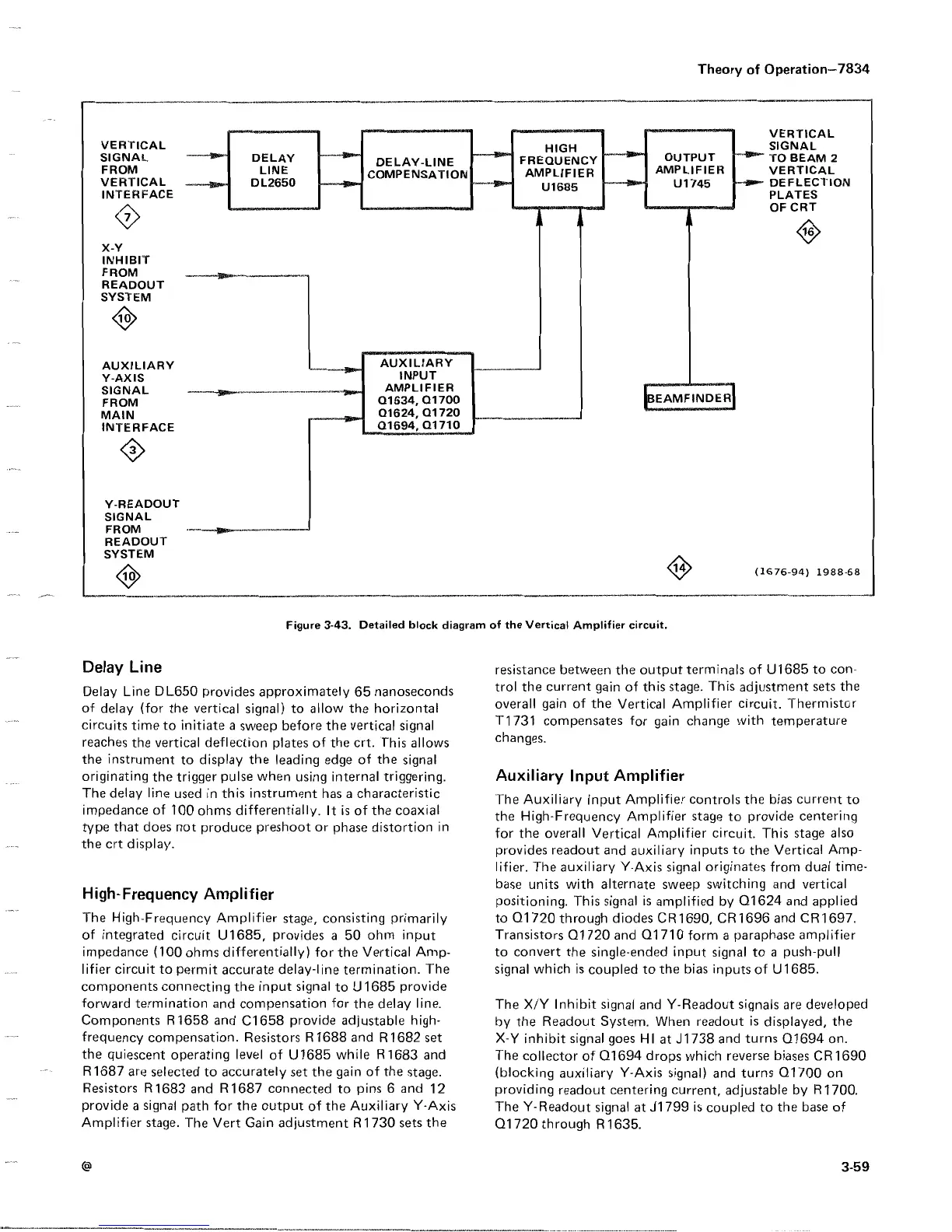

Figure
3-43
.
Detailed
block
diagram
of
the
Vertical
Amplifier
circuit
.
Auxiliary
Input
Amplifier
Theory
of
Operation-7834
VERTICAL
SIGNAL
TO
BEAM
2
VERTICAL
DEFLECTION
PLATES
OF
CRT
(1676-94)
1988-68
resistance
between
the
output
terminals
of
U1685
to con-
trol
the
current
gain
of
this
stage
.
This
adjustment
sets
the
overall
gain of the
Vertical
Amplifier
circuit
.
Thermistor
T1731
compensates
for
gain
change
with
temperature
changes
.
The
Auxiliary
Input
Amplifier
controls the
bias
current to
the
High-Frequency
Amplifier
stage
to
provide
centering
for
the
overall
Vertical
Amplifier
circuit
.
This
stage
also
provides
readout
and
auxiliary
inputs to the
Vertical
Amp-
lifier
.
The
auxiliary
Y-Axis
signal
originates
from
dual time-
base
units
with
alternate
sweep
switching
and
vertical
positioning
.
This
signal
is
amplified
by
01624
and
applied
to
01720
through
diodes
CR1690,
CR1696
and
CR1697
.
Transistors
01720
and
01710
form
a
paraphase
amplifier
to
convert
the single-ended
input
signal to
a
push-pull
signal
which
is
coupled
to
the
bias
inputs of
U1685
.
The
X/Y
Inhibit
signal
and
Y-Readout
signals
are
developed
by
the
Readout
System
.
When
readout
is
displayed,
the
X-Y
inhibit
signal
goes
HI
at
J1738
and
turns
01694
on
.
The
collector
of
01694
drops
which
reverse
biases
CR
1690
(blocking
auxiliary
Y-Axis
signal)
and
turns
01700
on
providing
readout
centering
current,
adjustable
by
R1700
.
The
Y-Readout
signal at
J1799
is
coupled
to
the
base of
01720
through
R1635
.
3-
5
9
