Tektronix 7834

REAR-PANEL CONTROLS
AND CONNECTORS
REMOTE
ERASE INPUT-Input for external operation of the ERASE
function .
REMOTE SAVE INPUT-Provides access for external
operation of the SAVE function .
REMOTE STORAGE GATE
INPUT--Input for external operation of the
transfer function (FAST BISTABLE
and
FAST VAR PERSIST only) .
PROBE POWER (2)-Connectors
provide power to active probe system (deleted by Option 1) .
CONTROL
ILLUMINATION-Sets illumination level of the A
and B INTENSITY indicators and of the
lighted
push-button switches on
associated plug-in units .
LINE VOLTAGE SELECTOR-Sets
instrument to 115-volt or 230-volt nominal line
operation .
REMOTE RESET
INPUT-Input for activating single-sweep
function of time-base unit(s) .
+GATE OUT-Output
signal derived from either the A Gate, B Gate, or
the A Dly'd Gate .
+SAWTOOTH
OUT-Sawtooth output signal derived
from the A or B time-base unit .
VERT SIG OUT-Output signal derived
from vertical signal as selected by A TRIGGER
SOURCE switch .
Z-AXIS INPUT-Input for external intensity modulation of the crt display .

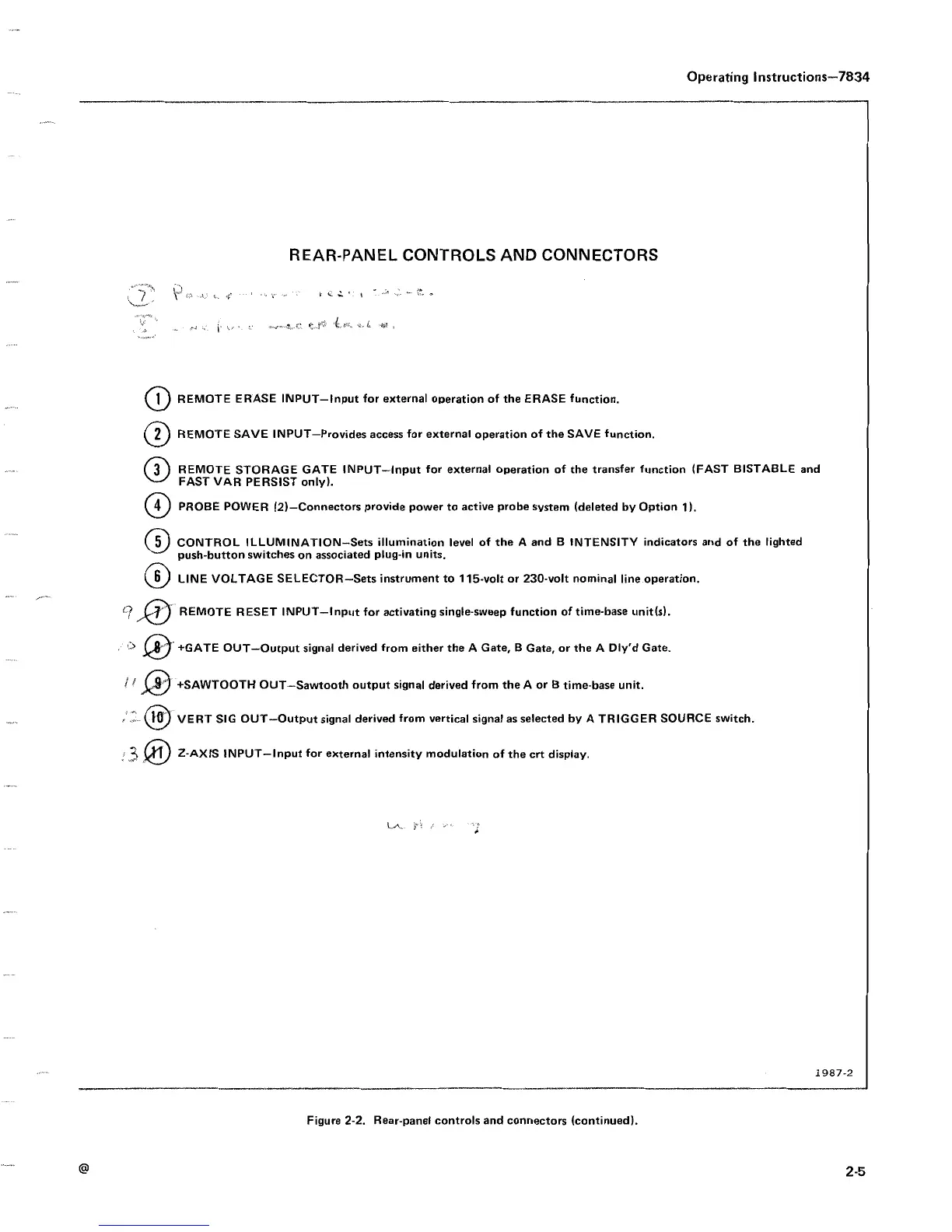

Figure 2-2 . Rear-panel
controls and connectors (continued) .
