Tektronix 7834

REMOTE ERASE
INPUT
REMOTE SAVE
INPUT
r
REMOTE STORAGE
GATEINPUT
AC ---
LINE OPERATING VOLTAGES
TO ALL
CIRCUITS

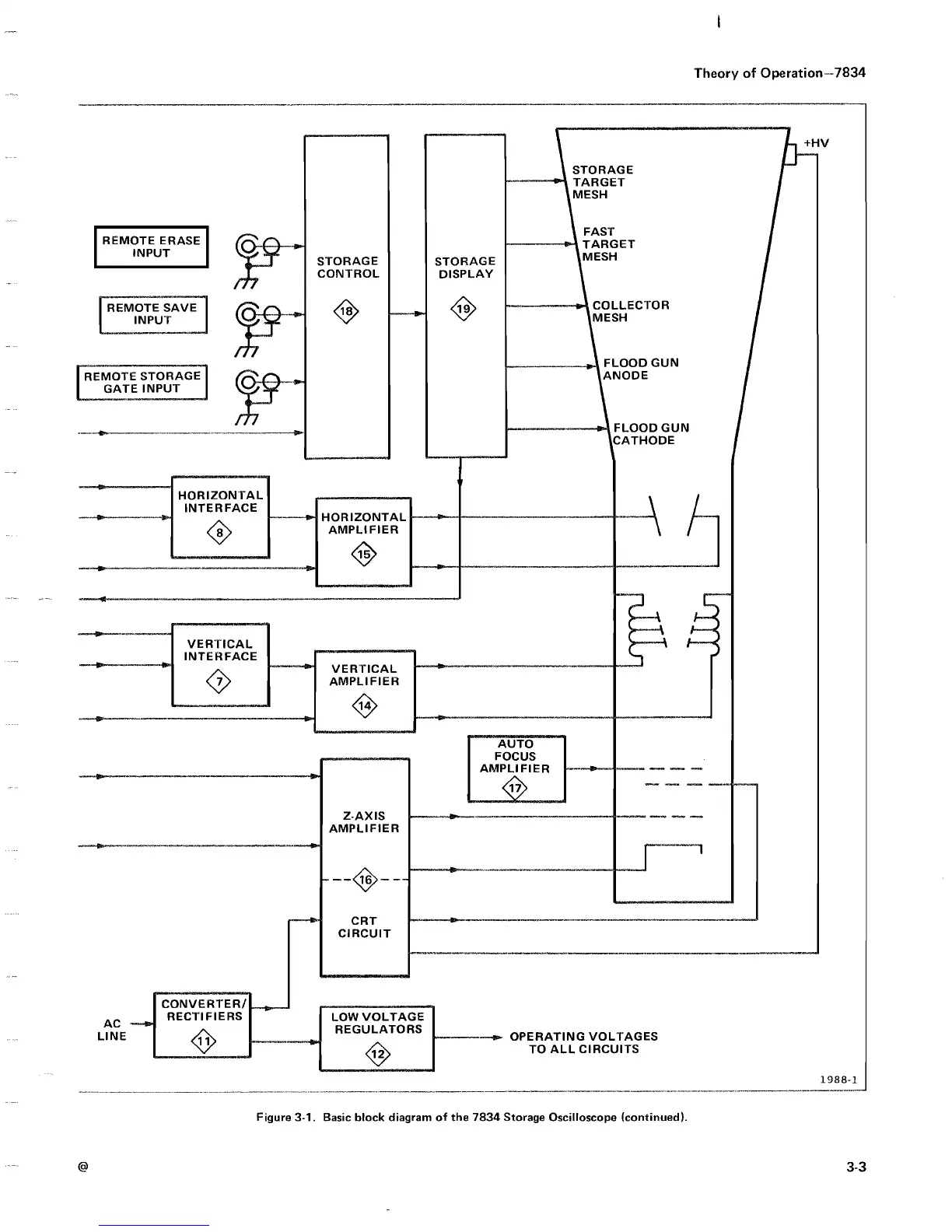

Figure 3-1 . Basic block diagram of the 7834 Storage Oscilloscope (continued)
.
Theory of Operation-7834
+HV
1988-1
