Removal and Installation Procedures
6-16 AFG3000 Series Arbitrary/Function Generators Service Manual

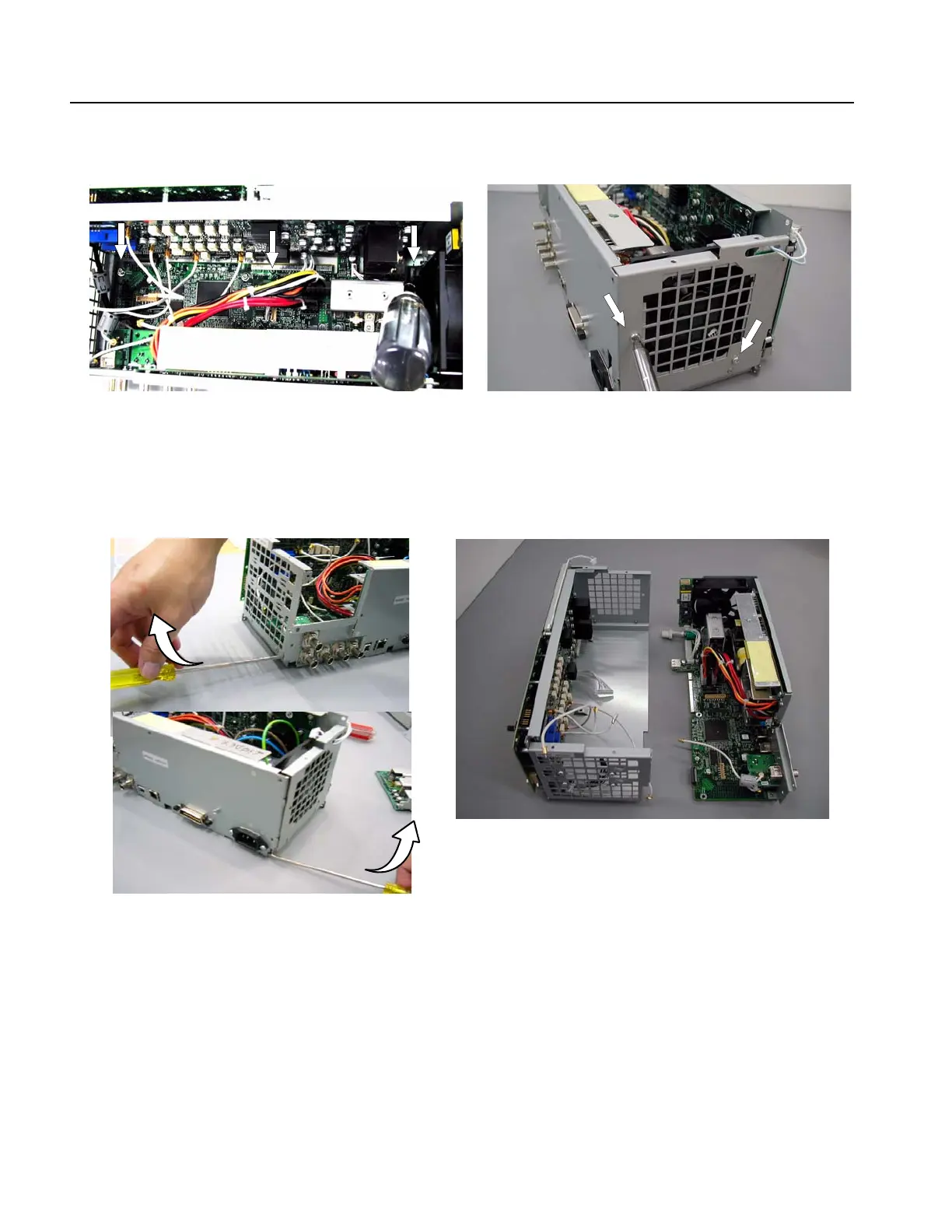

Figure 6-10: Separation of the rear module and main chassis
4. Use the flat-blade screwdriver to loosen the rear module and main chassis.
5. Pull out the rear module toward the rear.
Figure 6-11: Pull out the rear module
Installation. To install, reverse this procedure.
