Performance Verification
4-24 AFG3000 Series Arbitrary/Function Generators Service Manual
3. Connect the arbitrary/function generator to the DMM as shown in Figure 4-5.
Be sure to connect the 50 Ω terminator to the arbitrary/function generator
Output connector side.

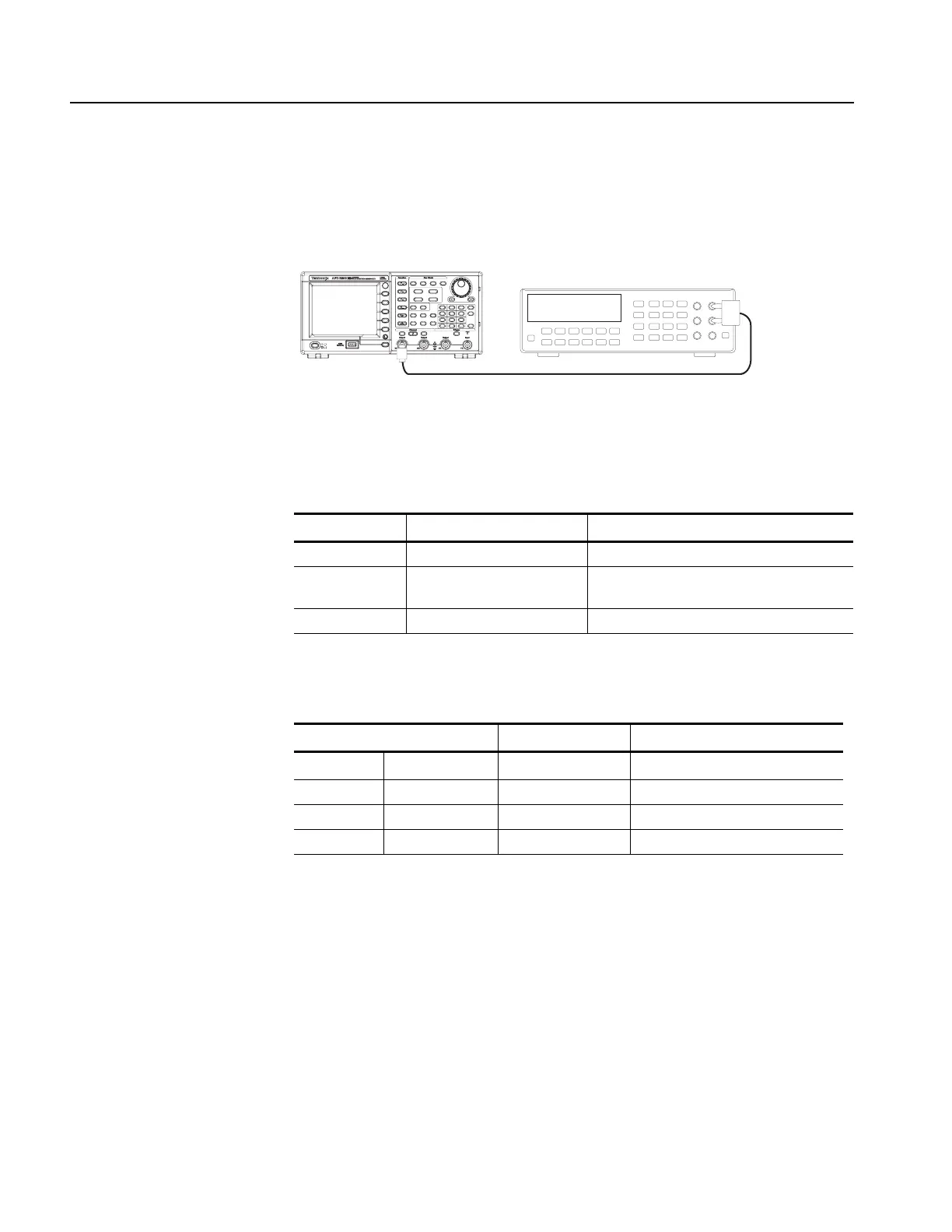

Figure 4-5: DC offset tests
4. Set up the arbitrary/function generator using the following steps:
5. Verify that each offset measurement is within the range specified in the
following tables.
Select menu Setting Operation
Function DC More... (front) > More Waveform Menu > DC
Offset + 5.000 V
+ 2.500 V (AFG325x)
Offset/Low (front)
Channel 1 Output On On (front)
AFG3011 Measurement Range
Function Offset
DC + 5.000 Vdc Vdc (5.000 × CF ± 0.110) Vdc
DC 0.000 Vdc Vdc ± 0.010 Vdc
DC – 5.000 Vdc Vdc (– 5.000 × CF ± 0.110) Vdc
DMM
50 Ω BNC coaxial cable + 50 Ω terminator
CH1 Output
AFG3000 series
BNC-Dual banana
adapter
