Performance Verification
AFG3000 Series Arbitrary/Function Generators Service Manual 4-35
Rise-Fall time Test
This test verifies the pulse rise time of the arbitrary/function generator.
1. Connect the arbitrary/function generator to the oscilloscope as shown in
Figure 4-10.

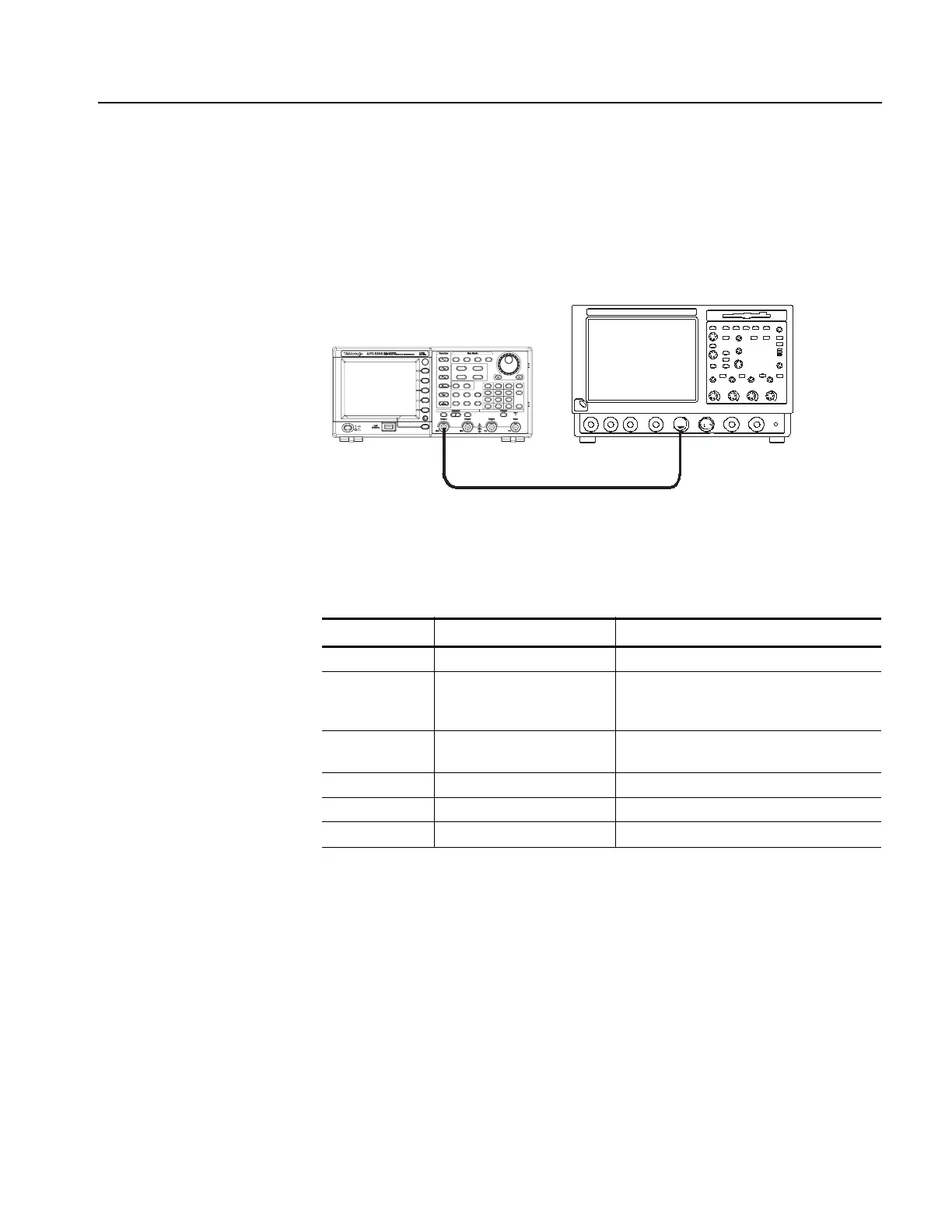

Figure 4-10: Rise-Fall time tests
2. Set up the arbitrary/function generator using the following steps:
3. Set up the Oscilloscope so the square waveform of 5 division amplitude is
displayed.
Select menu Setting Operation
Function Square Square (front)
Frequency 2.00 MHz: AFG3011
10.00 MHz: AFG302xB,
AFG310x, AFG325x
Frequency/Period (front)
Amplitude Units Vpp TopMenu > Amplitude/Level Menu > -more- >
Units > Vpp
Amplitude 1.0 Vpp Amplitude/High (front)
Offset 0.0 V TopMenu > Offset/Low (front)
Channel 1 Output On On (front)
Oscilloscope
50 Ω BNC coaxial cable
CH1 Output
AFG3000 series
CH1 Input
