Removal and Installation Procedures
AFG3000 Series Arbitrary/Function Generators Service Manual 6-19
Power Supply
You will need a torque-limiting Torx T-15 screwdriver.
Removal. To remove the power supply module, refer to Figure 6-15 and follow
these steps:
1. Remove the fan using the procedures on page 6-18.
2. Disconnect the three cable connectors at J866, J862, and J900.
3. Remove the four screws attaching the power supply module and the insulator
to the rear sub-panel.

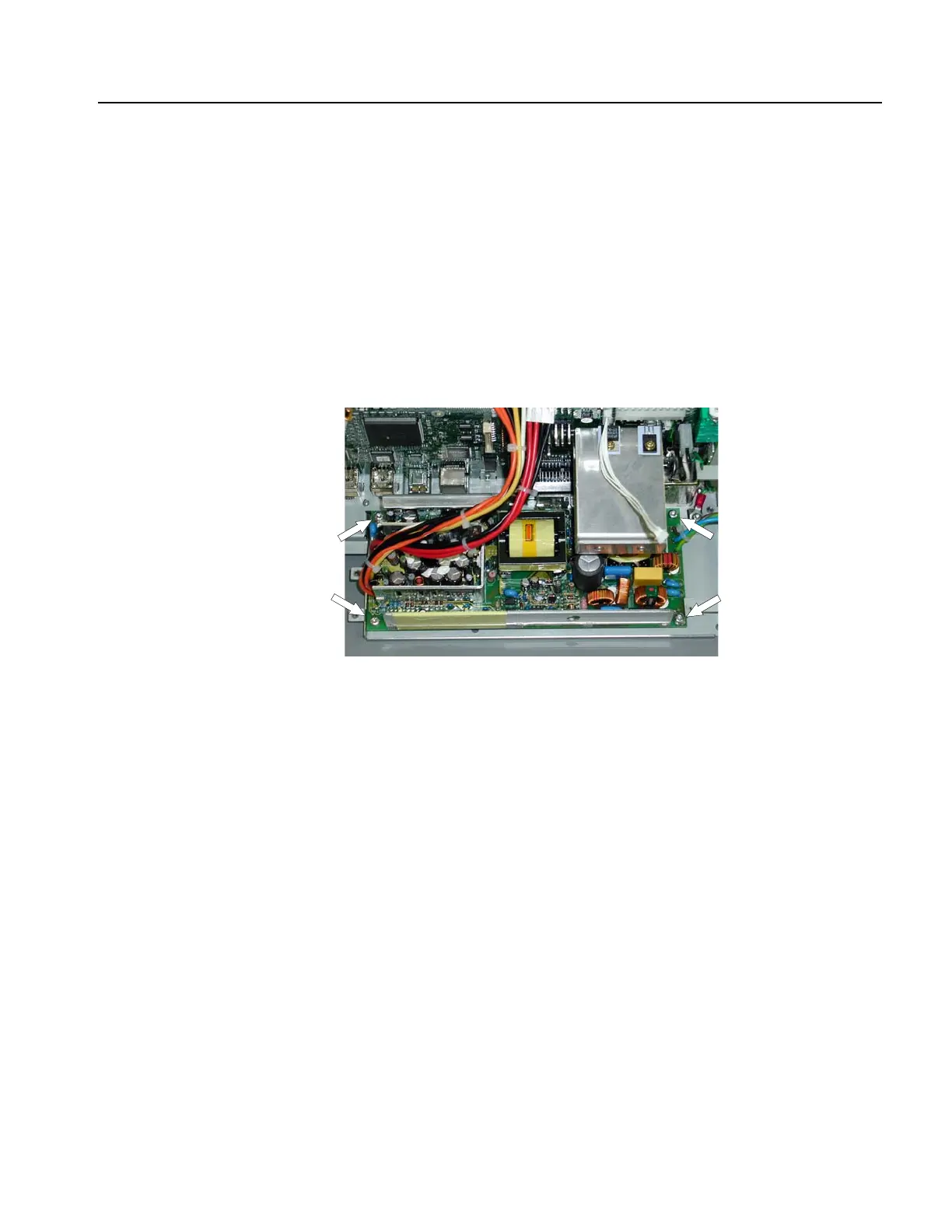

Figure 6-15: Power supply removal
installation. To install, reverse this procedure.
