Performance tests
4. Press the AWG fr
ont panel All Outputs Off button (or click All Outputs Off
on the Home screen) to disable the outputs (front panel light on).

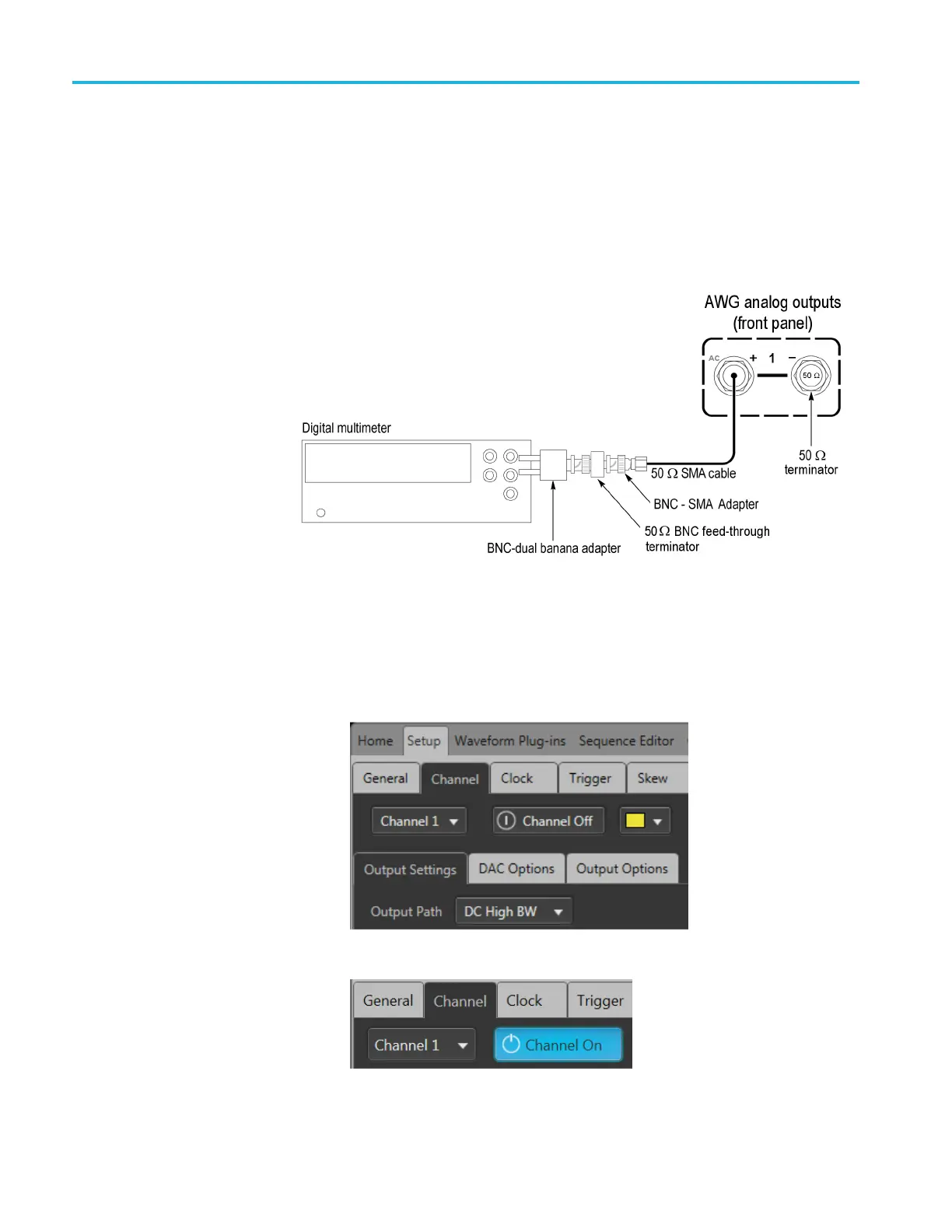

5. Connect the CH 1 ( +) connector from the AWG to the HI and LO inputs of the
digital multimeter. Use a 5 0 Ω SMA cable, a BNC-SMA adapter, a 50 Ω BNC
feed-through terminator, and a BNC dual banana adapter.
6. Termin
ate the CH 1 (–) connector on the AWG using a 50 Ω SMA terminator.
7. Press the AWG front panel All Outputs Off button (or click All Outputs Off
on the Home screen) to enable the outputs (front panel light off).
8. Click the Setup -> Channel tab and click the Output Settings tab.
a. Select Channel 1.
b. Set the Output Path to DC High BW.
c. Enable the Channel 1 output.
52 AWG5200 Series Technical Reference
