Performance tests
7. Press the AWG front panel All Outputs Off button (or click All Outputs Off
on the Home screen) to enable the outputs (front panel light off).

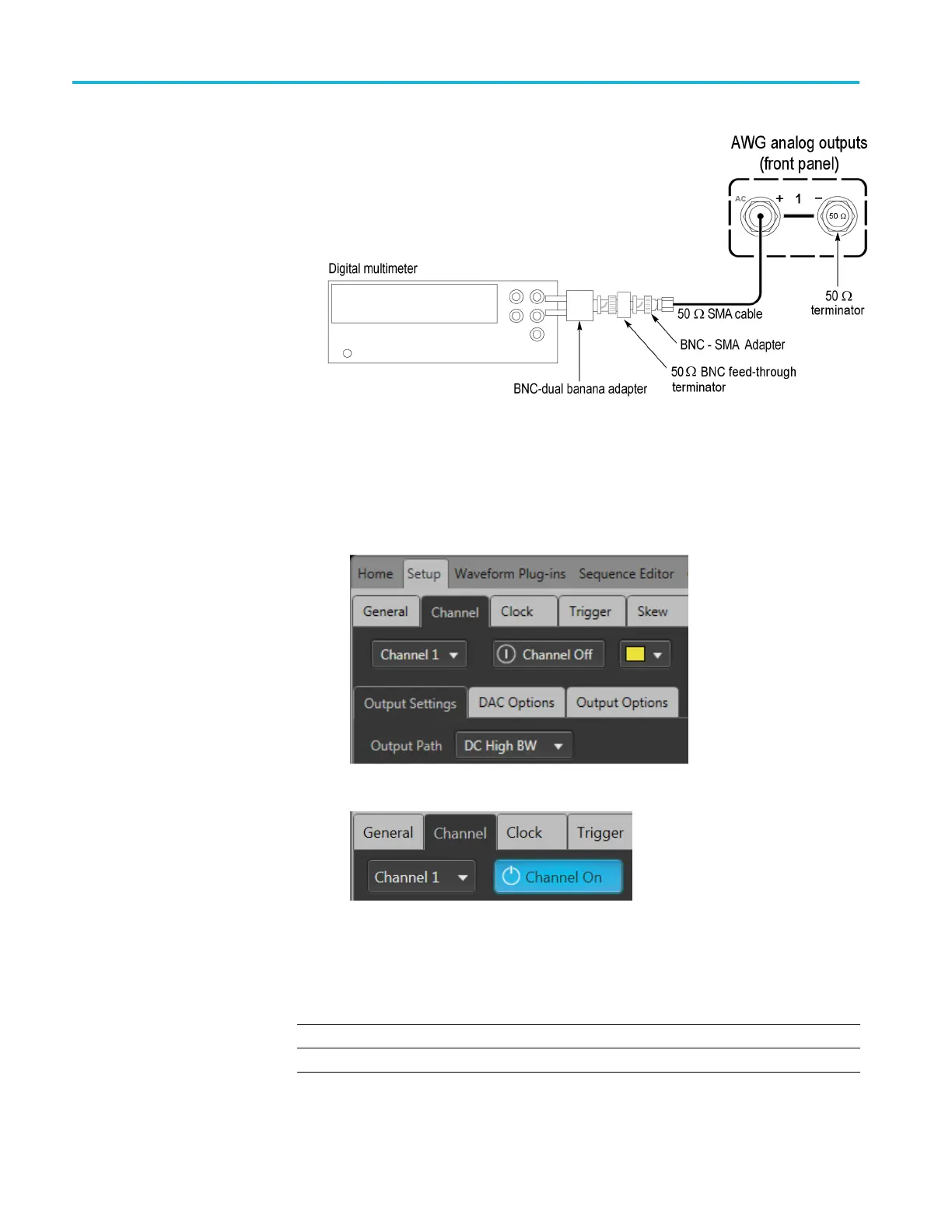

8. Click the Setup -> Channel tab and click the Output Settings tab.
a. Select Channel 1.
b. Set the Output Path to DC High BW.
c. Enable the Channel 1 output.
9. Set the Amplitude of the AWG as shown in the following table. (See
Table 38.)
Table 38: Analog amplitude accuracy (DC High BW output path)
Amplitude settings Accuracy lim its
25 mV
p-p
23.75 mV to 26.25 mV
100 mV
p-p
98 mV to 102 mV
46 AWG5200 Series Technical Reference
