Performance tests
10 MHz referen
ce frequency accuracy
Required equ ipment Prerequisites
Frequency counter
SMA female-to-BNC male adapter
50 Ω SMA cable
(See page 42, Prerequisites.)
1. Click the Reset to Default Setup button in the toolbar .

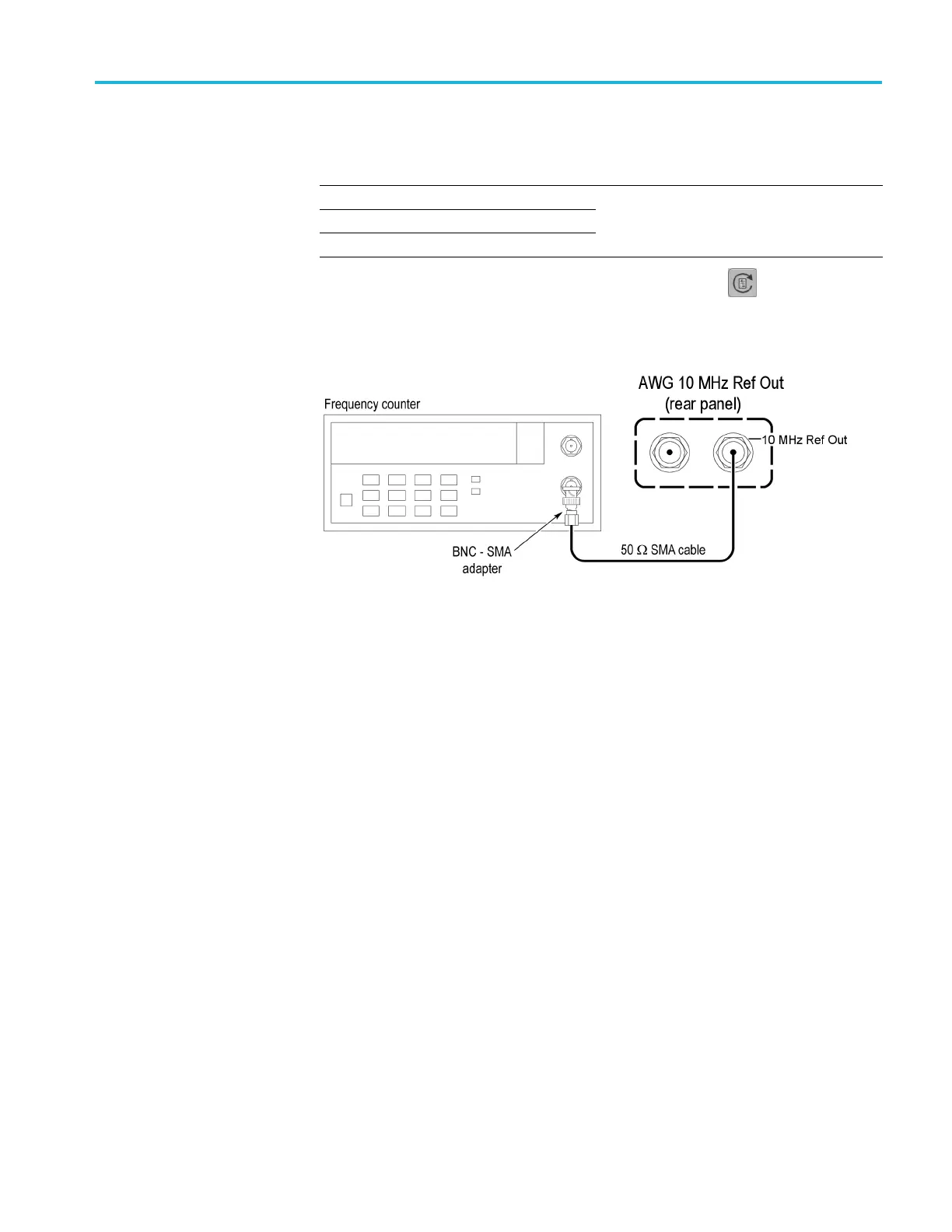

2. Connect the 10 MHz Reference Output on the rear of the AWG to the input of
the Frequency Counter. Use a 50 Ω SMA cable and a BNC-SMA adapter.
3. On the F
requency Counter, press the Meas and the Freq buttons.
4. Verify that the frequency counter reading falls within the range of
9.999
98 MHz to 10.00002 MHz.
5. Disconnect the test setup.
AWG5200 Series Technical Reference 63
