Trigger Setup
Choosing a Trigger Type
To select a trigger:

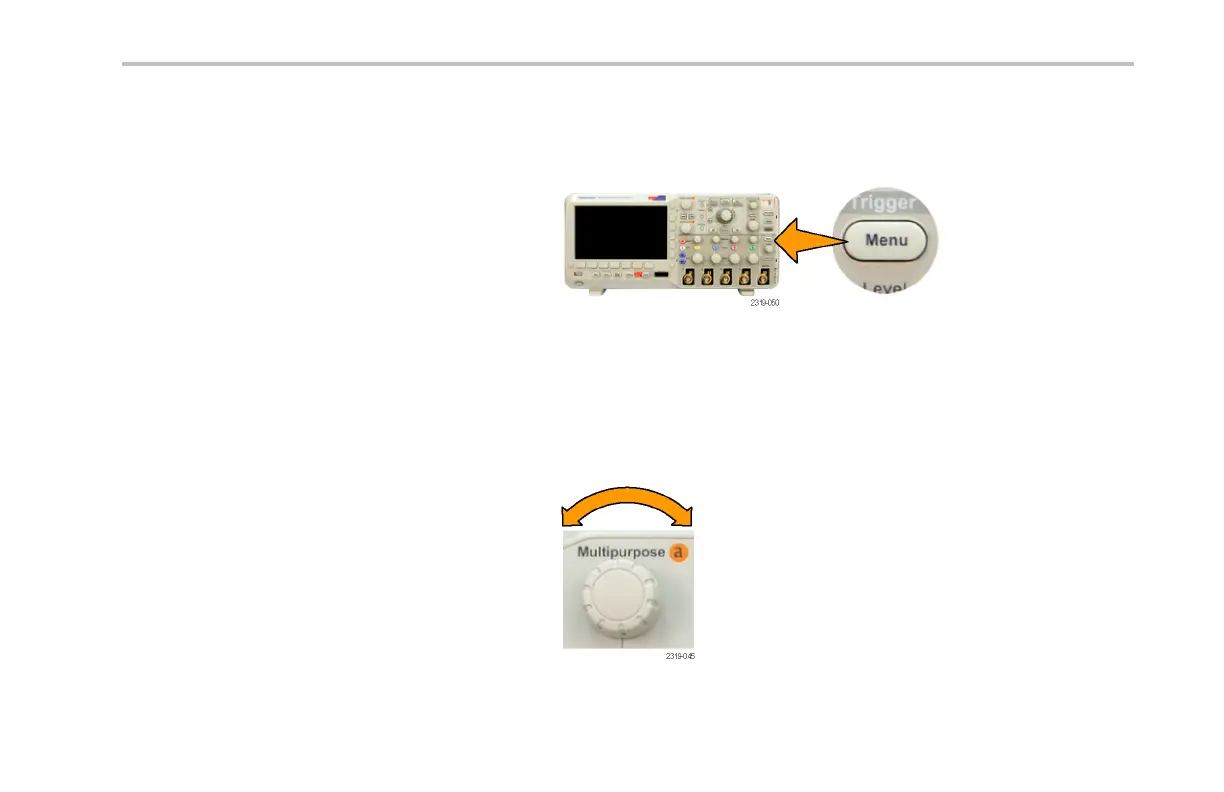

1. Push Trigger Menu.
2. Push Type to brin g up the list of Trigger Types.
NOTE. The bus trigger in the MSO2000 series
works on parallel buses e ven without an
application module. Using the bus trigger on
other buses requires use of the DPO2EMBD,
DPO2AUTO, or DPO2COMP application module.
3. Turn multipurpose knob a to select the desired
trigger type.
The trigger types are: Edge, Pulse Width,
Runt, Logic, Setup & Hold, Rise/Fall Time,
Video, and Bus.
DPO2000 and MSO2000 Series Oscilloscopes User Man ual 129
