Display Waveform Data

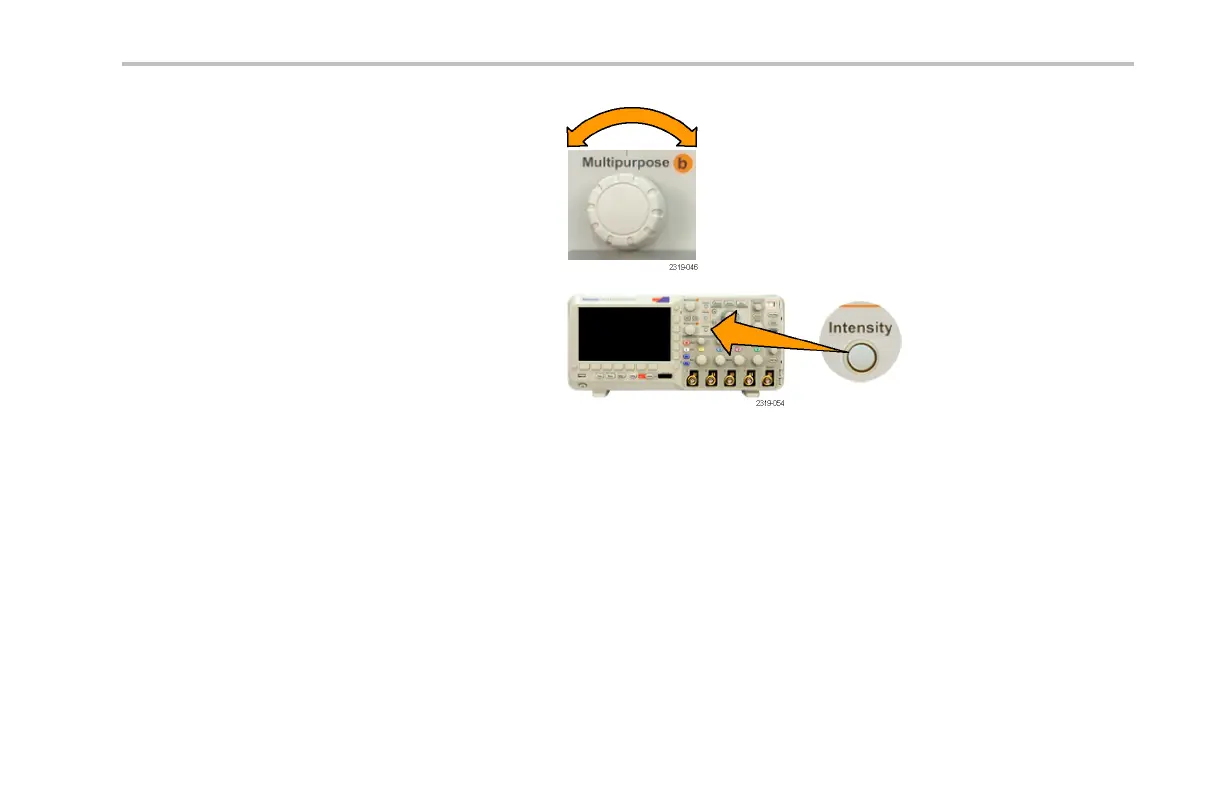

3. Turn multipurpose knob b to select the desired
intensity for the graticule.
4. Push Intensity again to clear the intensity
readout from the display.
Scaling and Positioning a Waveform
Use the horizontal controls to adjust the time base, a djust the trigger point, and to examine wavefo rm details more closely. You can
also use the Wave Inspector Pan and Zoom controls to adjust the display of waveforms. (See page 198, Using Wave Inspector
to Manage Long Record Length Waveforms.)
DPO2000 and MSO2000 Series Oscilloscopes User Man ual 155
