Analyze Waveform Data
Analyze Waveform Data
After having properly set up the acquisition, triggering, and display of your desired waveform, you can then analyze the results.
Select from features such as cursors, automatic measurements, and math.
Taking Automatic Measurements

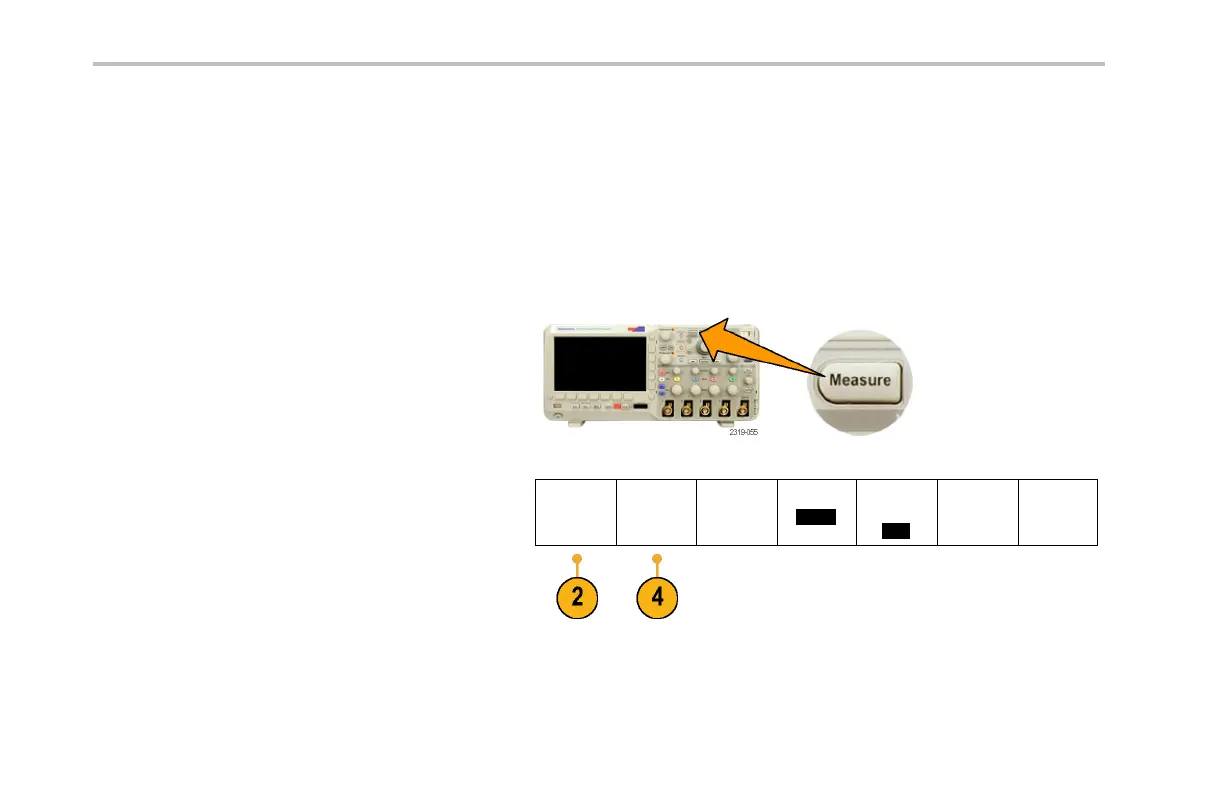

To take an automatic measurement:
1. Push Measure.
2. Push Add Measureme nt.
Add Mea-
surement
Remove
Measure-
ment
Indicators
Gating
Screen
High-Low
Method
Auto
Bring
Cursors on
Screen
Configure
Cursors
172 DPO2000 and MSO2000 S eries Oscilloscopes User Manual
