Display Waveform Data
Positioning, Scaling, and Grouping Digital Channels

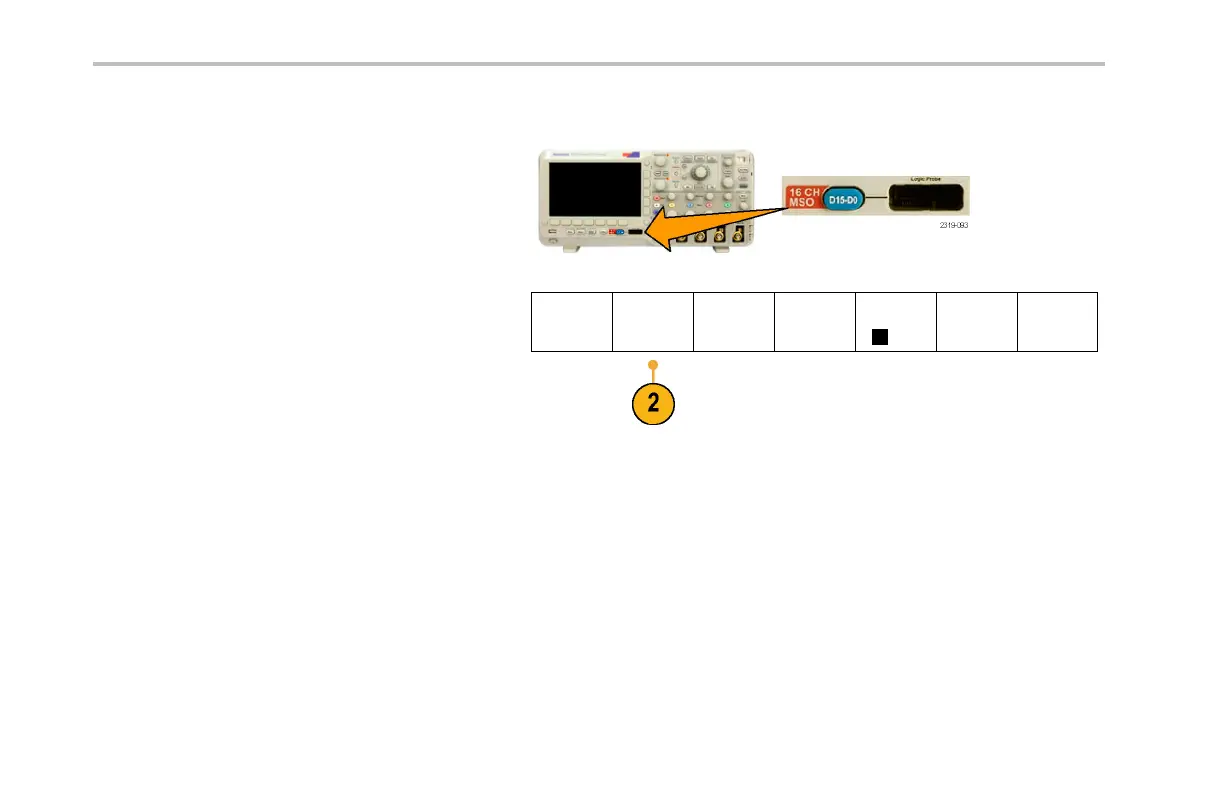

To display digital channels, fo llow these steps:
1. Push the front-panel D15–D0 butto n.
2. Push the lower-bezel D15–D0 On/Off menu
item.
D15–D0
On/Off
Thresholds Edit Labels Height
S |ML
164 DPO2000 and MSO2000 S eries Oscilloscopes User Manual
