Trigger Setup

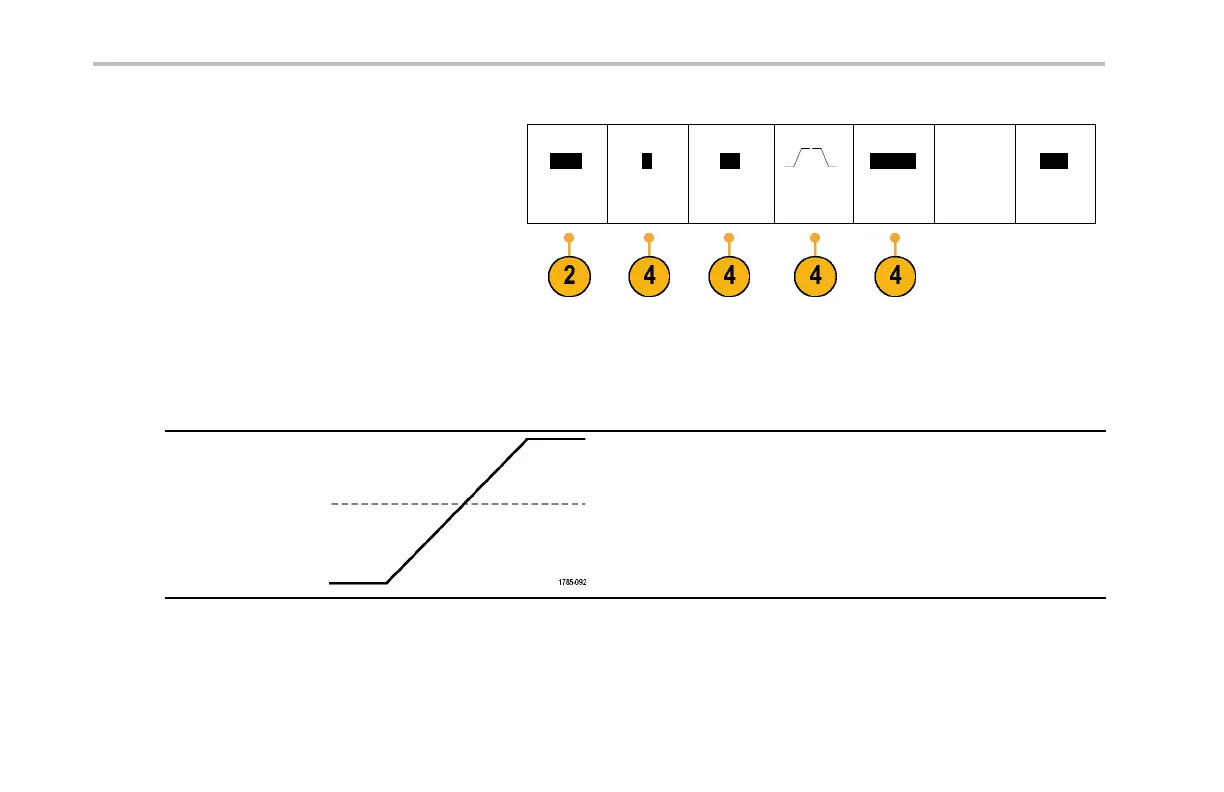

4. Complete the trigger setup using the
lower-bezel menu controls displayed for the
trigger typ e. The controls to set up the trigge r
vary depending on the trigger type.
Type
Edge
Source
1
Coupling
DC
Slope
Level
100 mV
Mode
Auto
&Holdoff
Selecting Triggers
Trigger type Trigger conditions
Edge
Trigger on a rising or falling edge, as defined by the slope
control. Coupling choices are DC, LF Reject, HF Reject,
and Noise Reject.
Edge triggers are the simplest and most commonly used
trigger type, with both analog an d digital signals. An
edge trigger event occurs when the trigger source passes
through a sp ecified voltage level in the specifie d direction.
130 DPO2000 and MSO2000 S eries Oscilloscopes User Manual
