Tektronix DPO2000 Series User Manual

Display Waveform Data

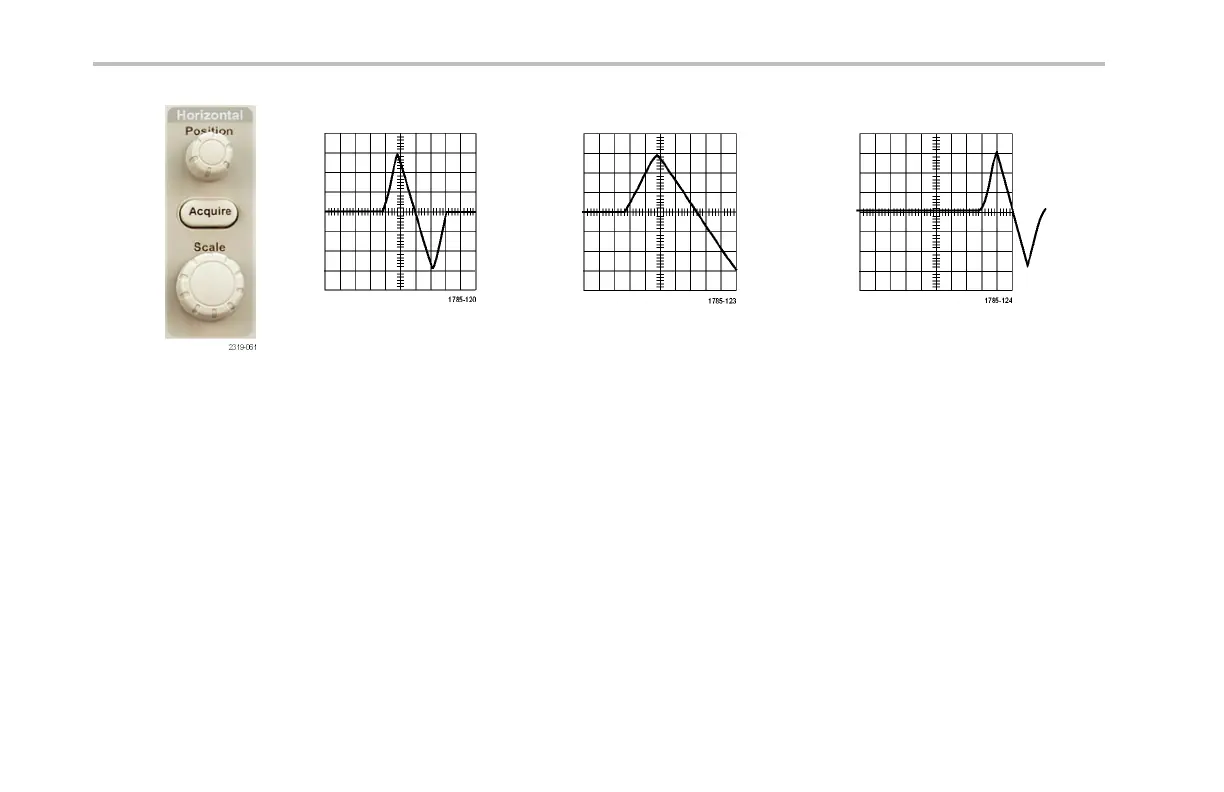

Original waveform Scaled hori zontally Positioned horizontally
Use th e vertical controls to select waveforms, adjust the waveform vertical position and scale, and set input param eters. Push a
channel menu button (1, 2, 3,or4) as m any times as need ed and the associated menu items to select, add, or remove a waveform .
156 DPO2000 and MSO2000 S eries Oscilloscopes User Manual
