Installation

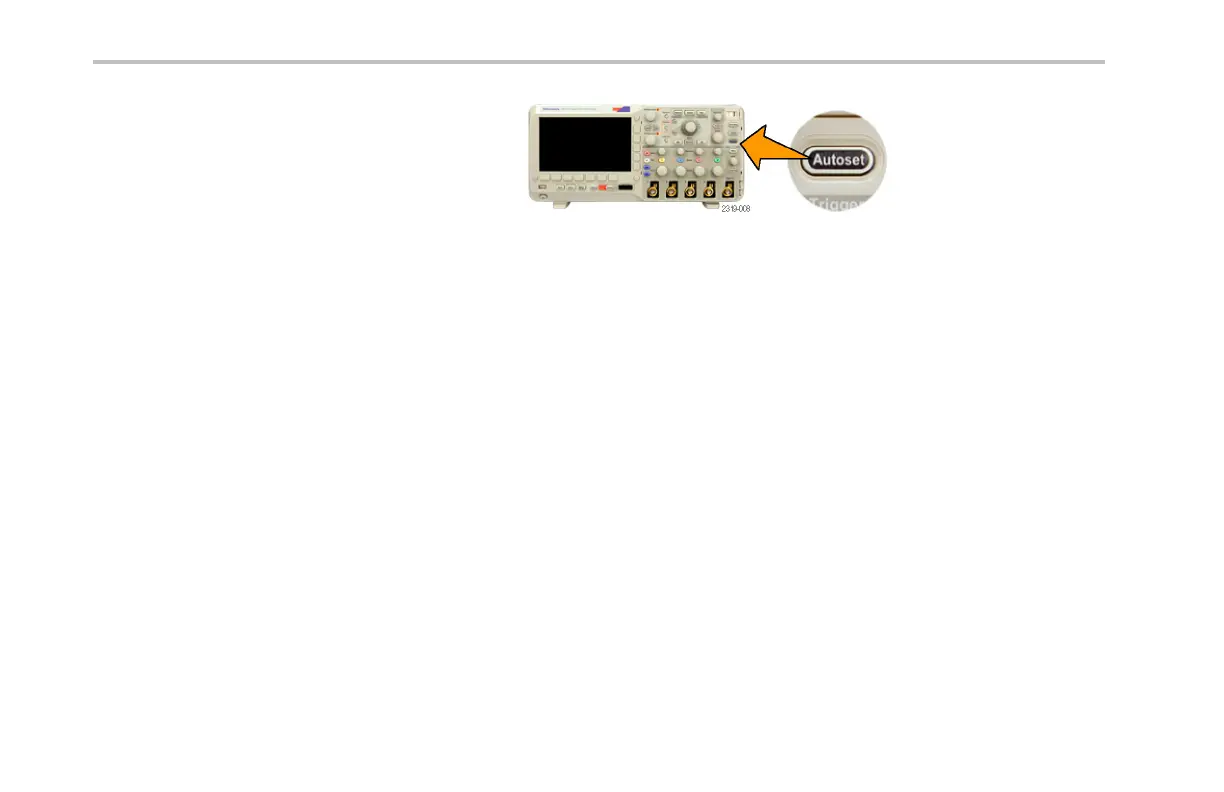

5. Push Autoset. The screen should now
display a square wave, app roximately 5 V
at 1 kHz.
NOTE. For best performance, it is
recommended that yo u set the Vertical scale
to1V.
If the signal appears but is misshapen,
perform the procedures for compensating
the probe. (See page 21.)
If no signal app ears, rerun the procedure .
If th is does not remedy the situation, have
the oscilloscope serviced by qualified
service p ersonnel.
20 DPO2000 and MSO2000 Series Oscilloscopes User Manual
