Tektronix DPO2000 Series User Manual

Getting Acquainted with the Oscilloscope
Using Other Controls

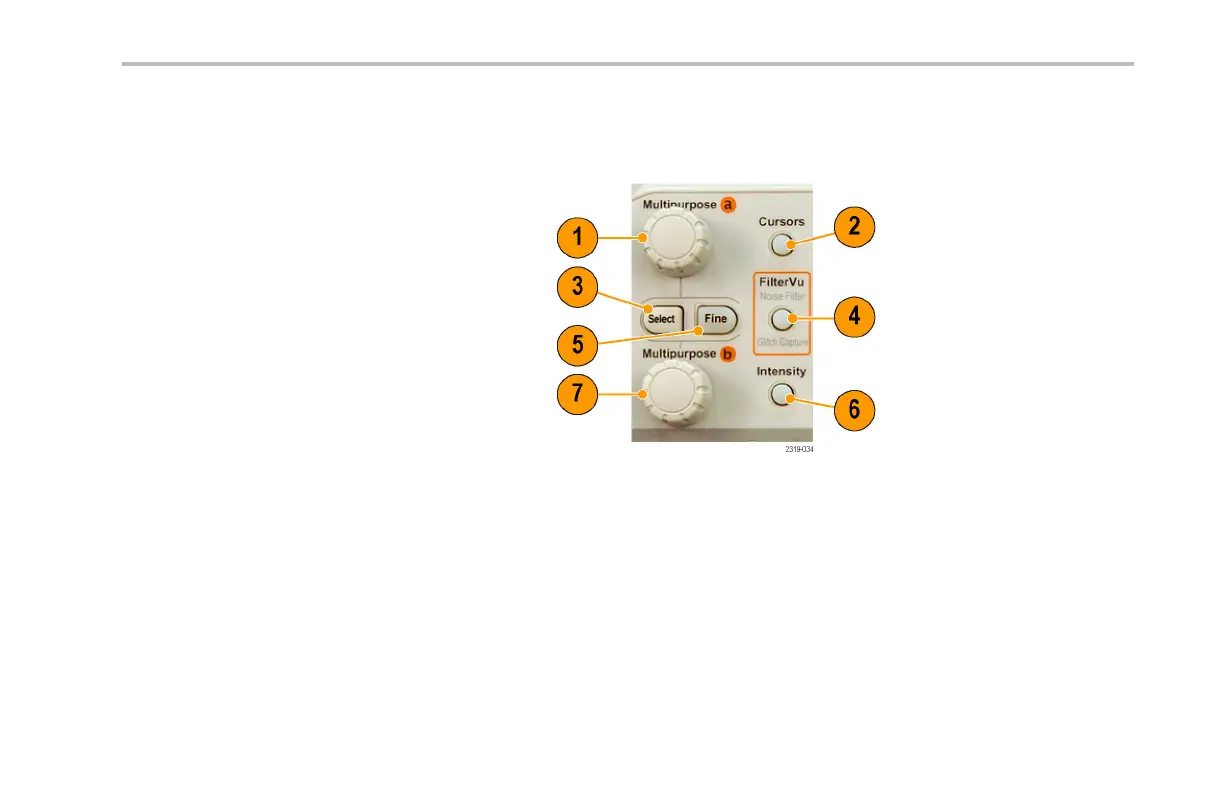

These buttons and knobs control w avef orms, cursors, and other data input.
1. Turn the upper multipurpose knob a,
when activated, to move a cursor, to set
a numerica l parameter value fo r a menu
item, or to se lect from a pop-out list of
choices. Push the Fine button to toggle
between coa rse and fine adjustment.
Screen icons tell you when a or b are
active.
2. Cursors.Pushoncetoactivatethetwo
vertical cursors. Push again to turn on the
two ve rtical and two horizontal cursors.
Push ag ain to turn off all cursors.
When the cursors are on, you c an turn
the multipurpose knobs to control their
position.
DPO2000 and MSO2000 Series Oscilloscopes User Man ual 55
