Tektronix DPO2000 Series User Manual

Getting Acquainted with the Oscilloscope
6. The FilterVu indicator shows if th e variable
low pass filter is active.

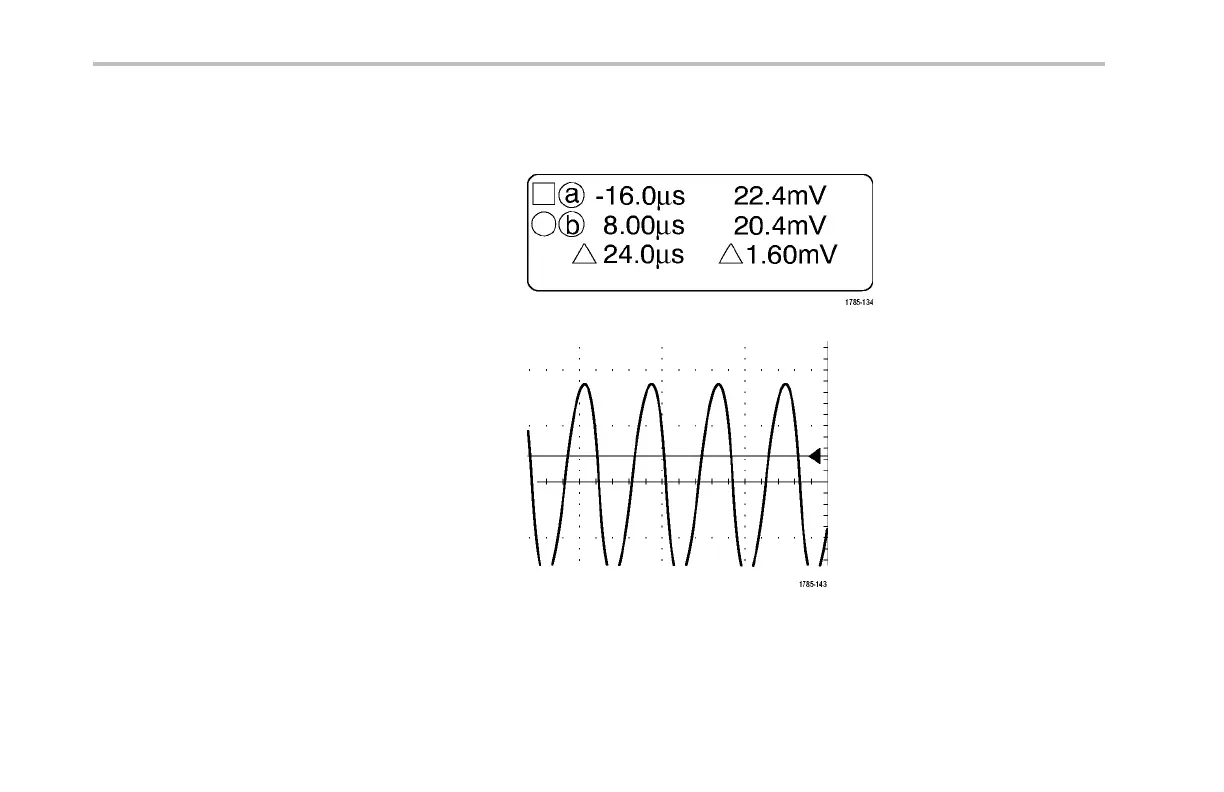

7. The cursor readout shows time, amplitude,
and delta (Δ) values for each c ursor.
For serial b uses, the readout shows the
decoded values.
8. Thetriggerleveliconshowsthetrigger
level on the wavef orm. The icon color
corresponds to the trigger source color.
66 DPO2000 and MSO2000 Series Oscilloscopes User Manual
