Tektronix DPO2000 Series User Manual

Acquire the Signal

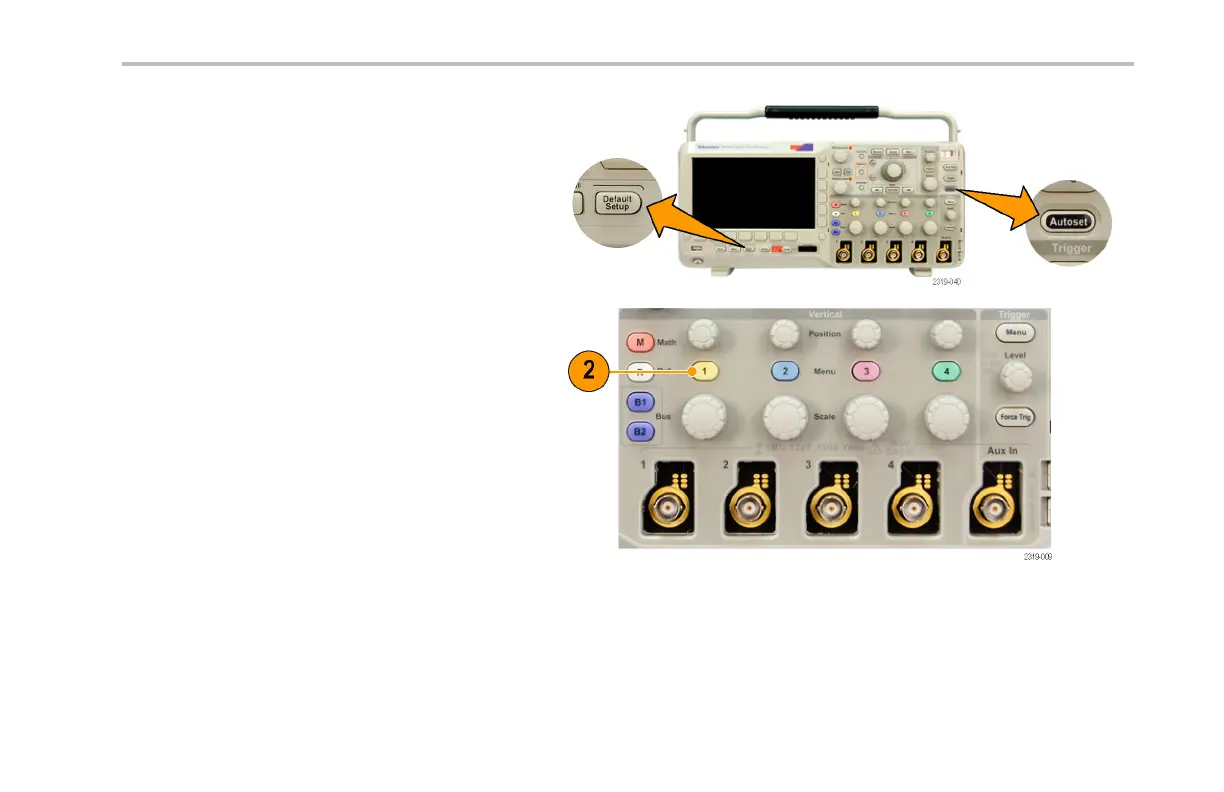

2. Push Default Setup.
NOTE. If you are using a probe that does not
supply probe encoding, set the attenuation
(probe factor) on the oscilloscope vertical menu
to match the probe. The default attenuation for
the o scilloscope is 10X and is set in the Probe
Setup lower-bezel menu of any analog channel.
3. Select the input channel by pushing the
front-panel but tons.
4. Push Autoset.
DPO2000 and MSO2000 Series Oscilloscopes User Man ual 75
