Tektronix DSA70000D Series User Manual

Pinpoint trigge
rs

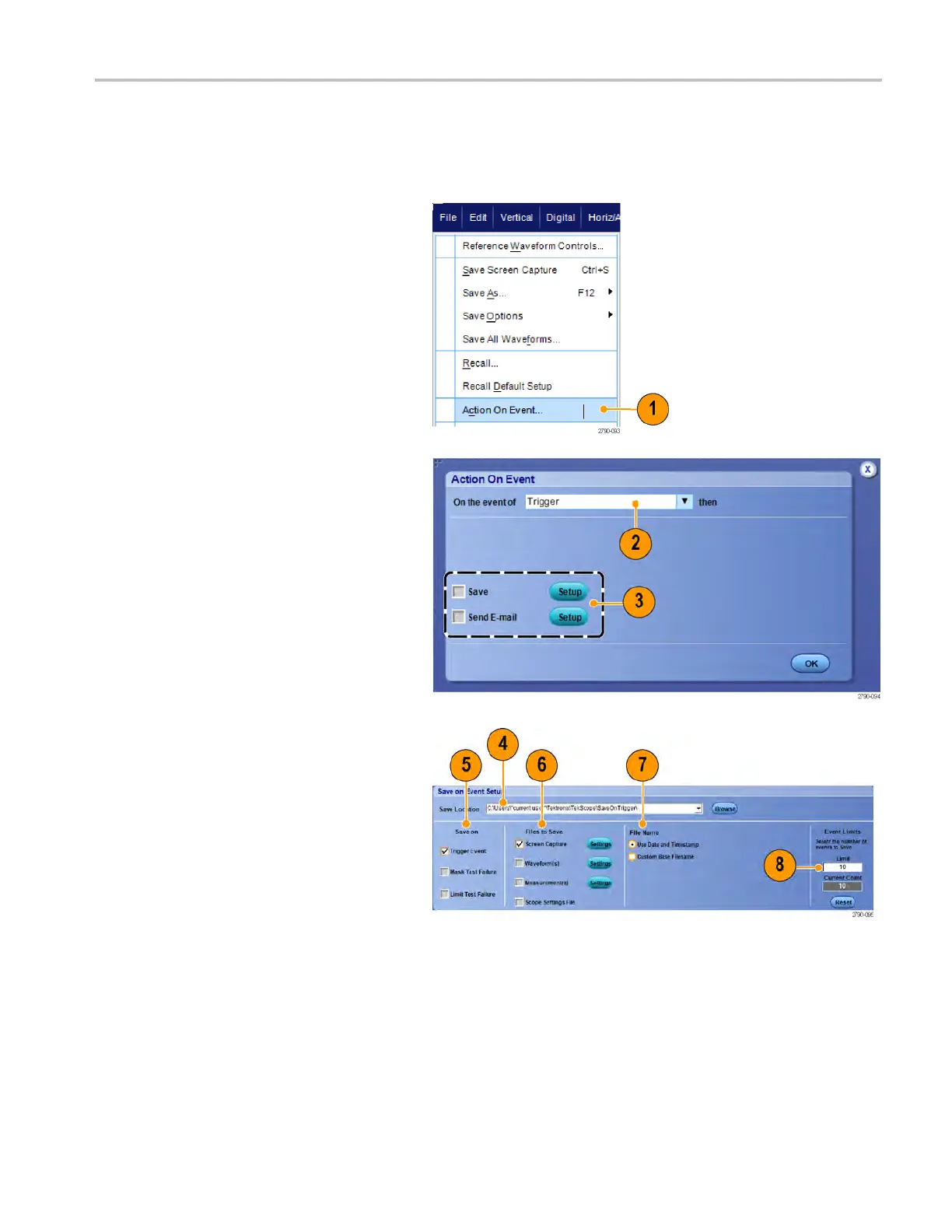

SettingupActiononEvent
Action on Event allows configure the oscilloscope to save a variety of fileswhenadefined event takes place, such as a
trigger events, mask test failures, and limit test failures.
1. Select F ile > A ction on Event.
2. Select the event to use.
3. Select the action to take when the event
occurs. Select Save, Send E-mail, or
both.
Use the Setup button (next to Save) to
display the Save on Event Setup display
screen.
Use the Setup button (next to Send E-mail)
to display the Send E-mail Setup display
screen. (S ee page 85, Setting up E-Mail on
Event.)
4. Enter the location to save the files.
5. Select the event that initiates a save.
6. Select what type of filestosaveonthe
event.
7. Set the file naming convention to u se.
8. Set the number of events to save.
MSO/DPO70000DX, MSO/DPO70000C, DP O7000C, and MS O/DPO5000 Series U ser M anual 83

Tektronix DSA70000D Series Specifications

General

Channels	up to 4
Memory Depth	up to 1 Gpts
Vertical Sensitivity	1 mV/div to 1 V/div
Input Coupling	AC, DC, GND
Sample Rate	up to 100 GS/s
Input Impedance	50 Ω
Trigger Types	Edge, Runt, Timeout, Setup/Hold
Display	12.1-inch LCD
Vertical Resolution	8 bits
Interface	GPIB, USB, Ethernet
