Saving and recal
ling information
Quick tip
You can sa ve several different file types but you can only recall setup (*.set) files and waveform (*.wfm) files.
Saving digital waveforms
On MSO Series instruments, you can save digital waveforms in a .csv format file.

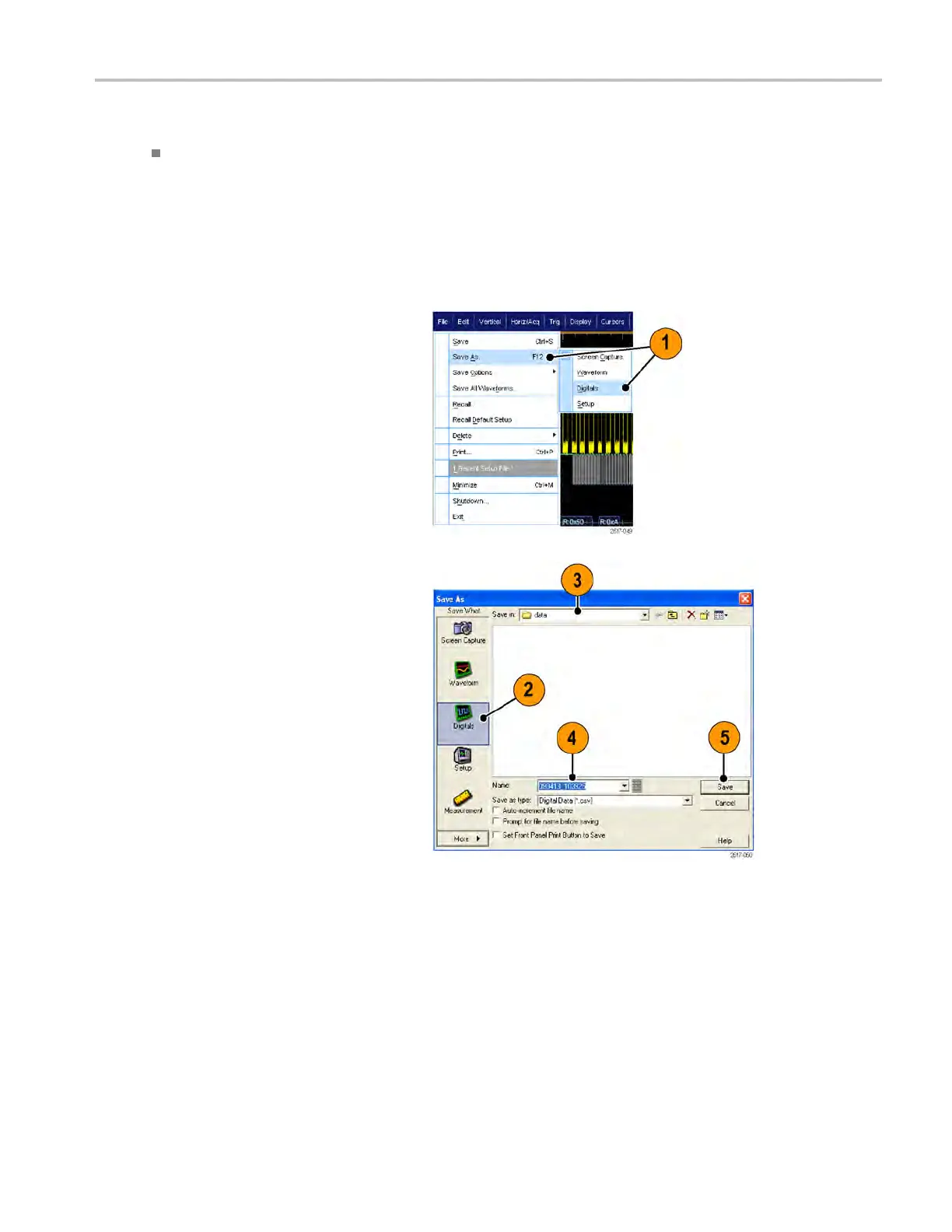

1. To save digi
tal waveforms, select File >
Save or Save As > Digitals.
2. Click Digitals.
3. You c an only save digital waveforms as
a .csv fil
e in a Windows directory. To
save as a .csv file, select the location
where you want to save the waveform.
4. Type in a file name, or use the default.
5. Click Save.
MSO/DPO70000DX, MSO/DPO70000C, DP O7000C, and MS O/DPO5000 Series U ser M anual 153
